Logic Gates and Logic Circuits

Use the logic gate symbols

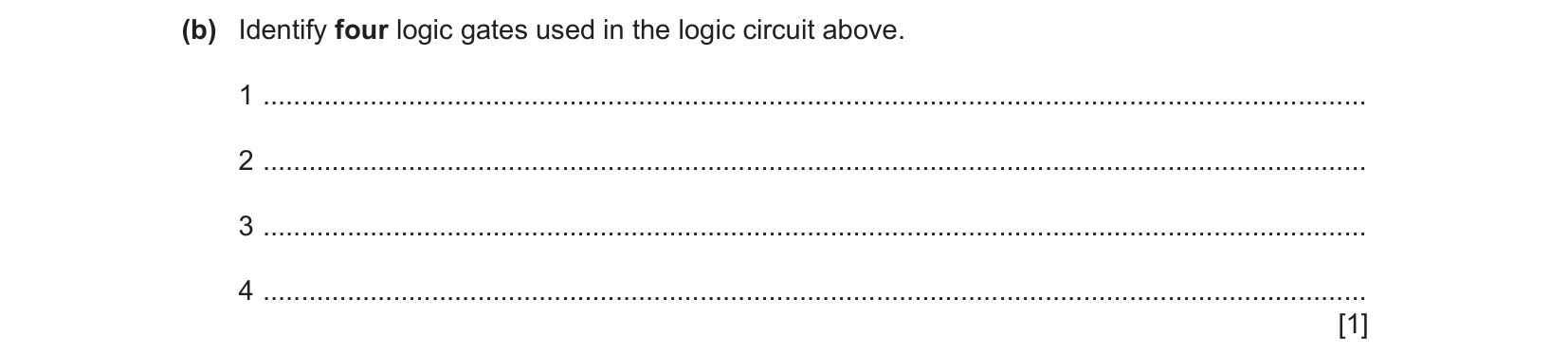

9608_s21_qp_13_sc_2.b

9608_s21_qp_13_sc_2.b Question Image

Answer

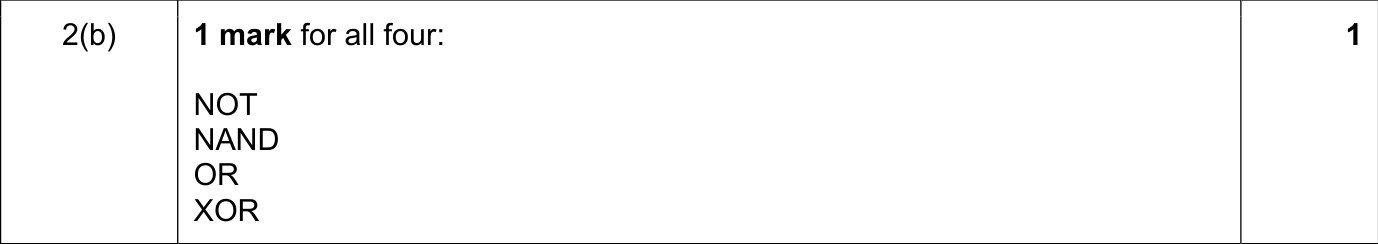

9608_s21_qp_13_sc_2.b Mark Scheme Image

9608_s21_qp_12_sc_1.b

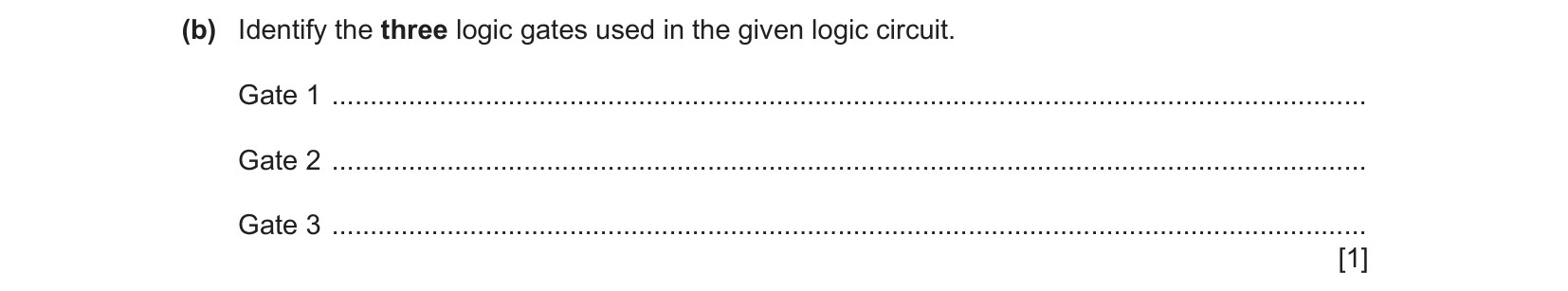

9608_s21_qp_12_sc_1.b Question Image

Answer

9608_s21_qp_12_sc_1.b Mark Scheme Image

9608_s21_qp_11_sc_4.b

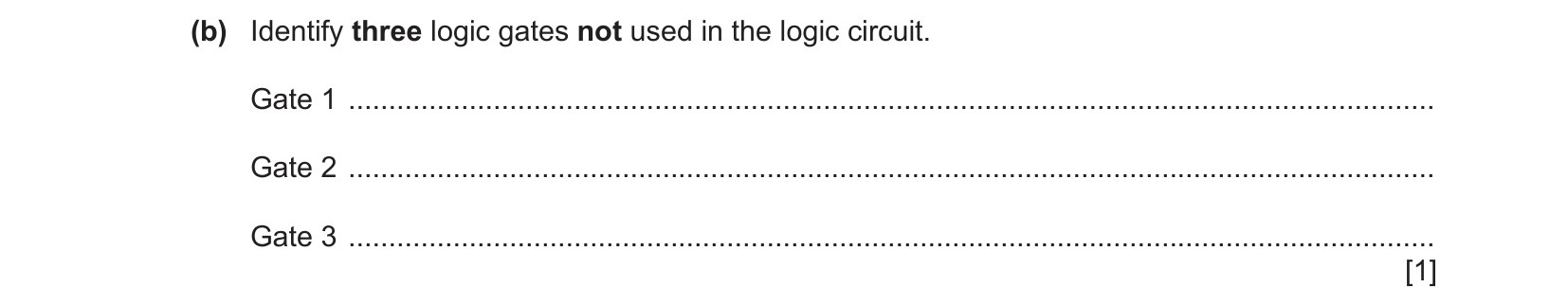

9608_s21_qp_11_sc_4.b Question Image

Answer

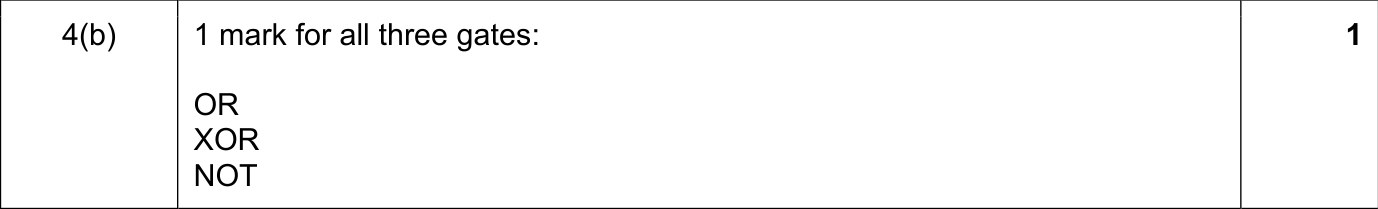

9608_s21_qp_11_sc_4.b Mark Scheme Image

9608_s20_qp_13_sc_3.a

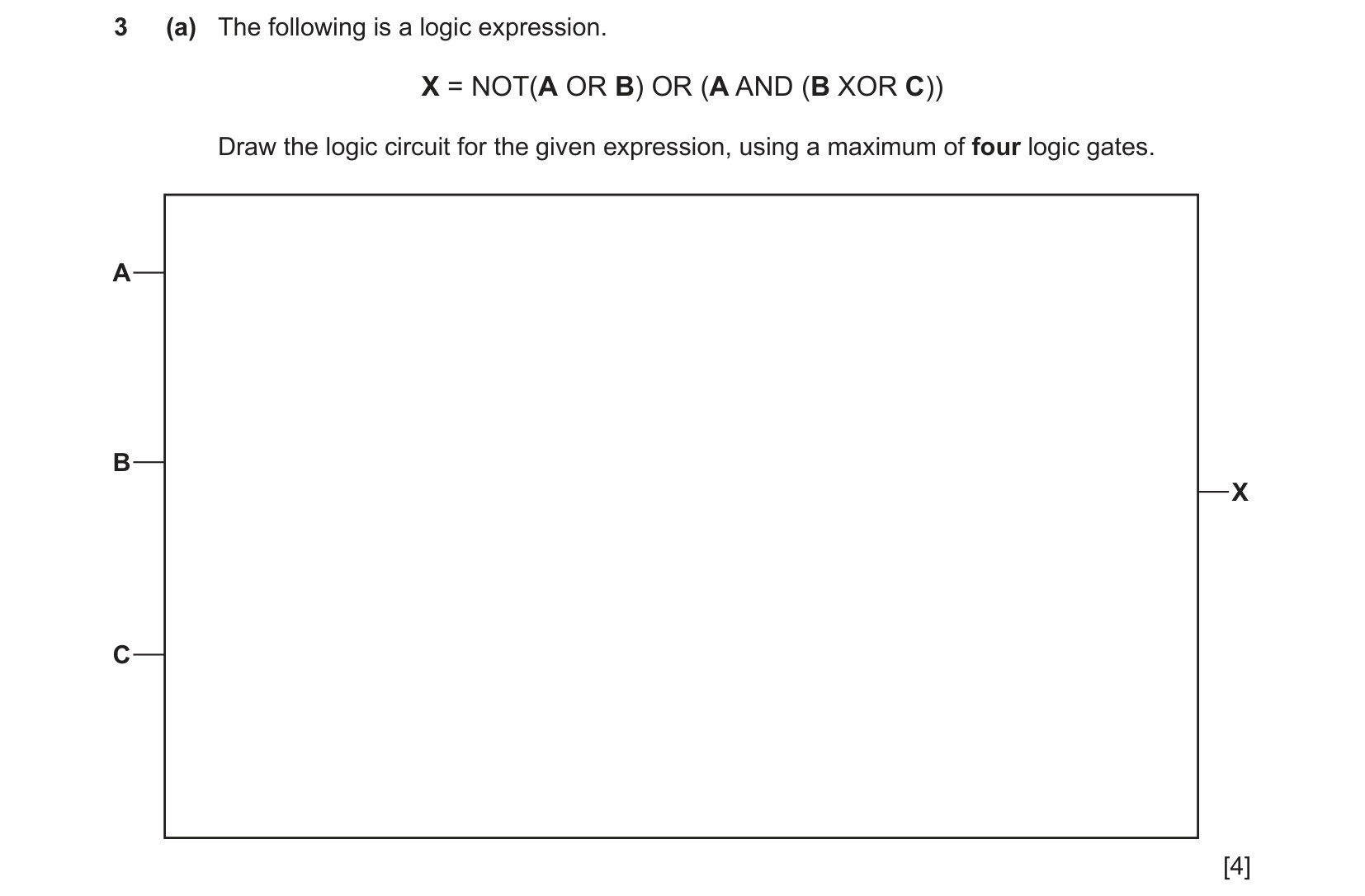

9608_s20_qp_13_sc_3.a Question Image

Answer

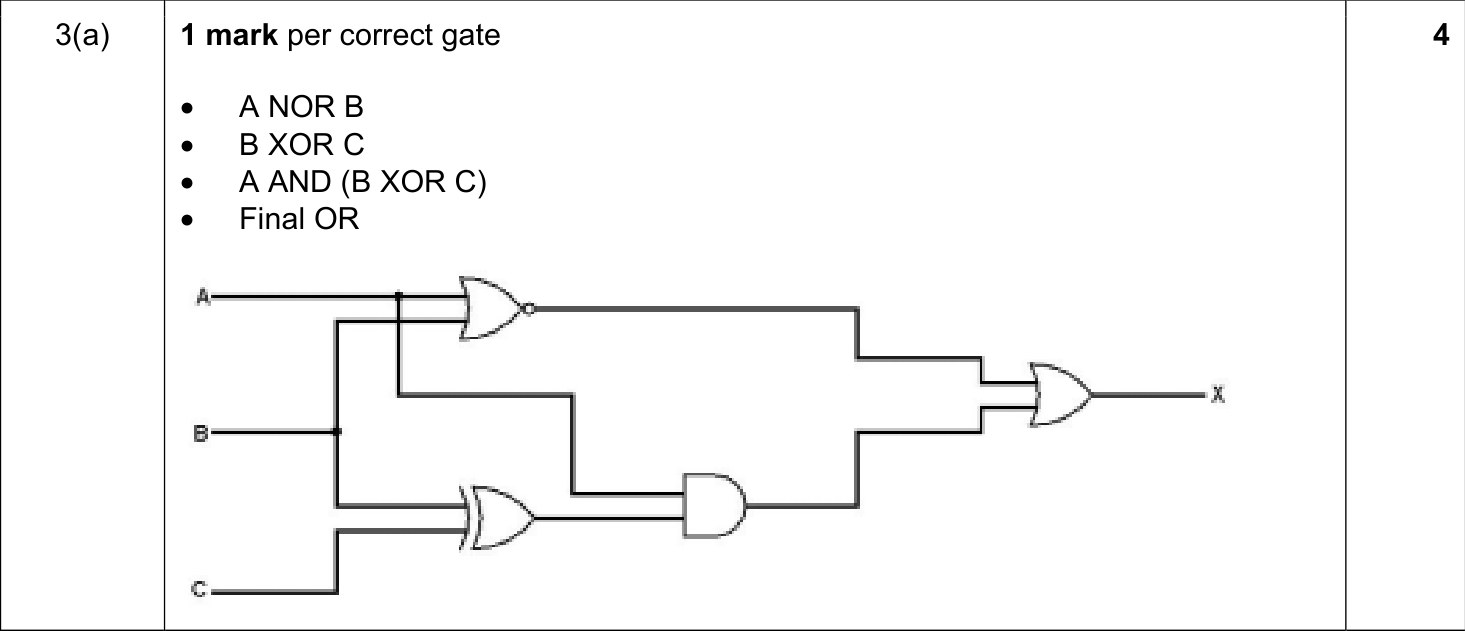

9608_s20_qp_13_sc_3.a Mark Scheme Image

9608_s20_qp_13_sc_3.c

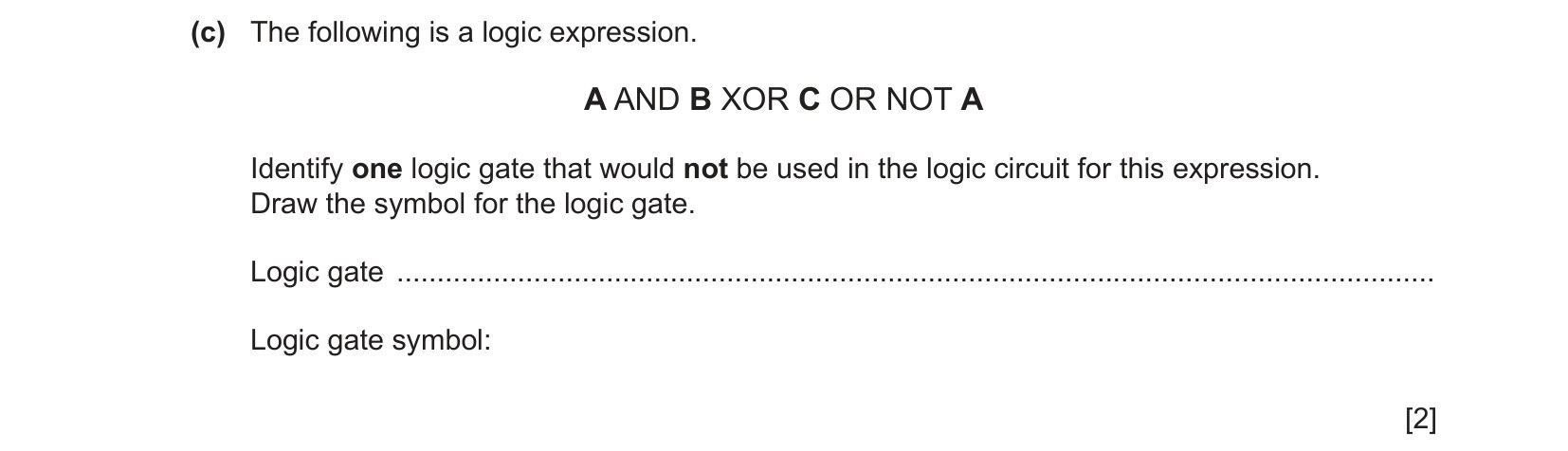

9608_s20_qp_13_sc_3.c Question Image

Answer

9608_s20_qp_13_sc_3.c Mark Scheme Image

9608_s20_qp_12_sc_3

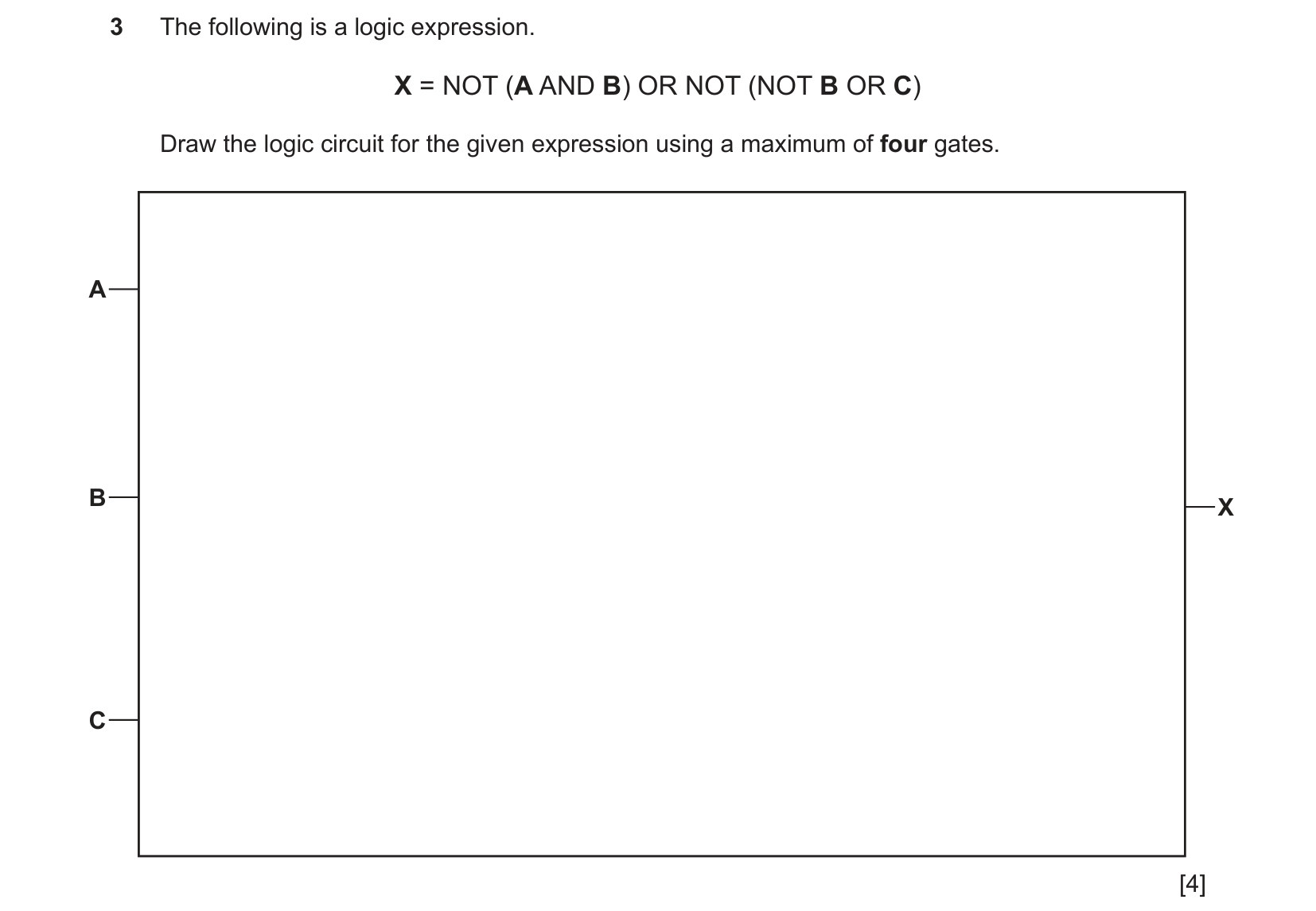

9608_s20_qp_12_sc_3 Question Image

Answer

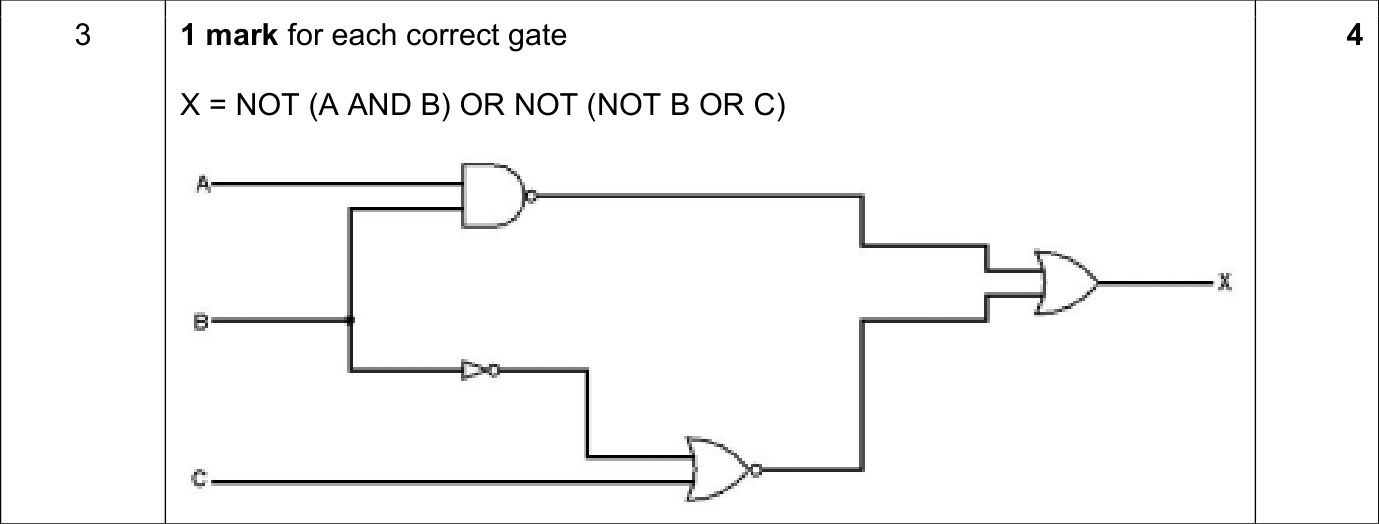

9608_s20_qp_12_sc_3 Mark Scheme Image

9608_s20_qp_11_sc_5.b

9608_s20_qp_11_sc_5.b Question Image

Answer

9608_s20_qp_11_sc_5.b Mark Scheme Image

9608_w19_qp_13_sc_5.a

9608_w19_qp_13_sc_5.a Question Image

Answer

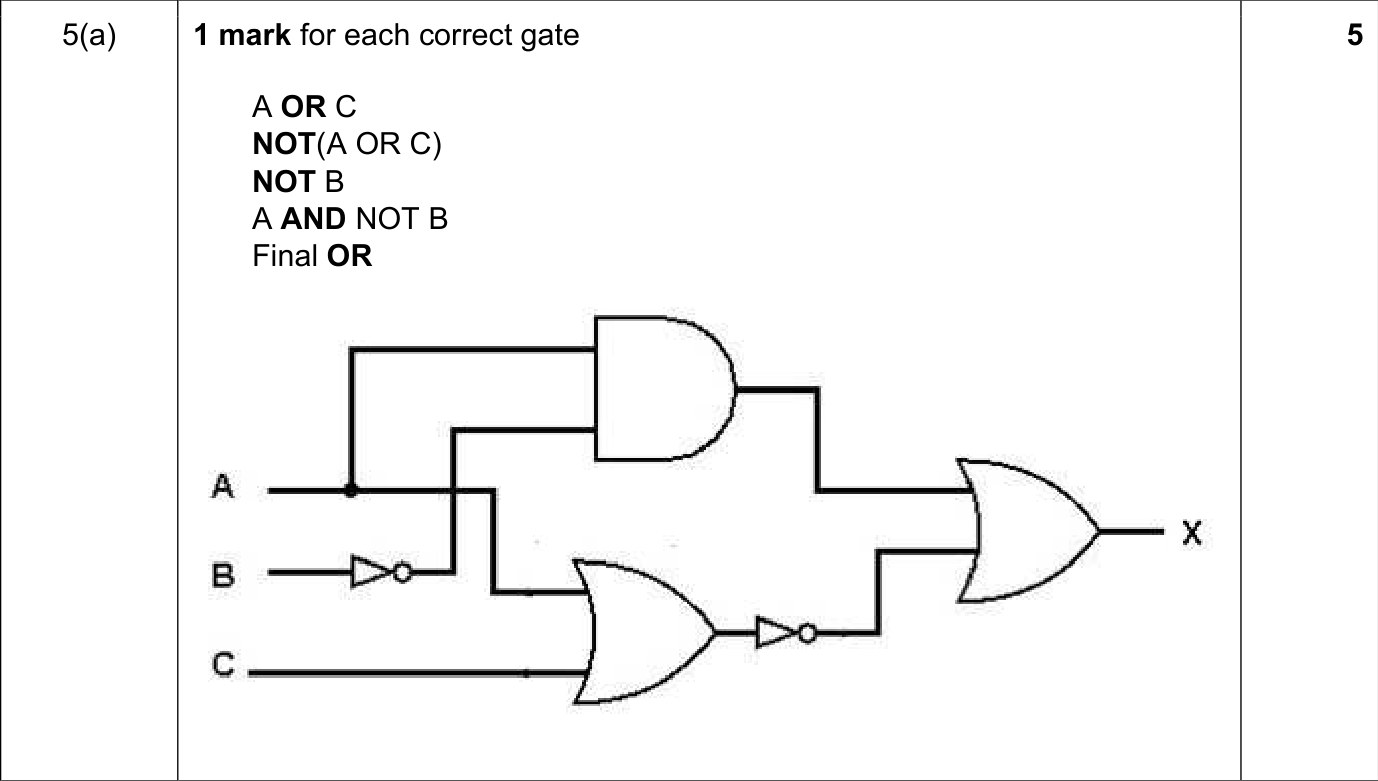

9608_w19_qp_13_sc_5.a Mark Scheme Image

9608_w19_qp_11_sc_3.a

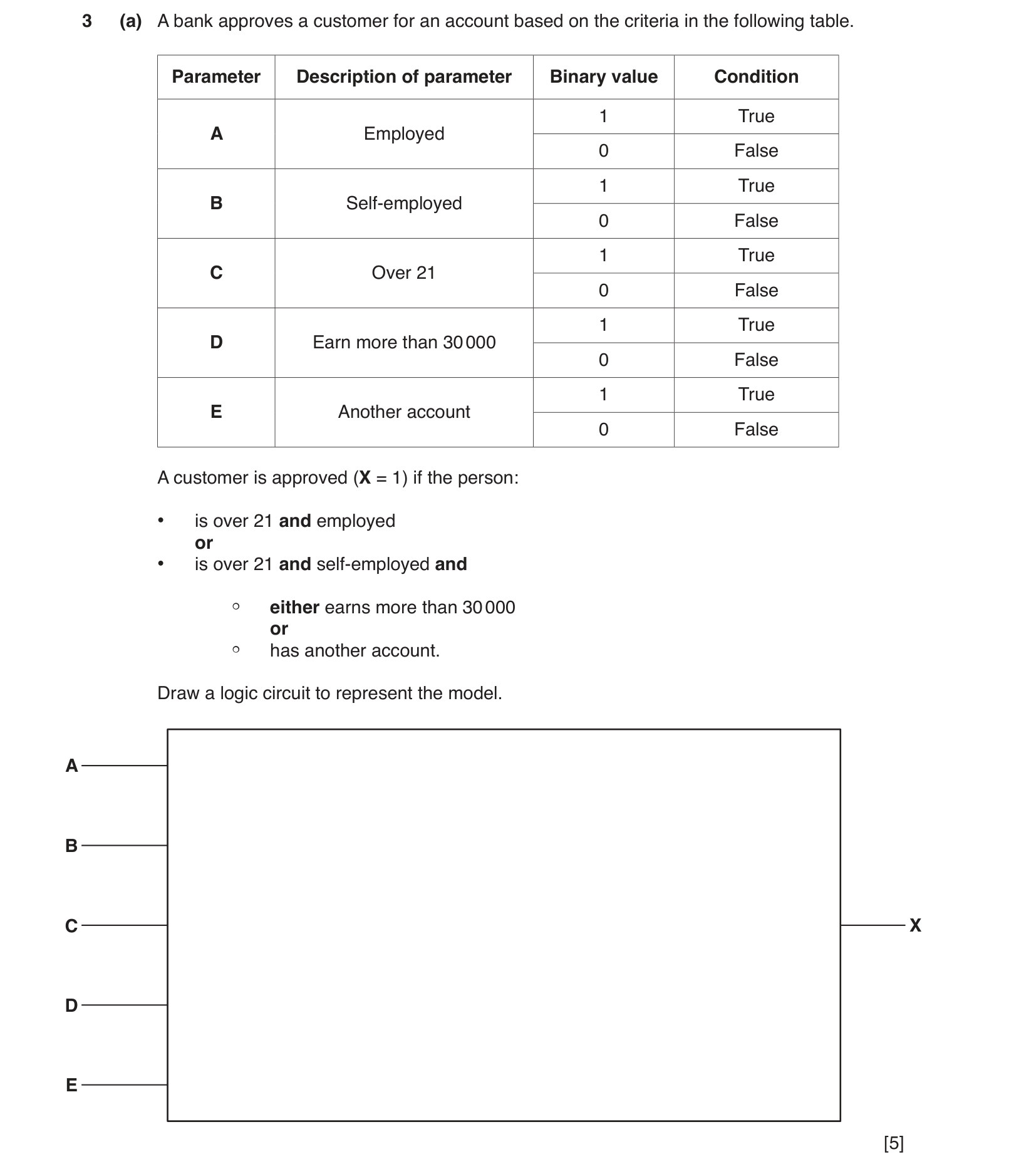

9608_w19_qp_11_sc_3.a Question Image

Answer

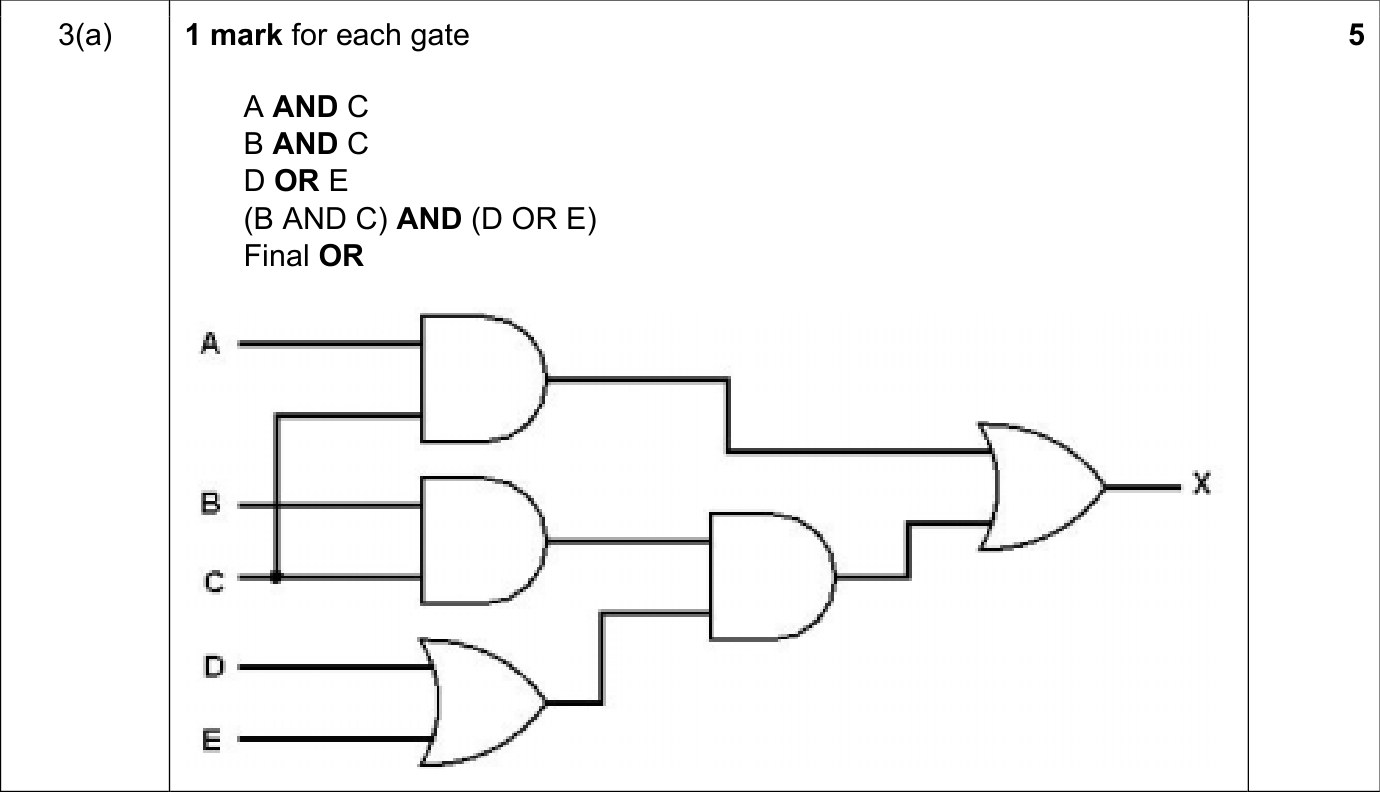

9608_w19_qp_11_sc_3.a Mark Scheme Image

9608_s19_qp_12_sc_6.a

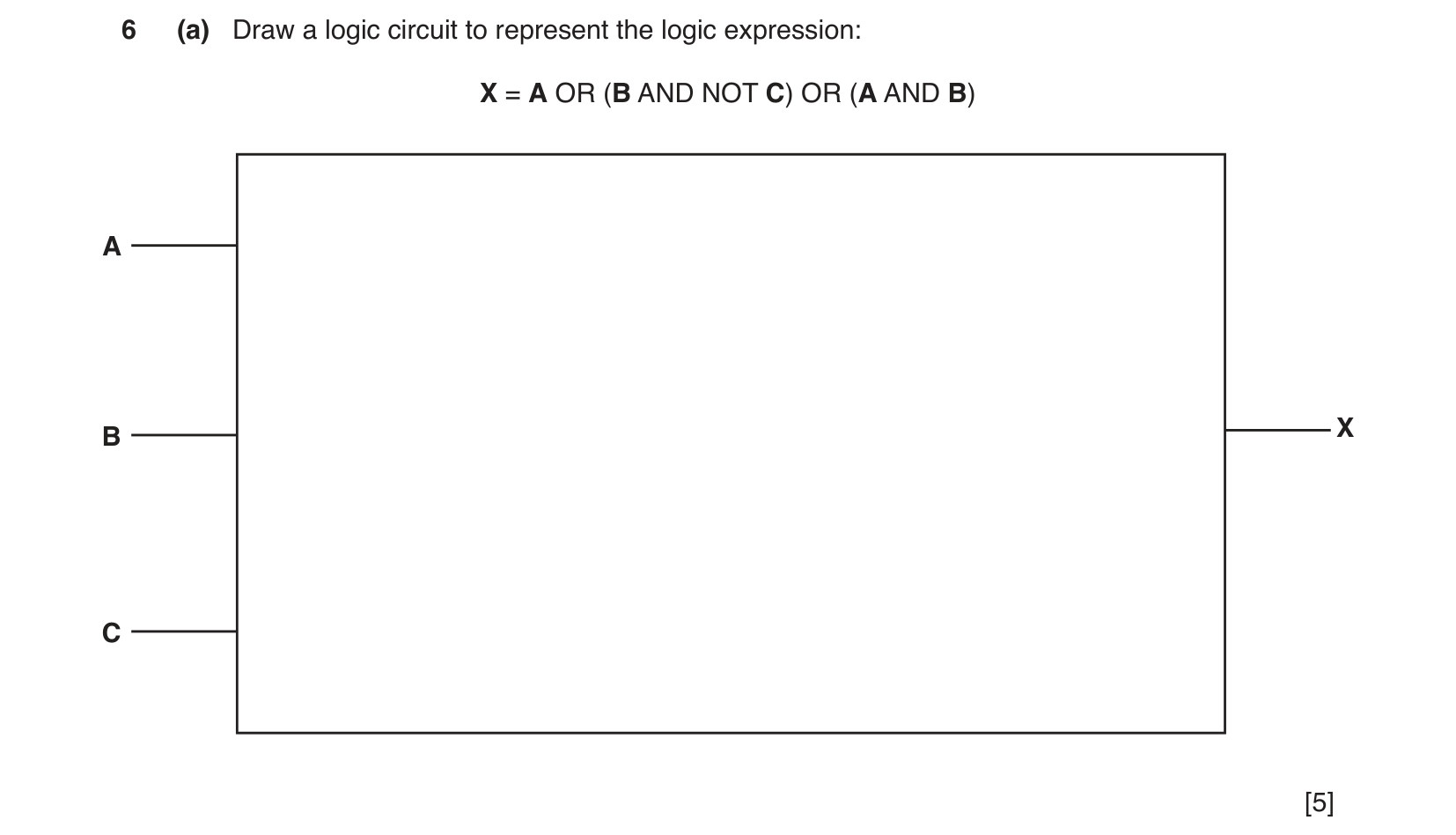

9608_s19_qp_12_sc_6.a Question Image

Answer

9608_s19_qp_12_sc_6.a Mark Scheme Image

9608_s15_qp_13_sc_6.a

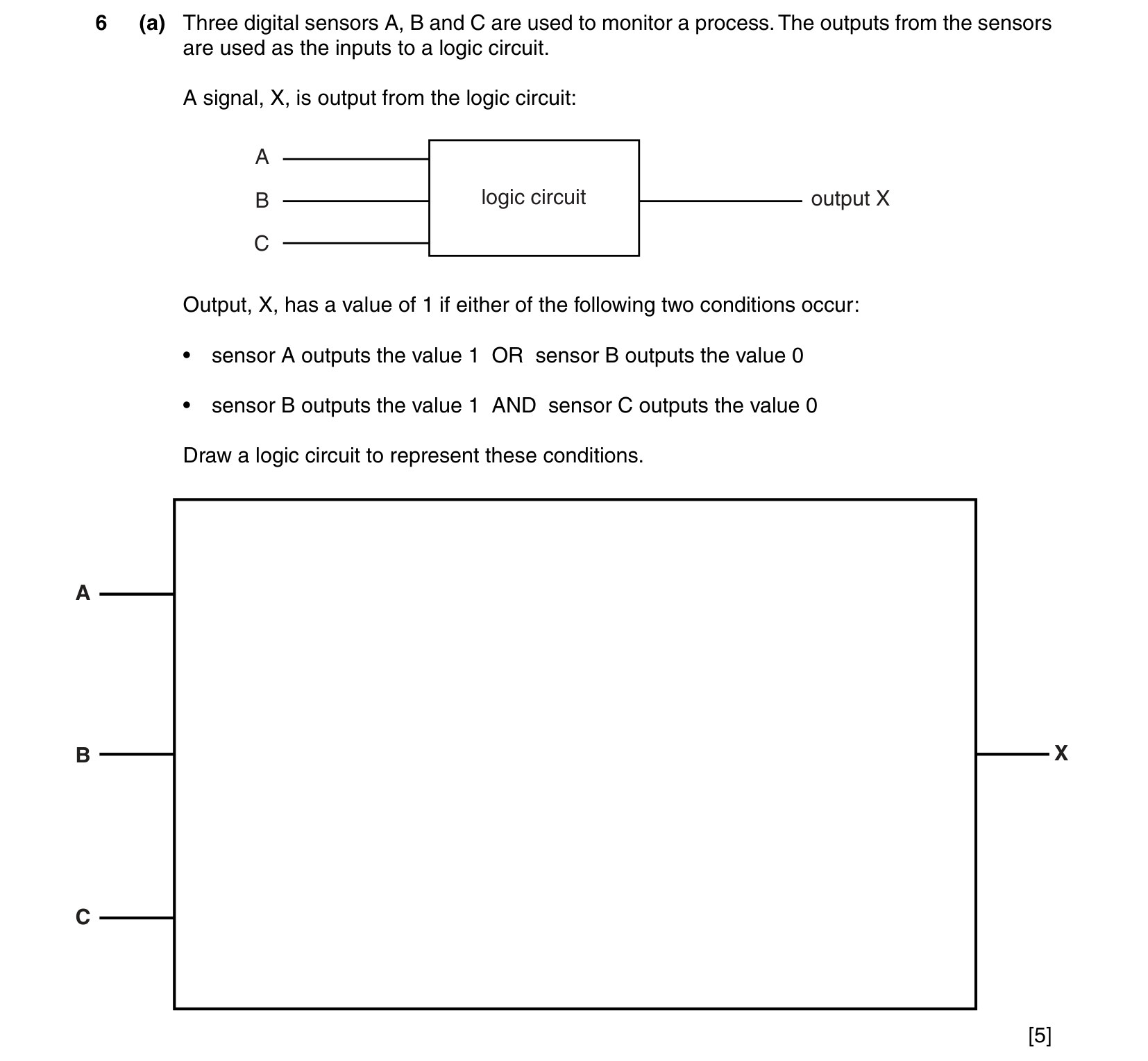

9608_s15_qp_13_sc_6.a Question Image

Answer

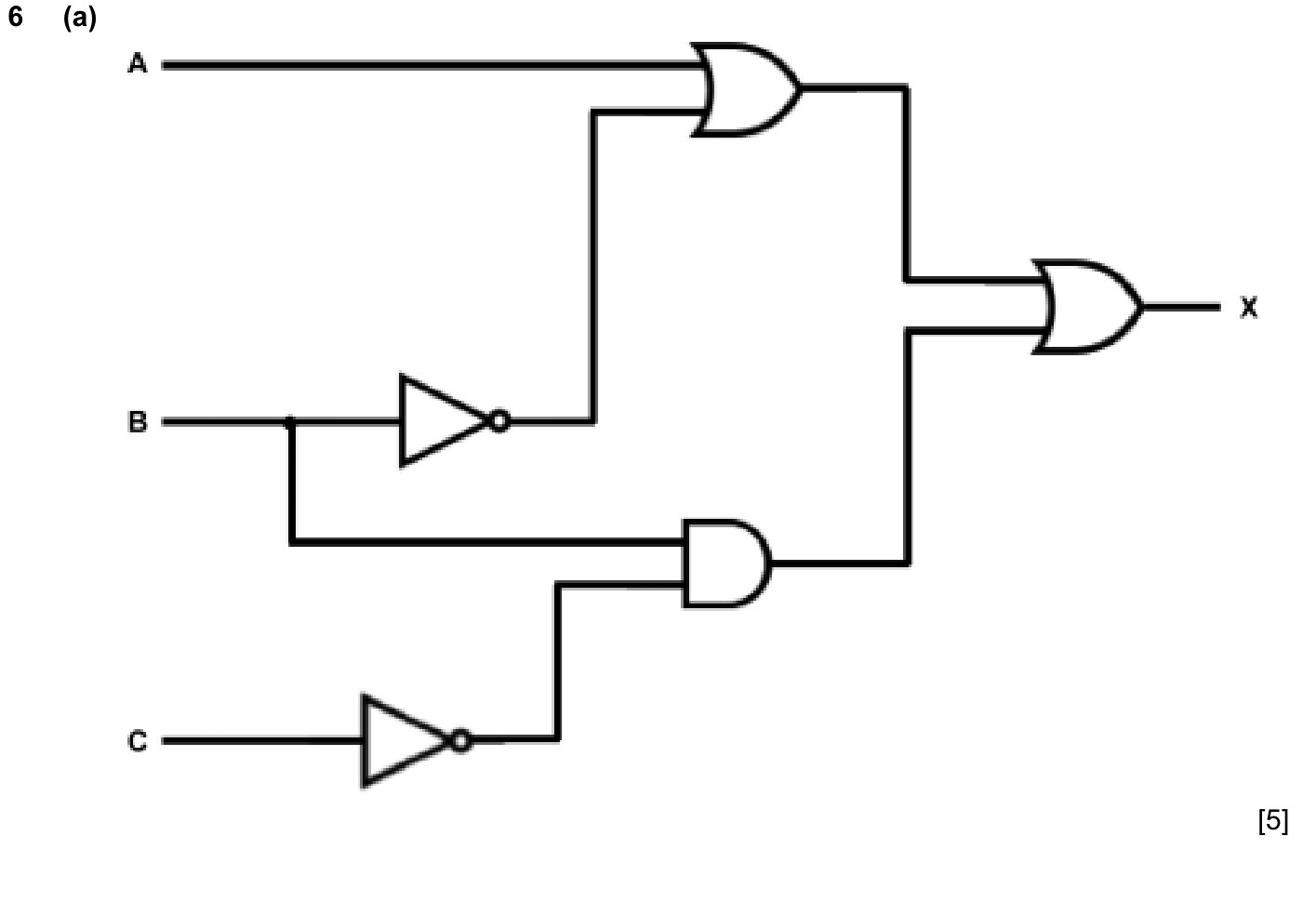

9608_s15_qp_13_sc_6.a Mark Scheme Image

9608_s15_qp_12_sc_7.a

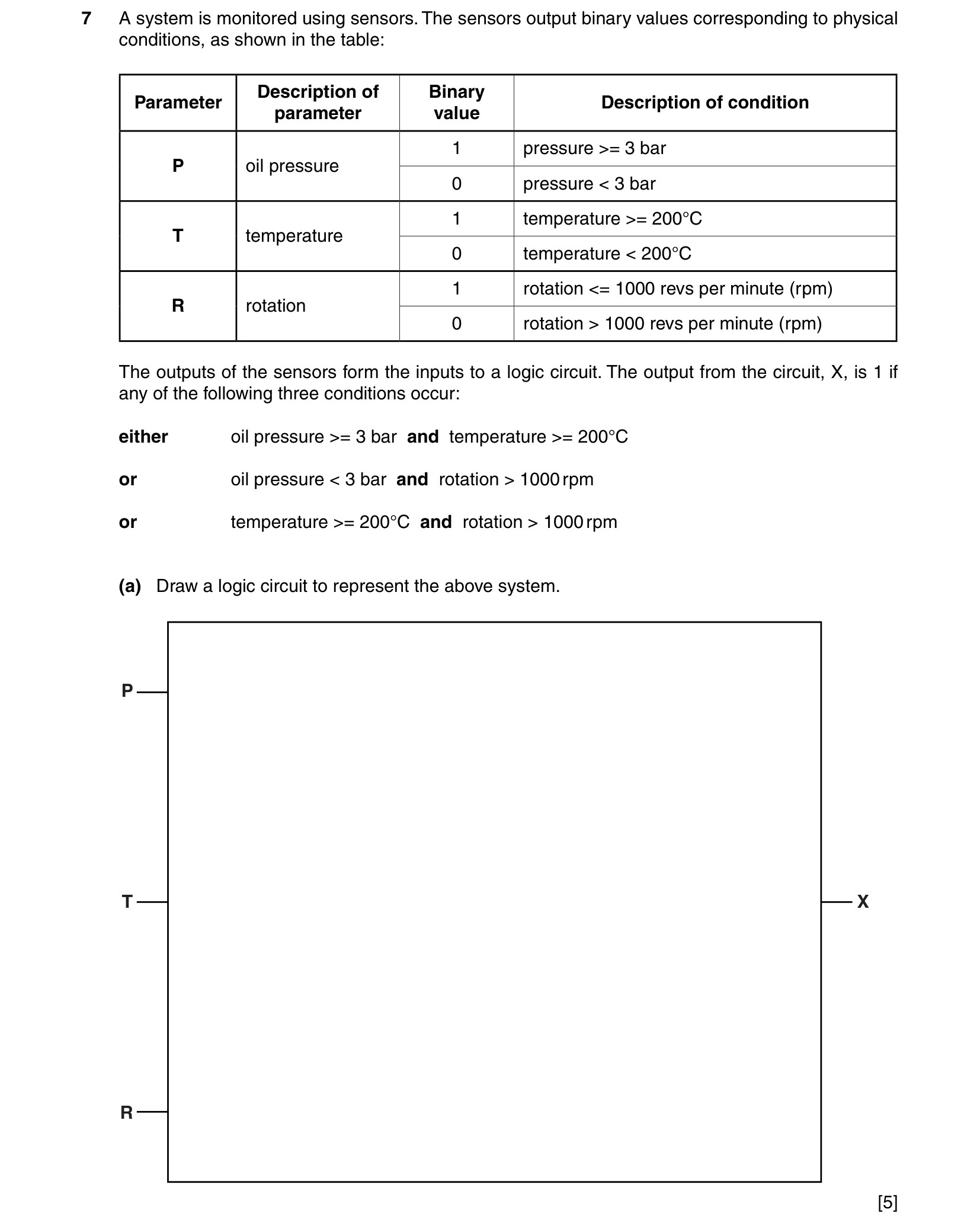

9608_s15_qp_12_sc_7.a Question Image

Answer

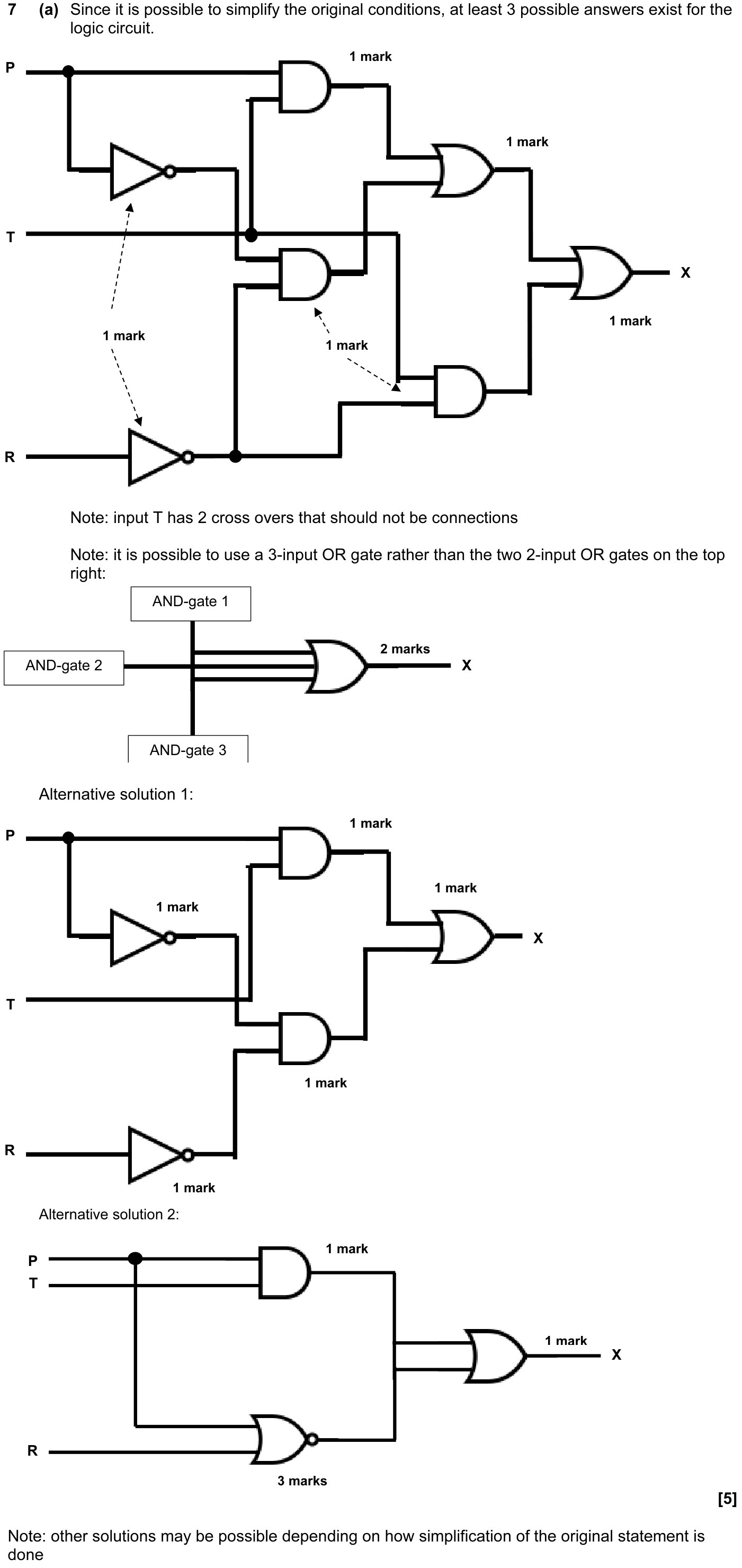

9608_s15_qp_12_sc_7.a Mark Scheme Image

Understand and define the functions of: NOT, AND, OR, NAND, NOR and XOR (EOR) gates

9608_s20_qp_13_sc_3.c

9608_s20_qp_13_sc_3.c Question Image

Answer

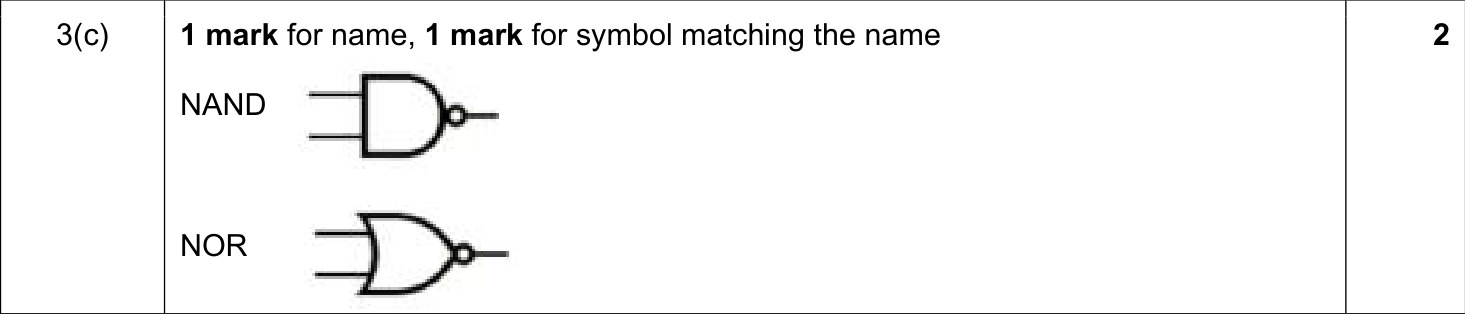

9608_s20_qp_13_sc_3.c Mark Scheme Image

Construct the truth table for each of the logic gates above

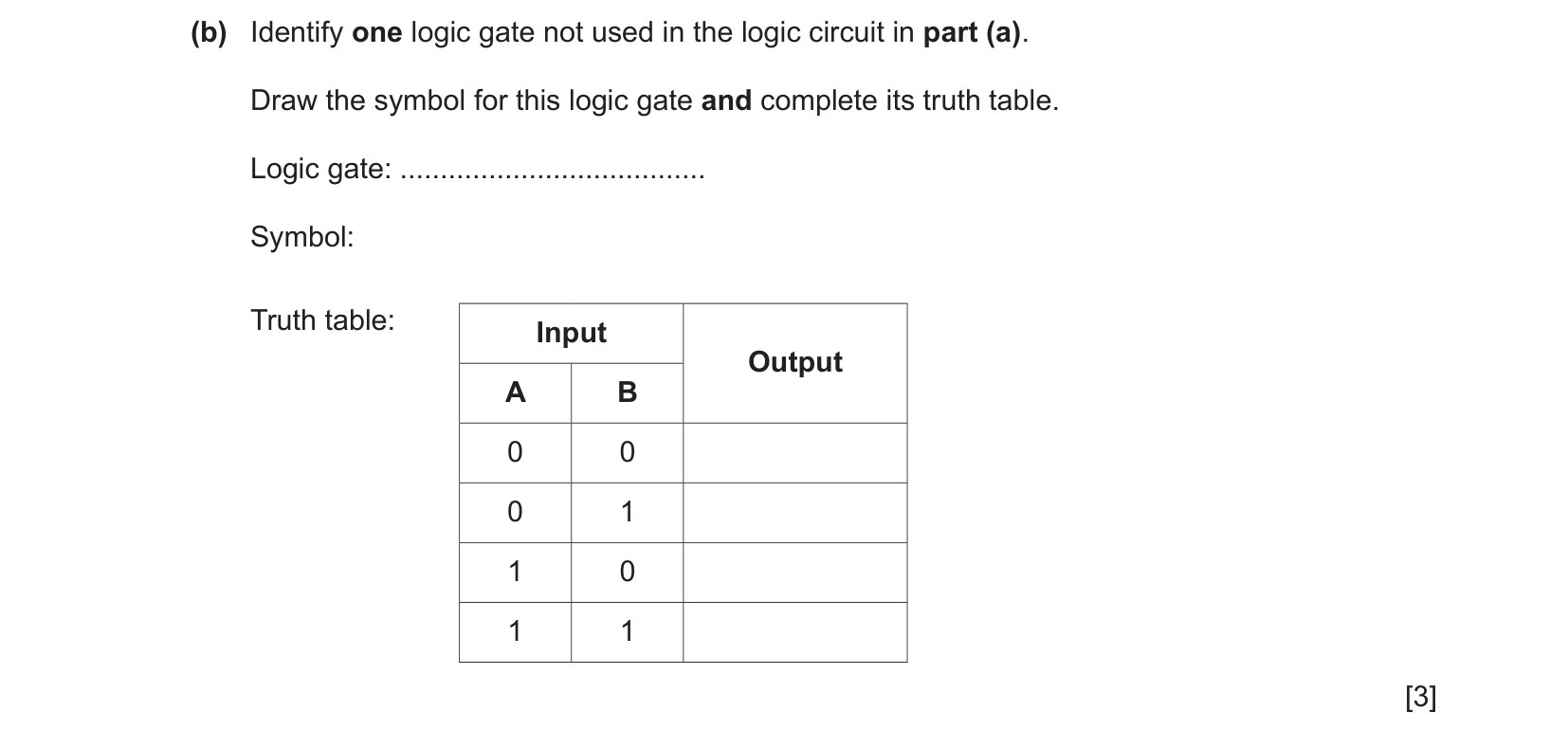

9608_s20_qp_11_sc_5.b

9608_s20_qp_11_sc_5.b Question Image

Answer

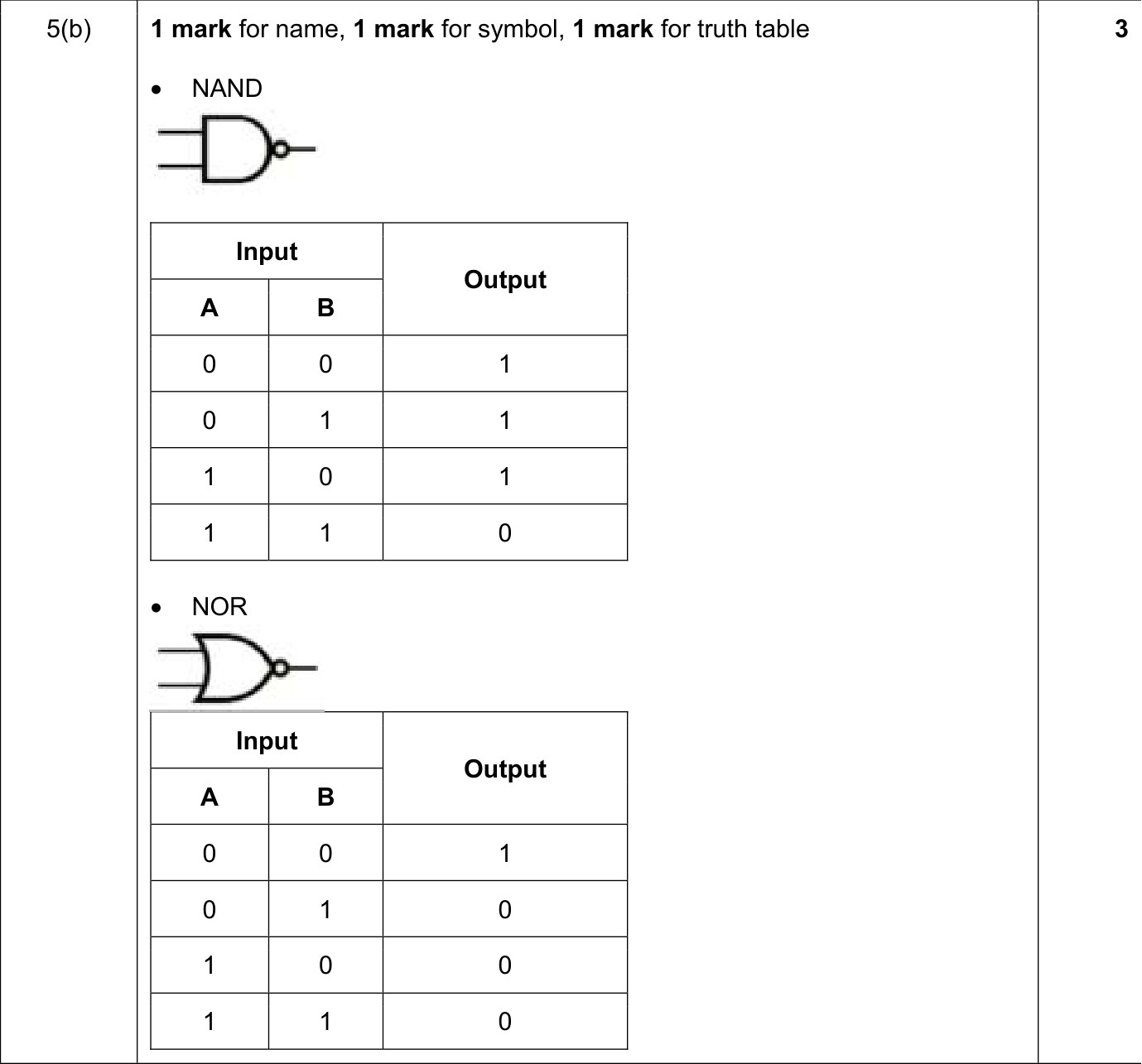

9608_s20_qp_11_sc_5.b Mark Scheme Image

Construct a logic circuit

9608_s20_qp_13_sc_3.a

9608_s20_qp_13_sc_3.a Question Image

Answer

9608_s20_qp_13_sc_3.a Mark Scheme Image

9608_s20_qp_12_sc_3

9608_s20_qp_12_sc_3 Question Image

Answer

9608_s20_qp_12_sc_3 Mark Scheme Image

9608_w19_qp_13_sc_5.a

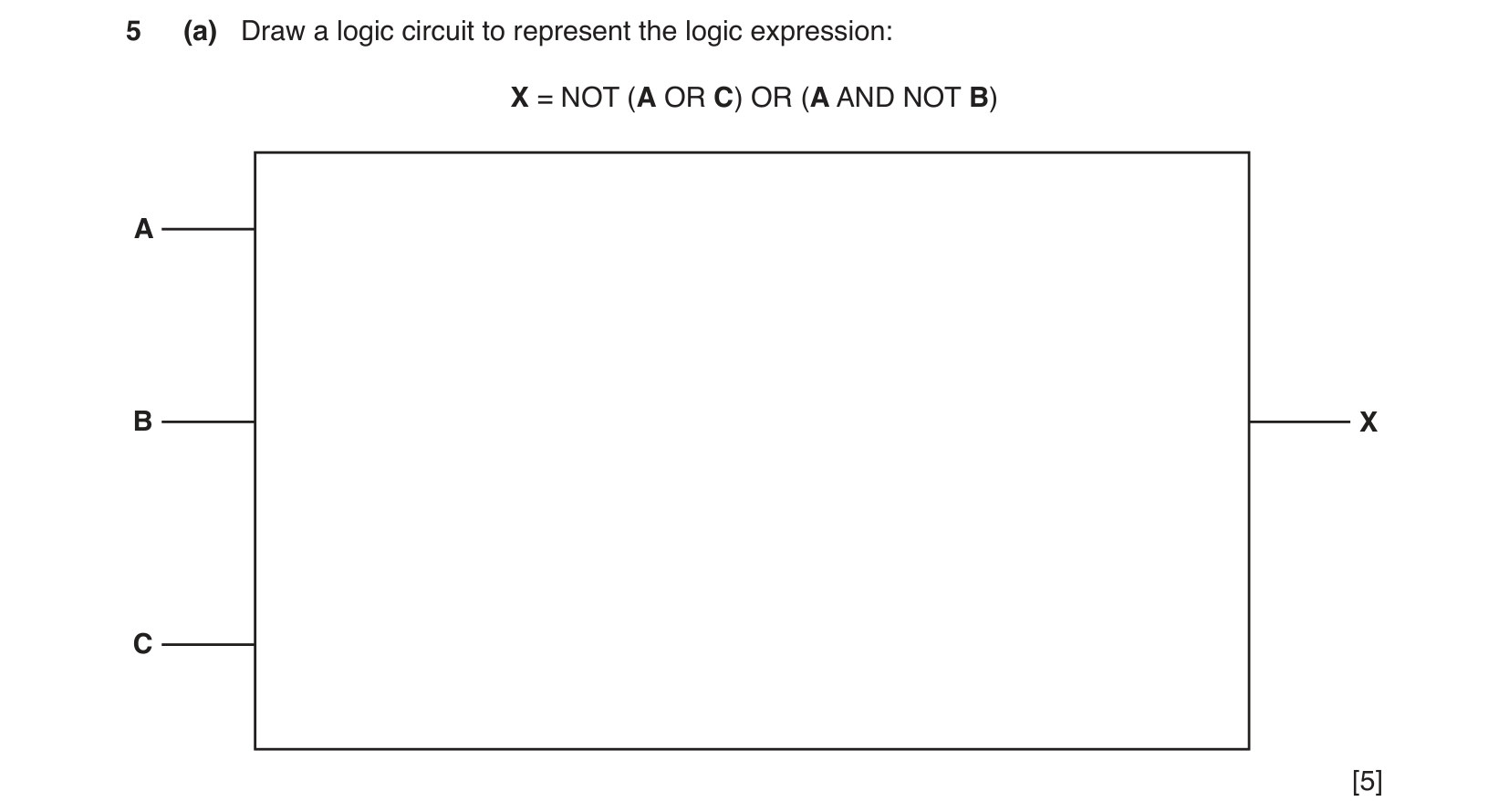

9608_w19_qp_13_sc_5.a Question Image

Answer

9608_w19_qp_13_sc_5.a Mark Scheme Image

9608_w19_qp_12_sc_2.a

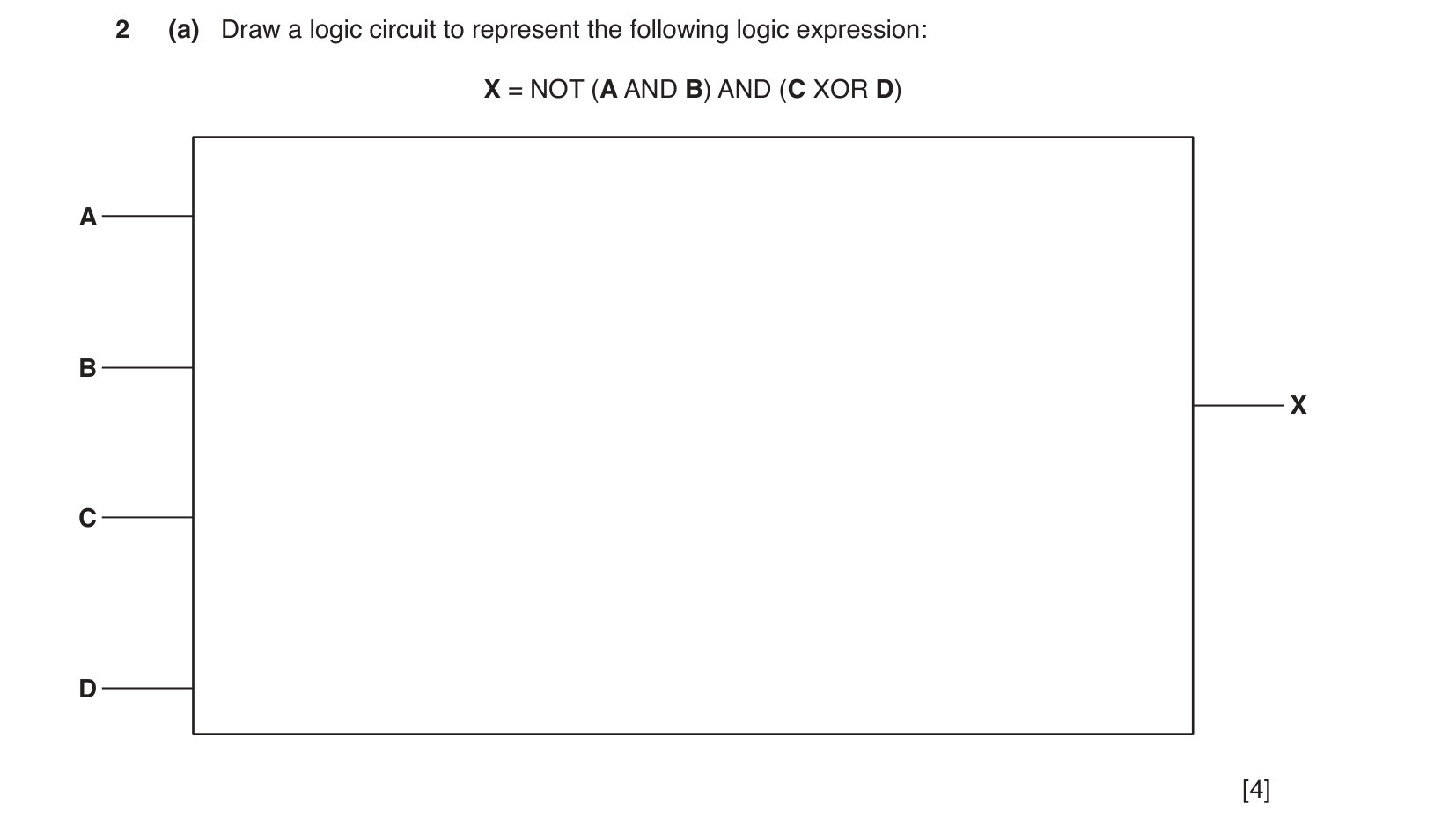

9608_w19_qp_12_sc_2.a Question Image

Answer

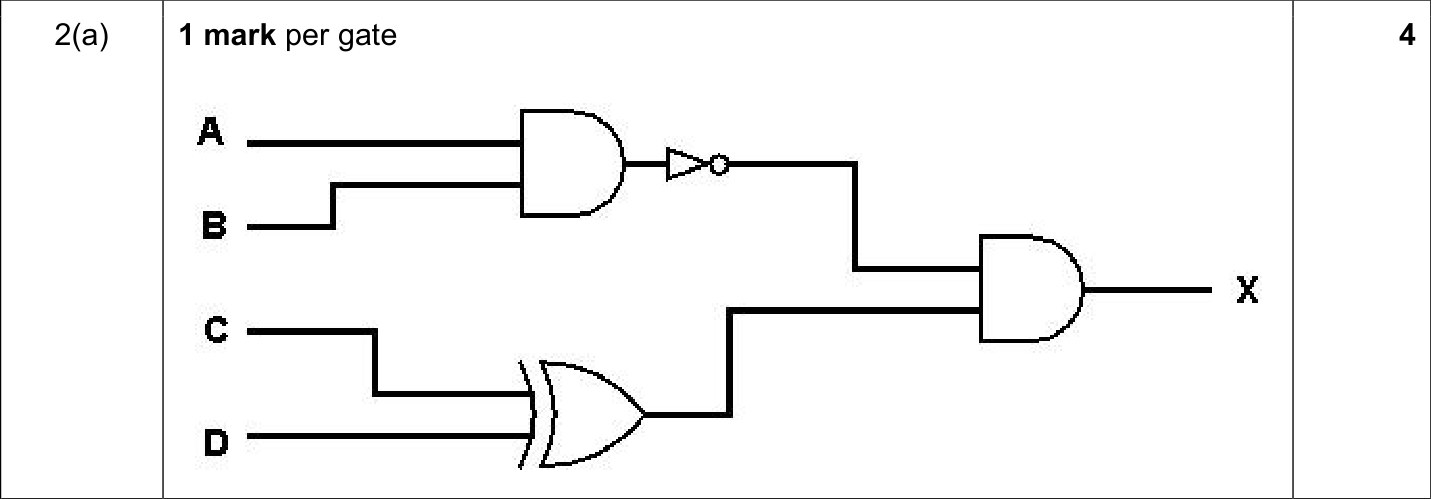

9608_w19_qp_12_sc_2.a Mark Scheme Image

9608_w19_qp_11_sc_3.a

9608_w19_qp_11_sc_3.a Question Image

Answer

9608_w19_qp_11_sc_3.a Mark Scheme Image

9608_s19_qp_12_sc_6.a

9608_s19_qp_12_sc_6.a Question Image

Answer

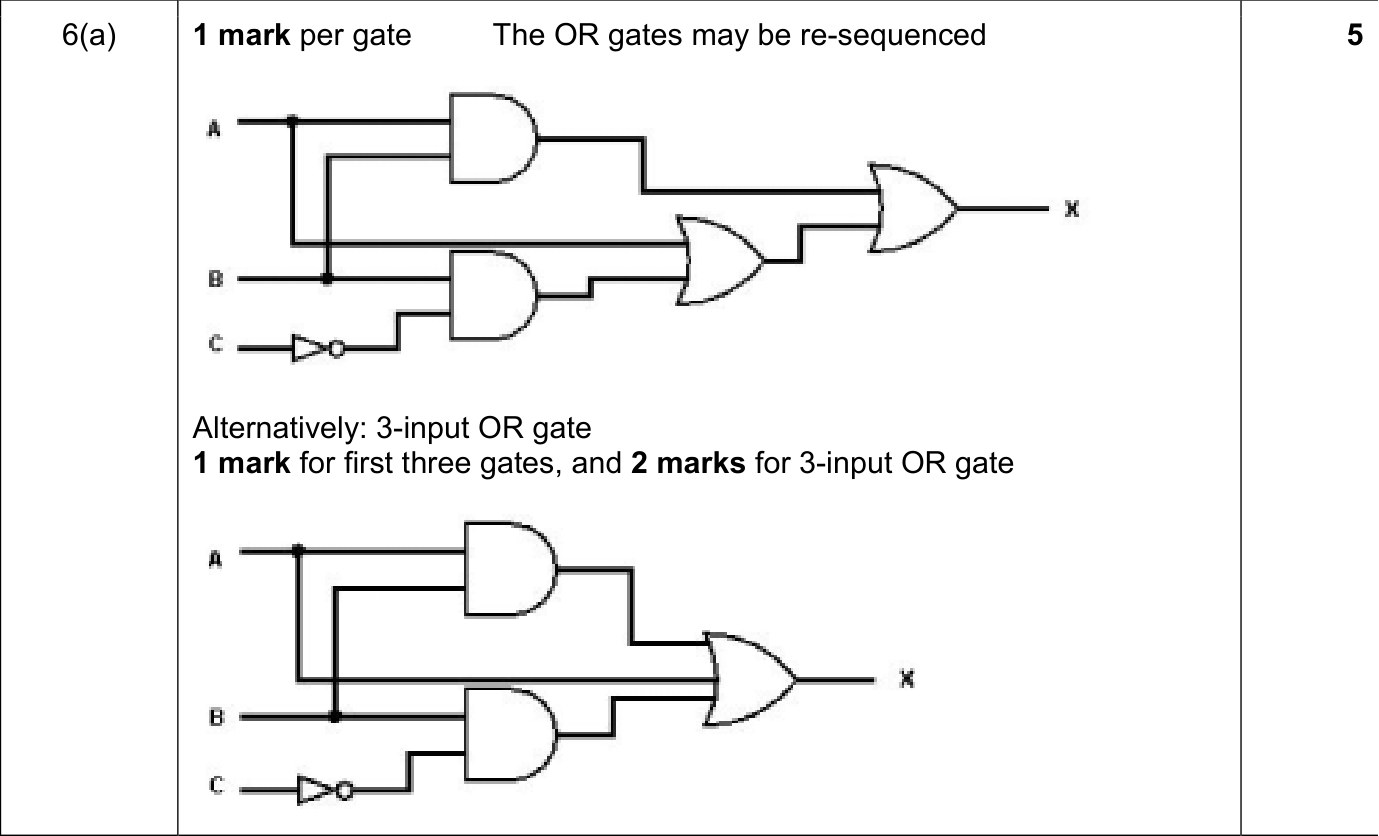

9608_s19_qp_12_sc_6.a Mark Scheme Image

9608_w18_qp_13_sc_8.a

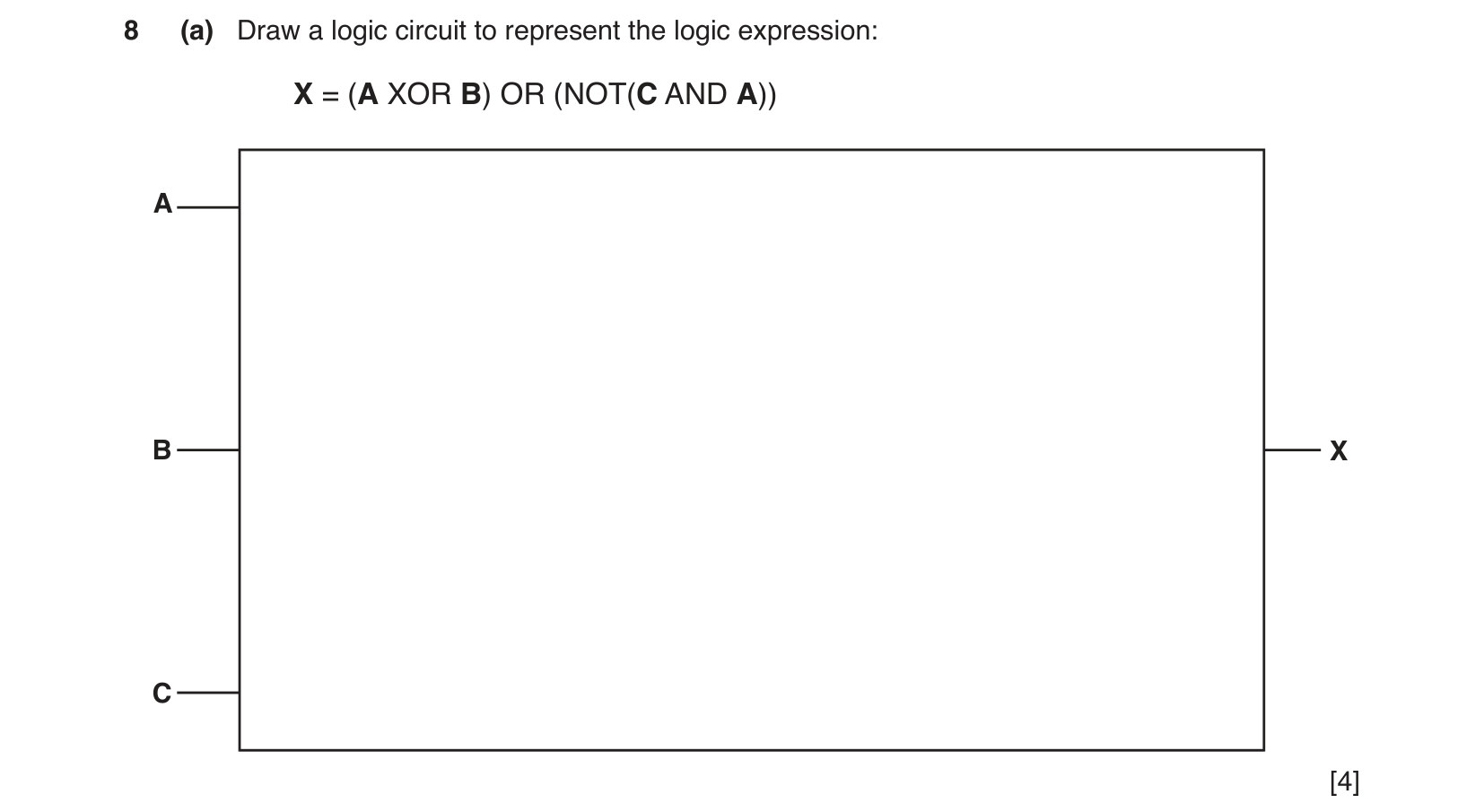

9608_w18_qp_13_sc_8.a Question Image

Answer

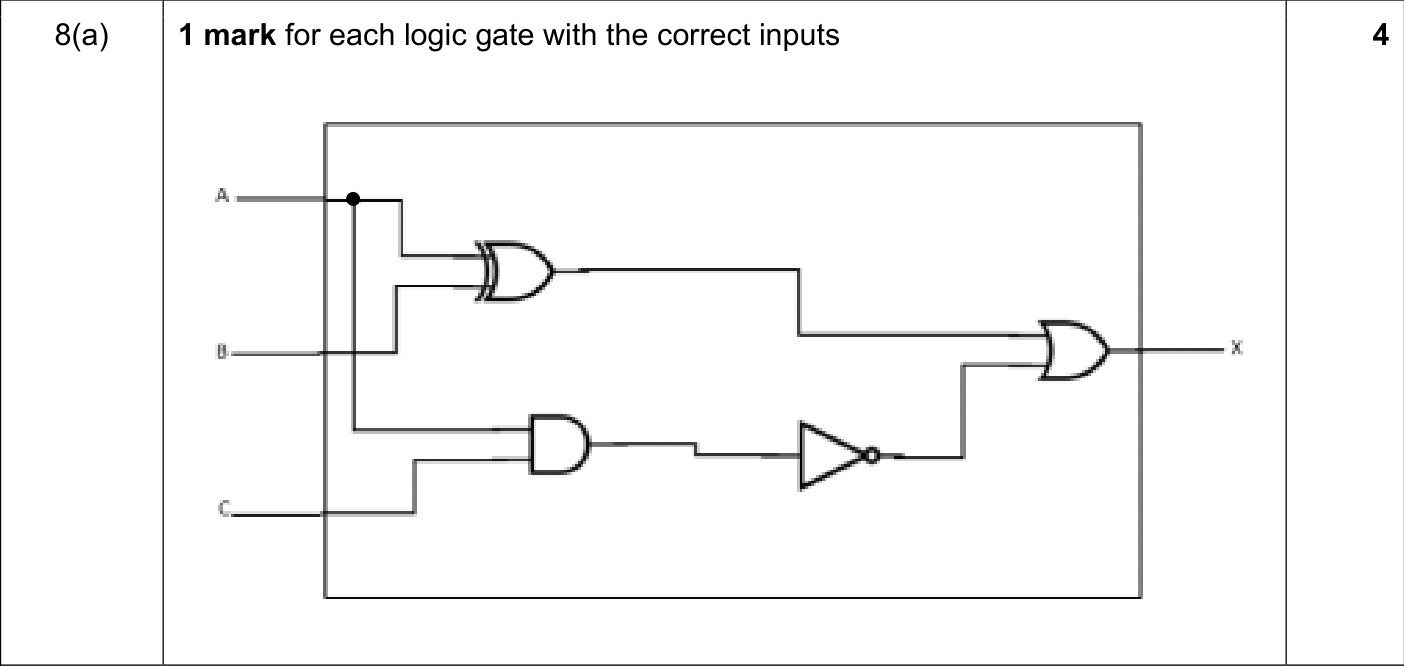

9608_w18_qp_13_sc_8.a Mark Scheme Image

9608_s18_qp_13_sc_5.a

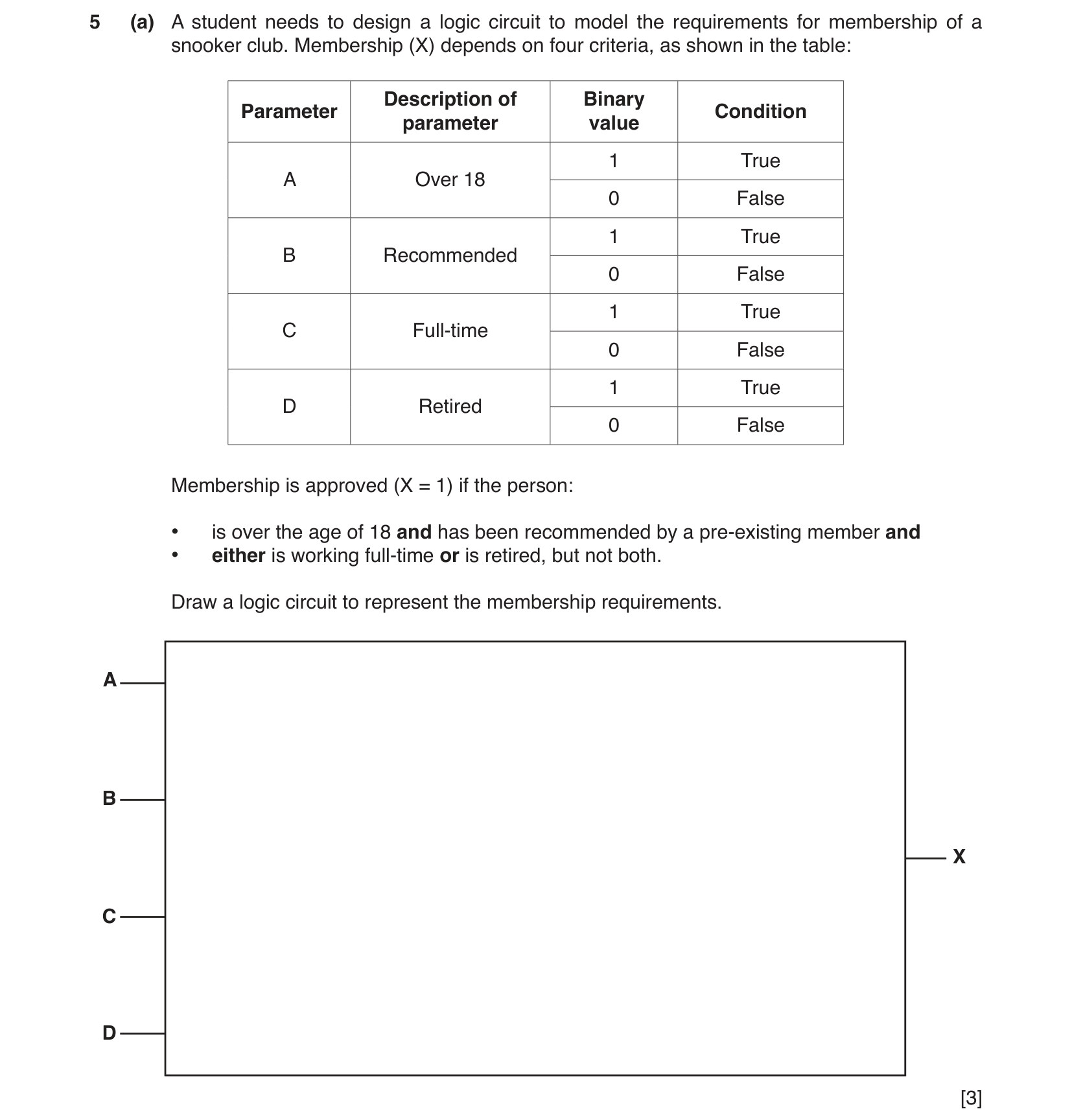

9608_s18_qp_13_sc_5.a Question Image

Answer

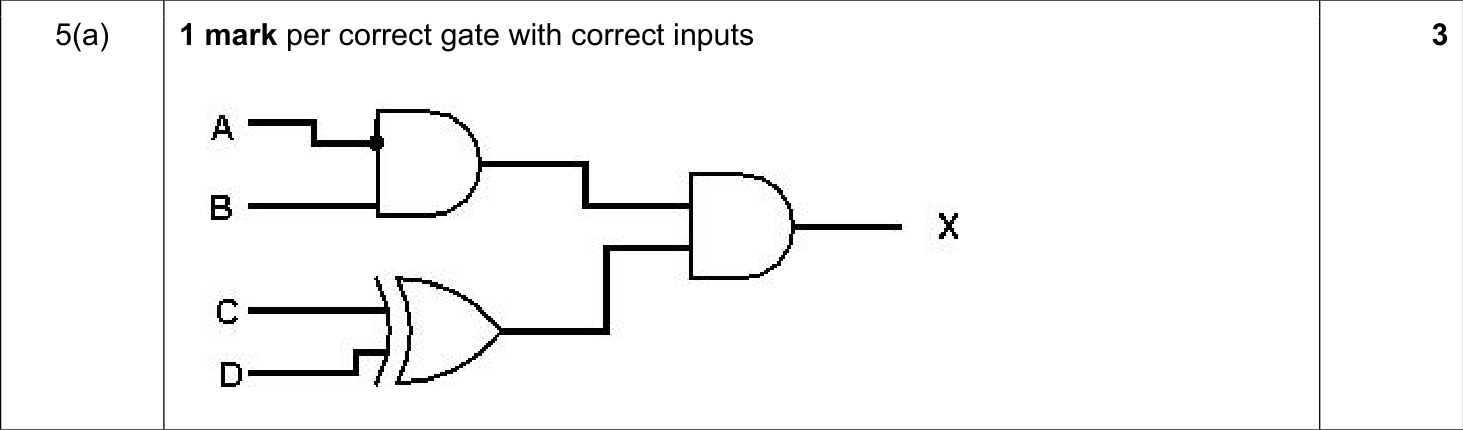

9608_s18_qp_13_sc_5.a Mark Scheme Image

9608_s18_qp_12_sc_2.a

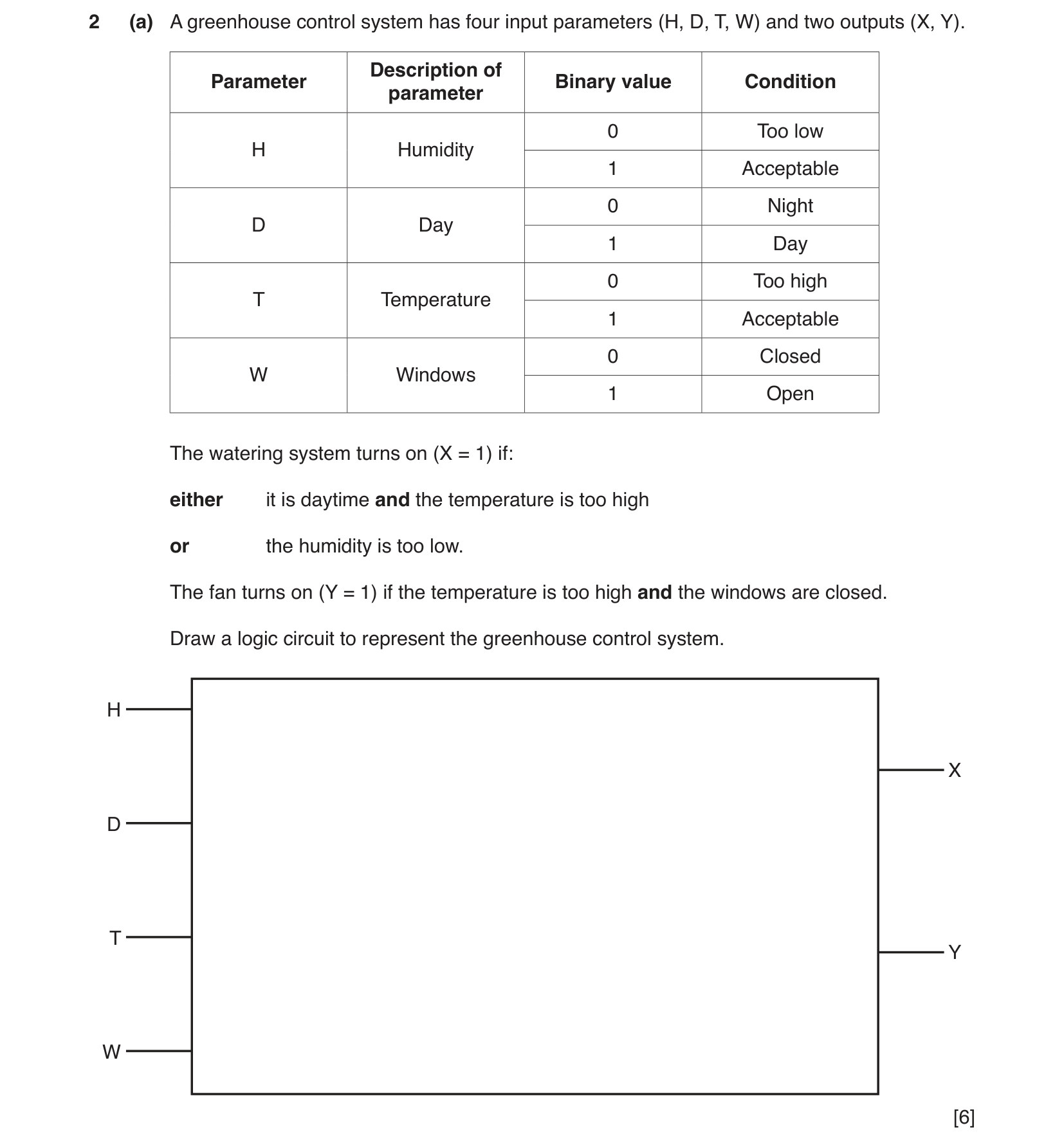

9608_s18_qp_12_sc_2.a Question Image

Answer

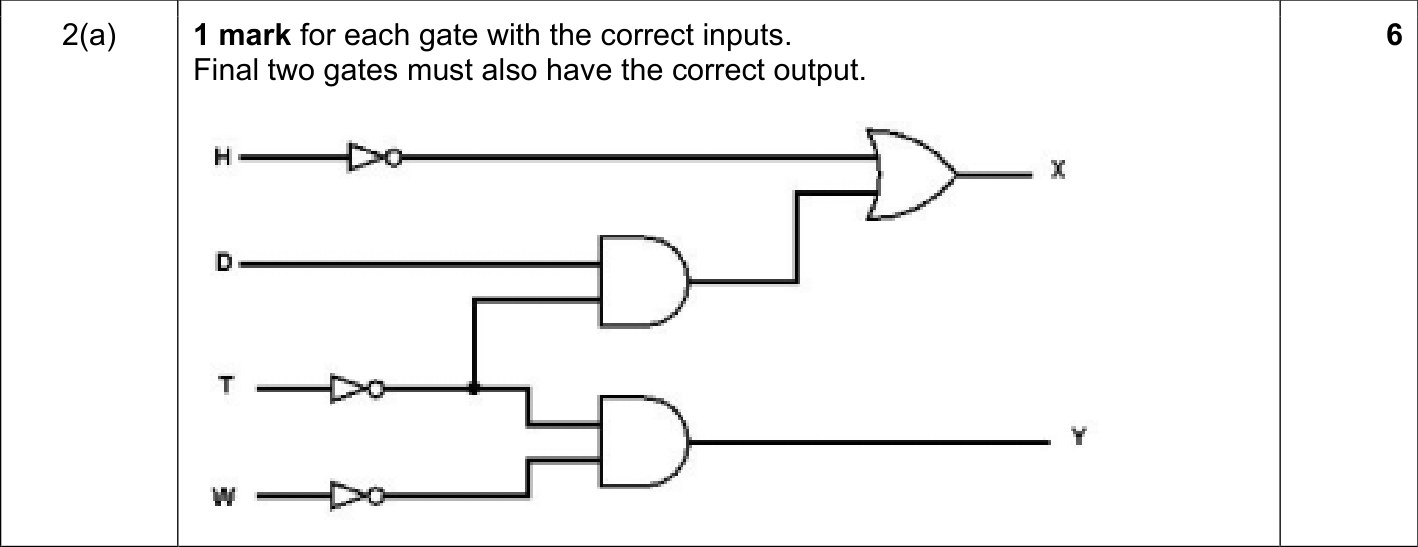

9608_s18_qp_12_sc_2.a Mark Scheme Image

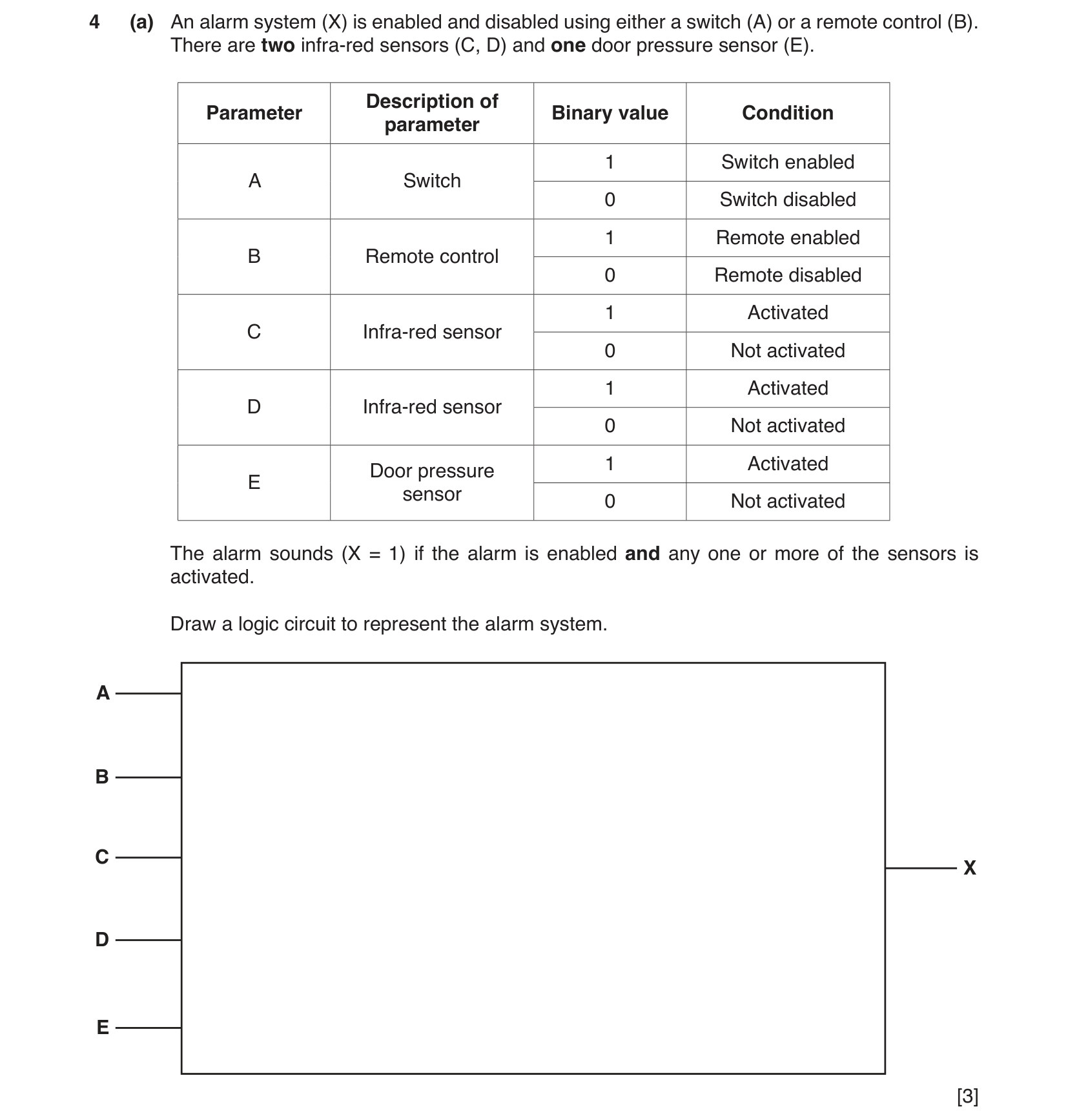

9608_s18_qp_11_sc_4.a

9608_s18_qp_11_sc_4.a Question Image

Answer

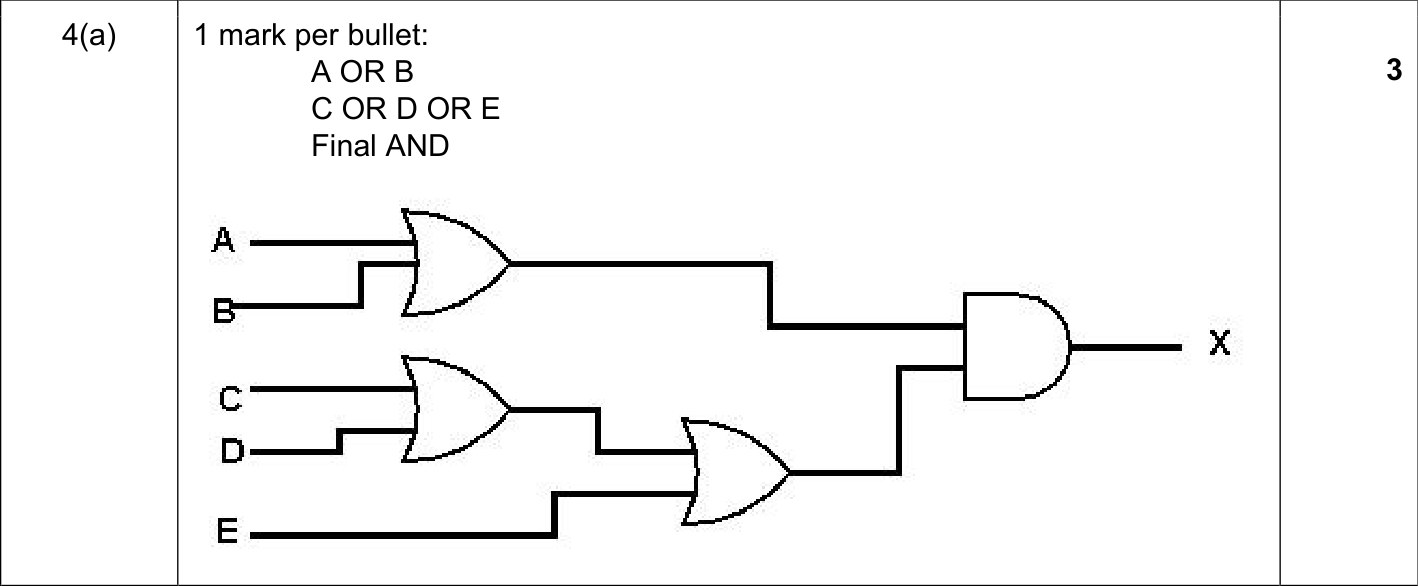

9608_s18_qp_11_sc_4.a Mark Scheme Image

9608_w16_qp_13_sc_5.i

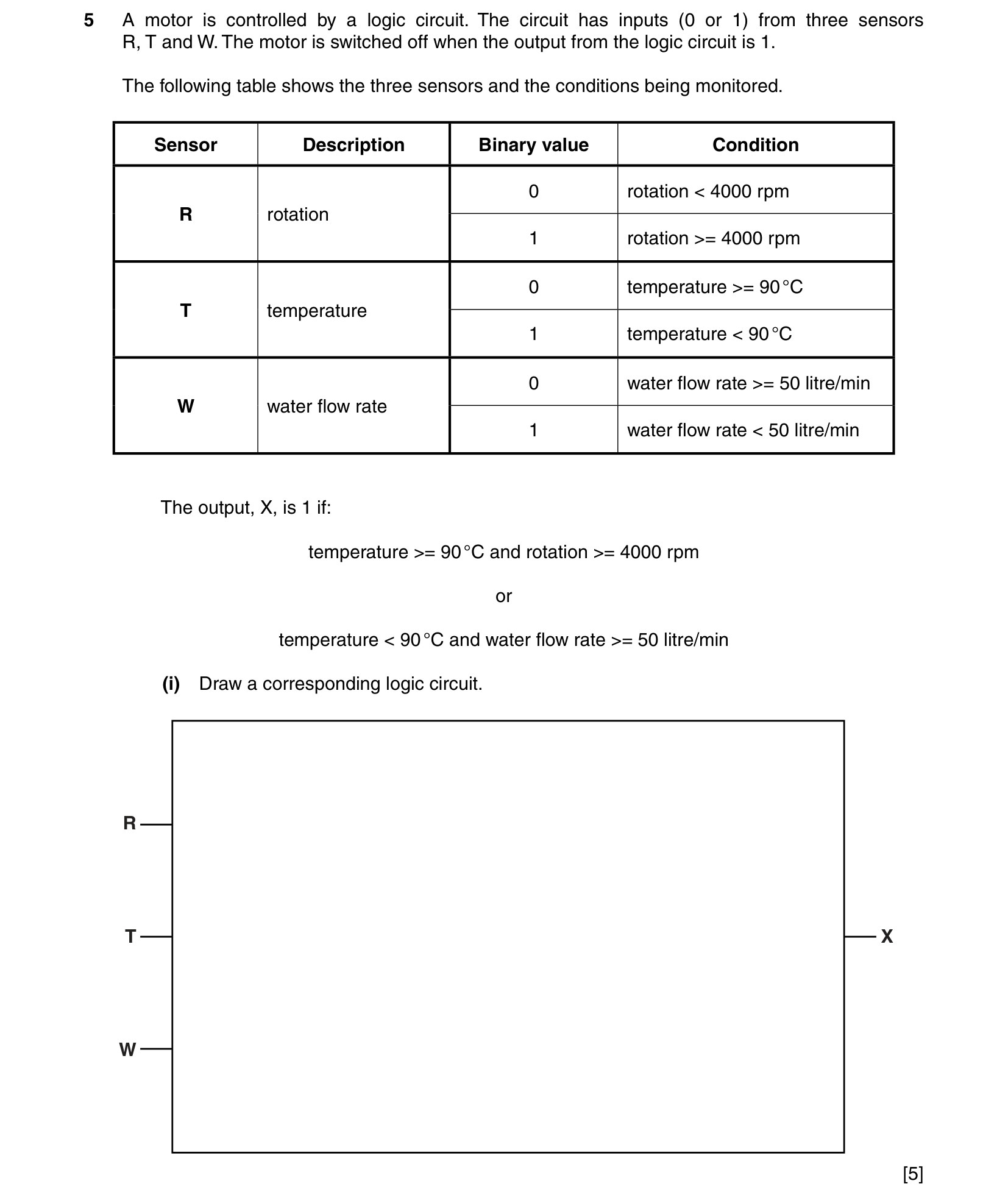

9608_w16_qp_13_sc_5.i Question Image

Answer

9608_w16_qp_13_sc_5.i Mark Scheme Image

9608_w16_qp_12_sc_1.a

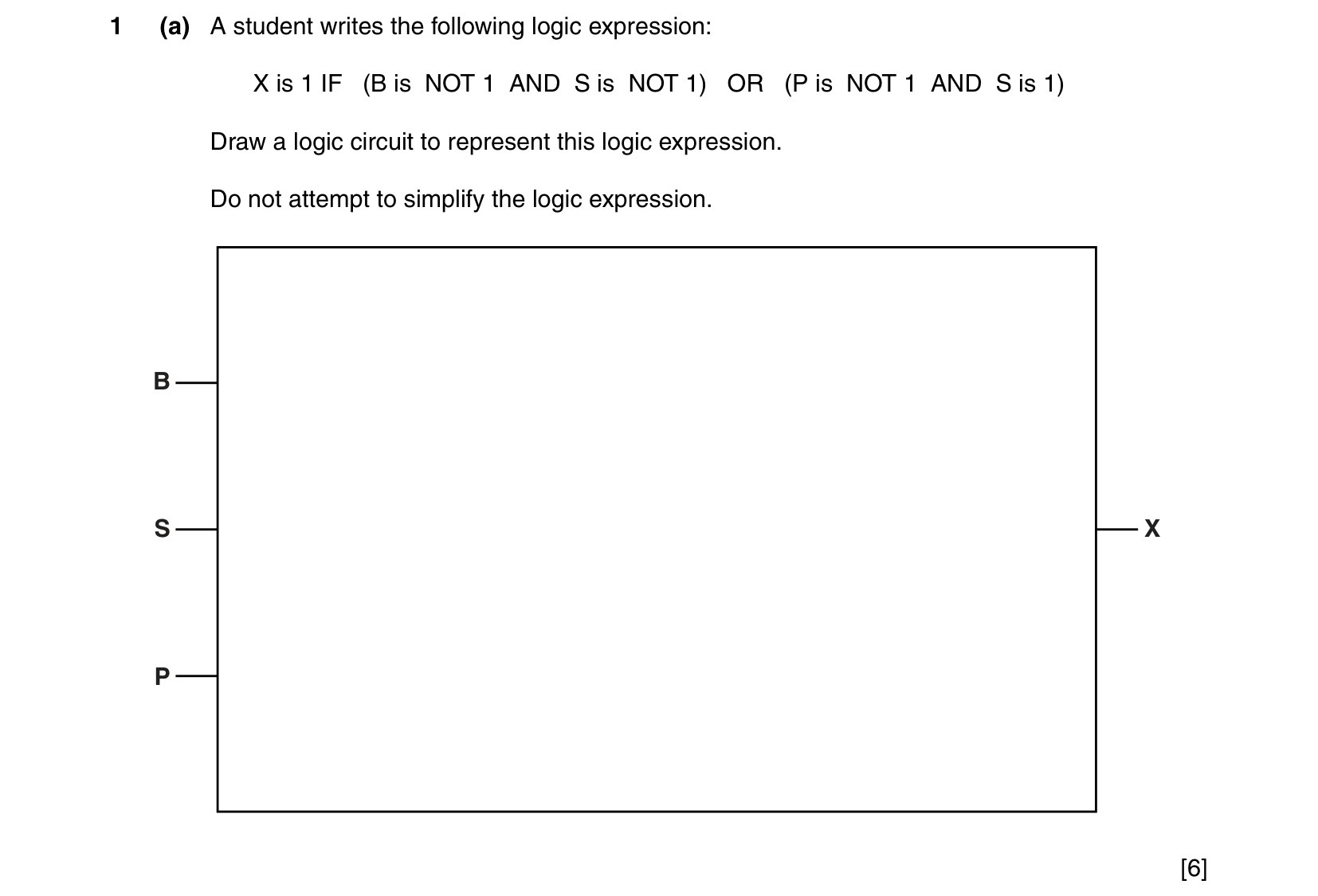

9608_w16_qp_12_sc_1.a Question Image

Answer

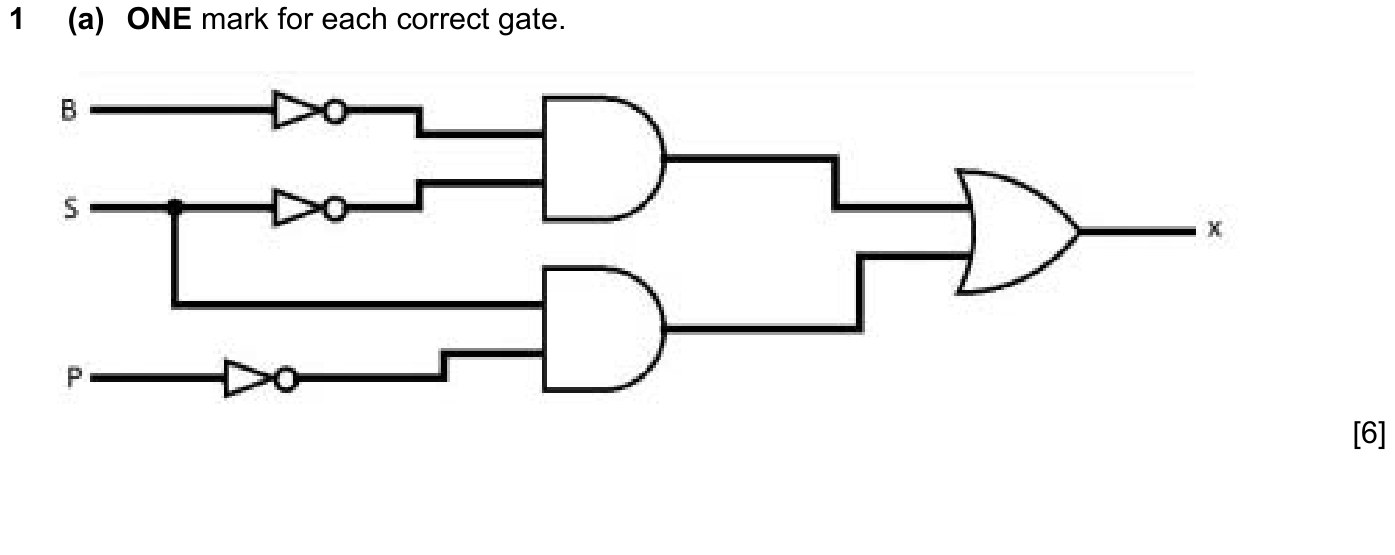

9608_w16_qp_12_sc_1.a Mark Scheme Image

9608_w16_qp_11_sc_5.i

9608_w16_qp_11_sc_5.i Question Image

Answer

9608_w16_qp_11_sc_5.i Mark Scheme Image

9608_s15_qp_13_sc_6.a

9608_s15_qp_13_sc_6.a Question Image

Answer

9608_s15_qp_13_sc_6.a Mark Scheme Image

9608_s15_qp_12_sc_7.a

9608_s15_qp_12_sc_7.a Question Image

Answer

9608_s15_qp_12_sc_7.a Mark Scheme Image

9608_s15_qp_11_sc_7.a

9608_s15_qp_11_sc_7.a Question Image

Answer

9608_s15_qp_11_sc_7.a Mark Scheme Image

Construct a truth table

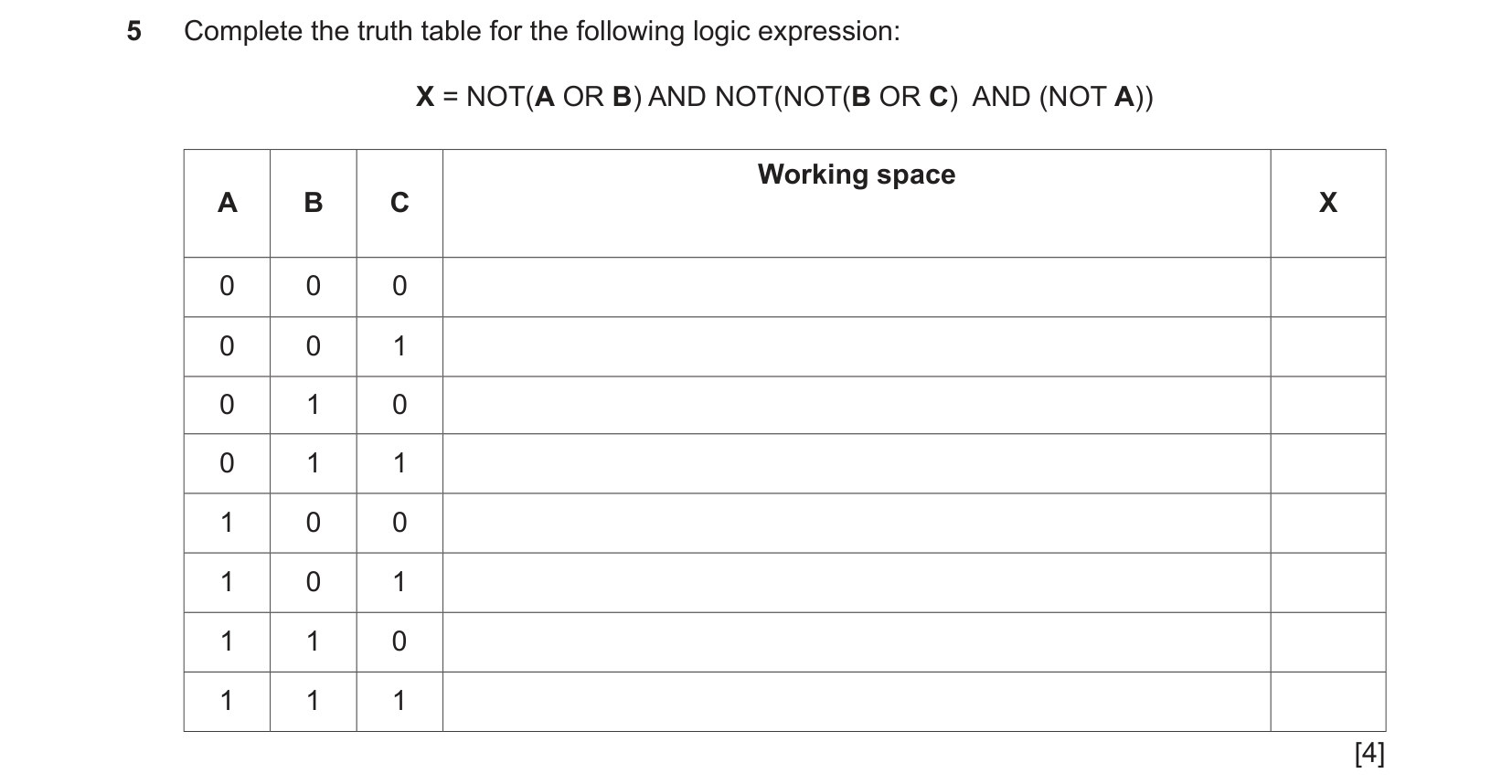

9608_w21_qp_11_sc_5

9608_w21_qp_11_sc_5 Question Image

Answer

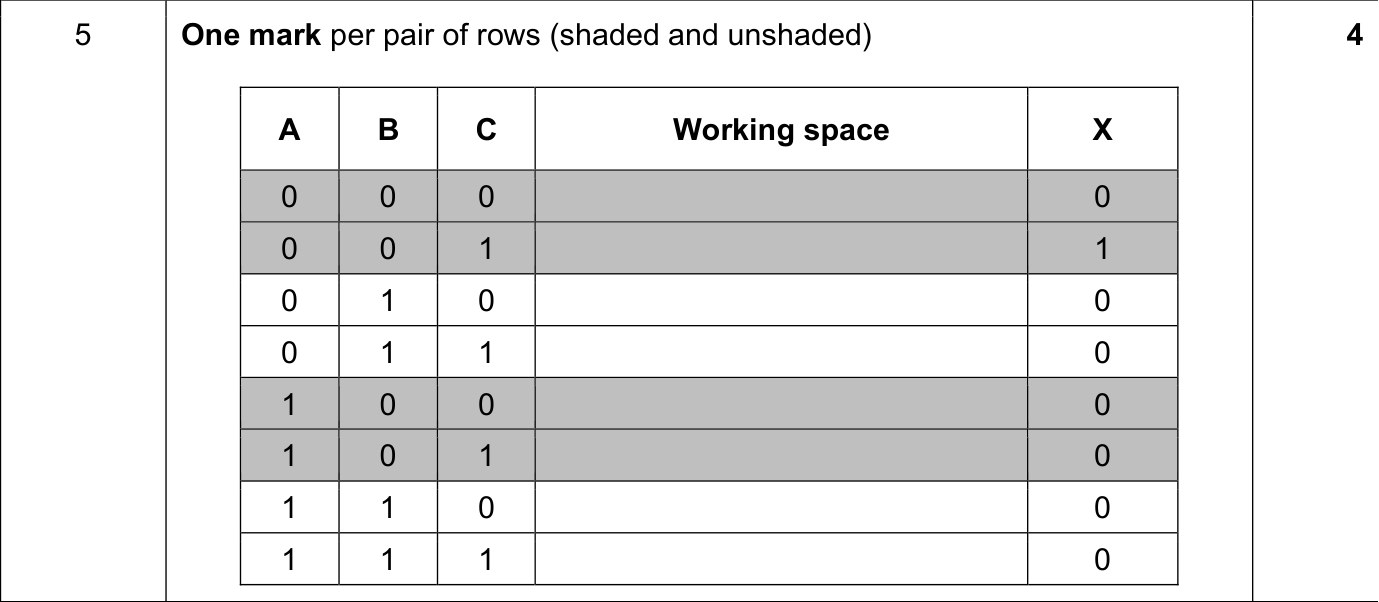

9608_w21_qp_11_sc_5 Mark Scheme Image

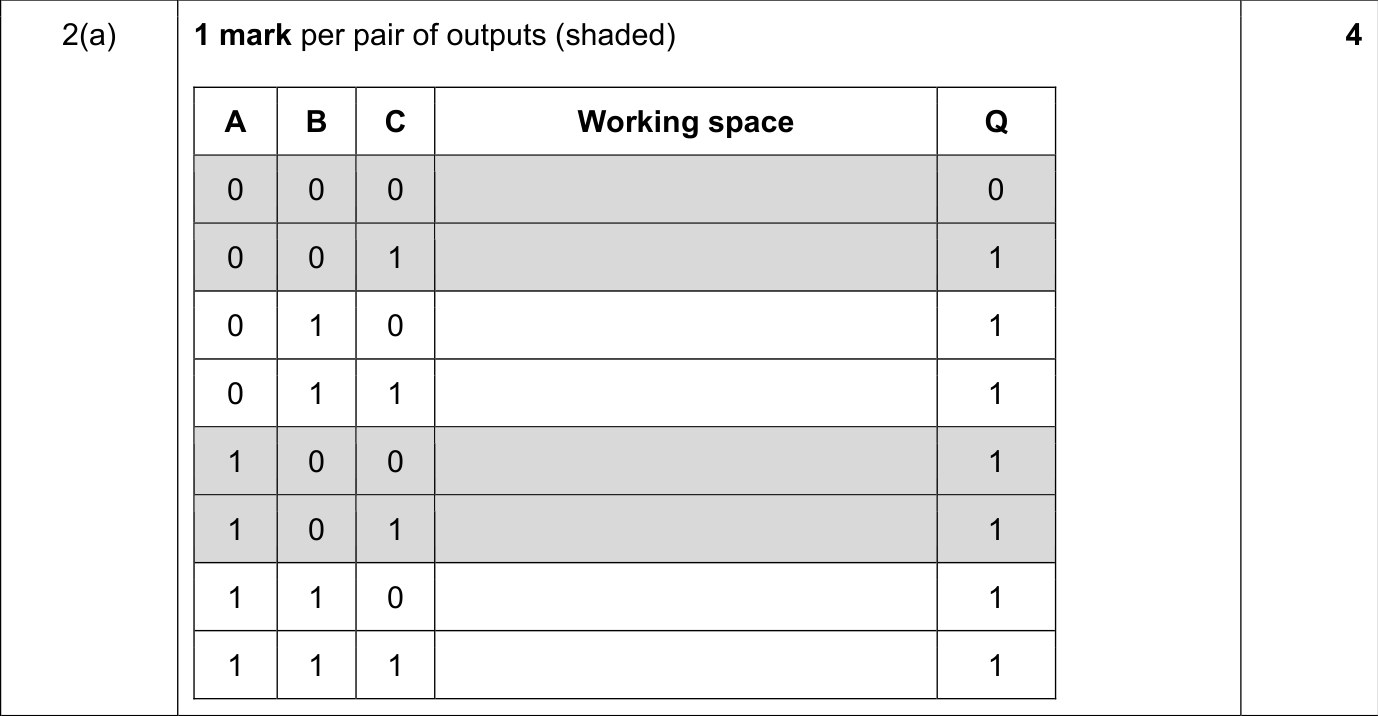

9608_s21_qp_13_sc_2.a

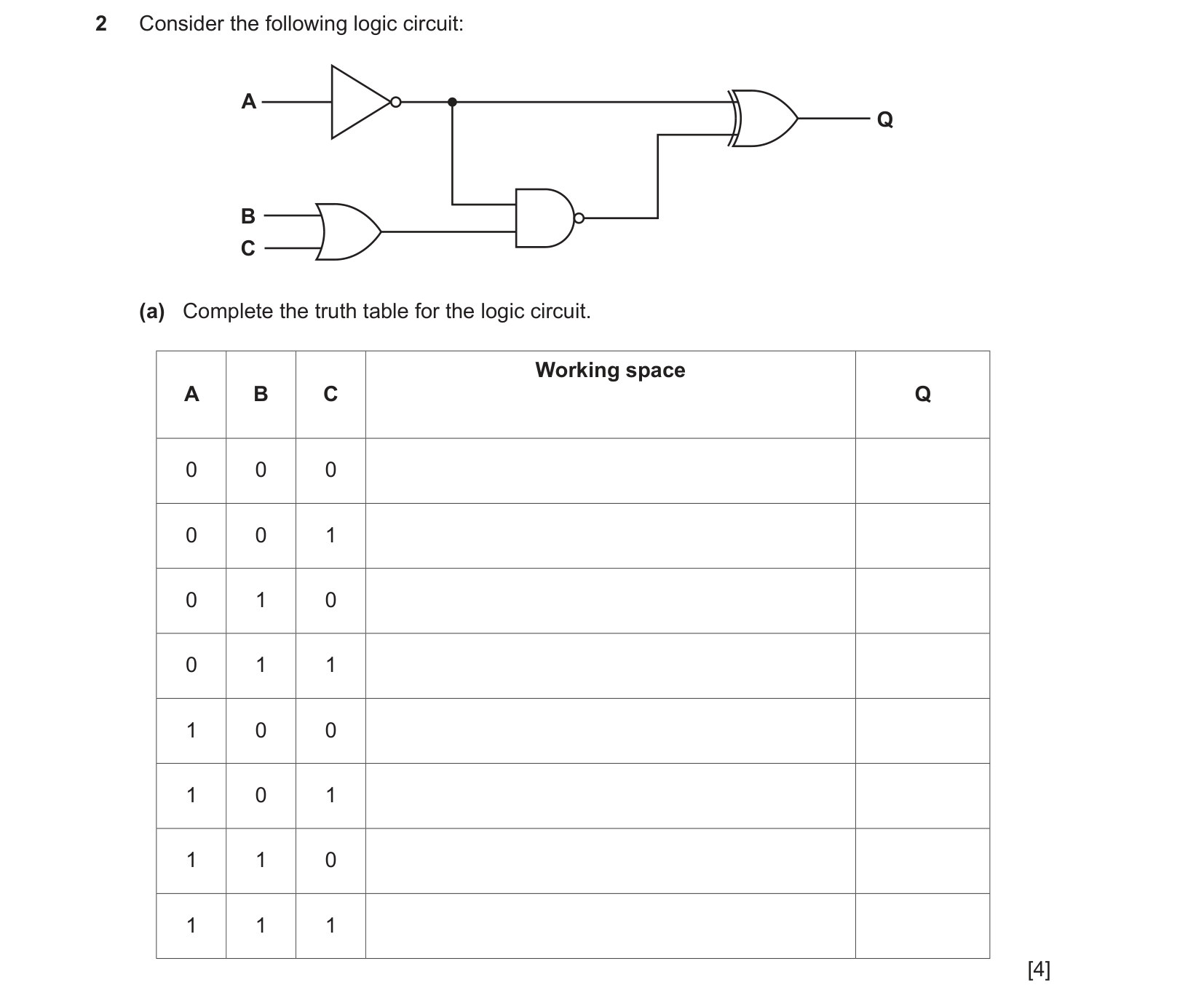

9608_s21_qp_13_sc_2.a Question Image

Answer

9608_s21_qp_13_sc_2.a Mark Scheme Image

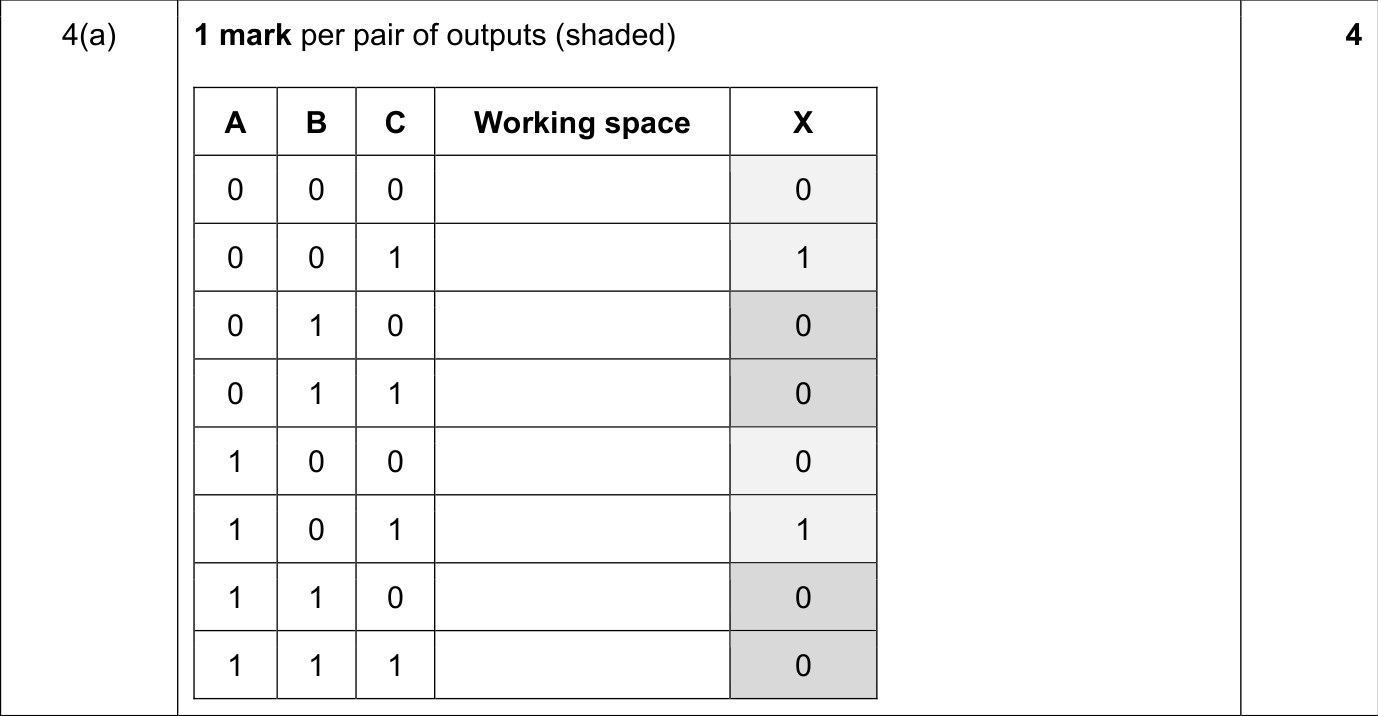

9608_s21_qp_11_sc_4.a

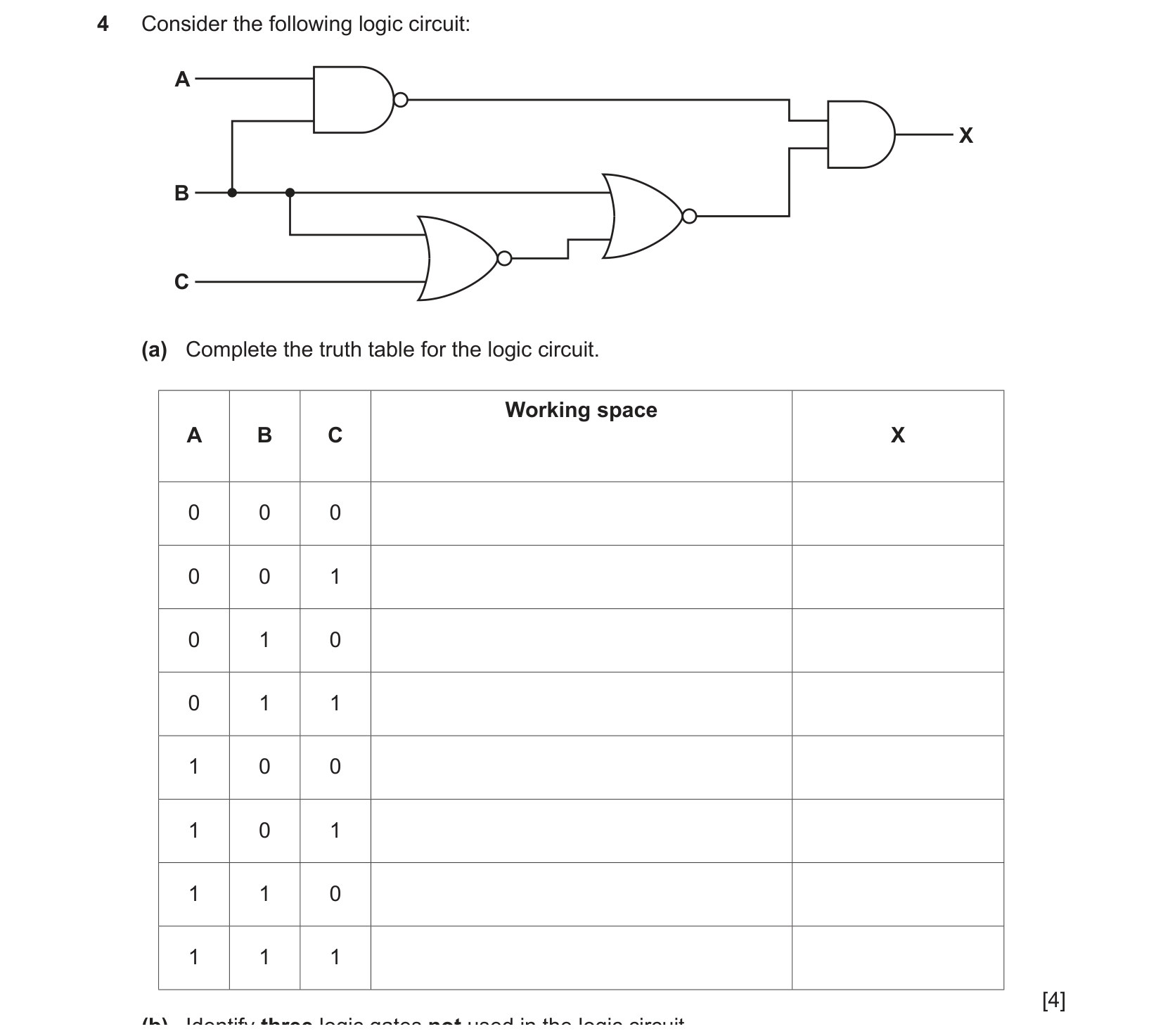

9608_s21_qp_11_sc_4.a Question Image

Answer

9608_s21_qp_11_sc_4.a Mark Scheme Image

9608_s20_qp_13_sc_3.b

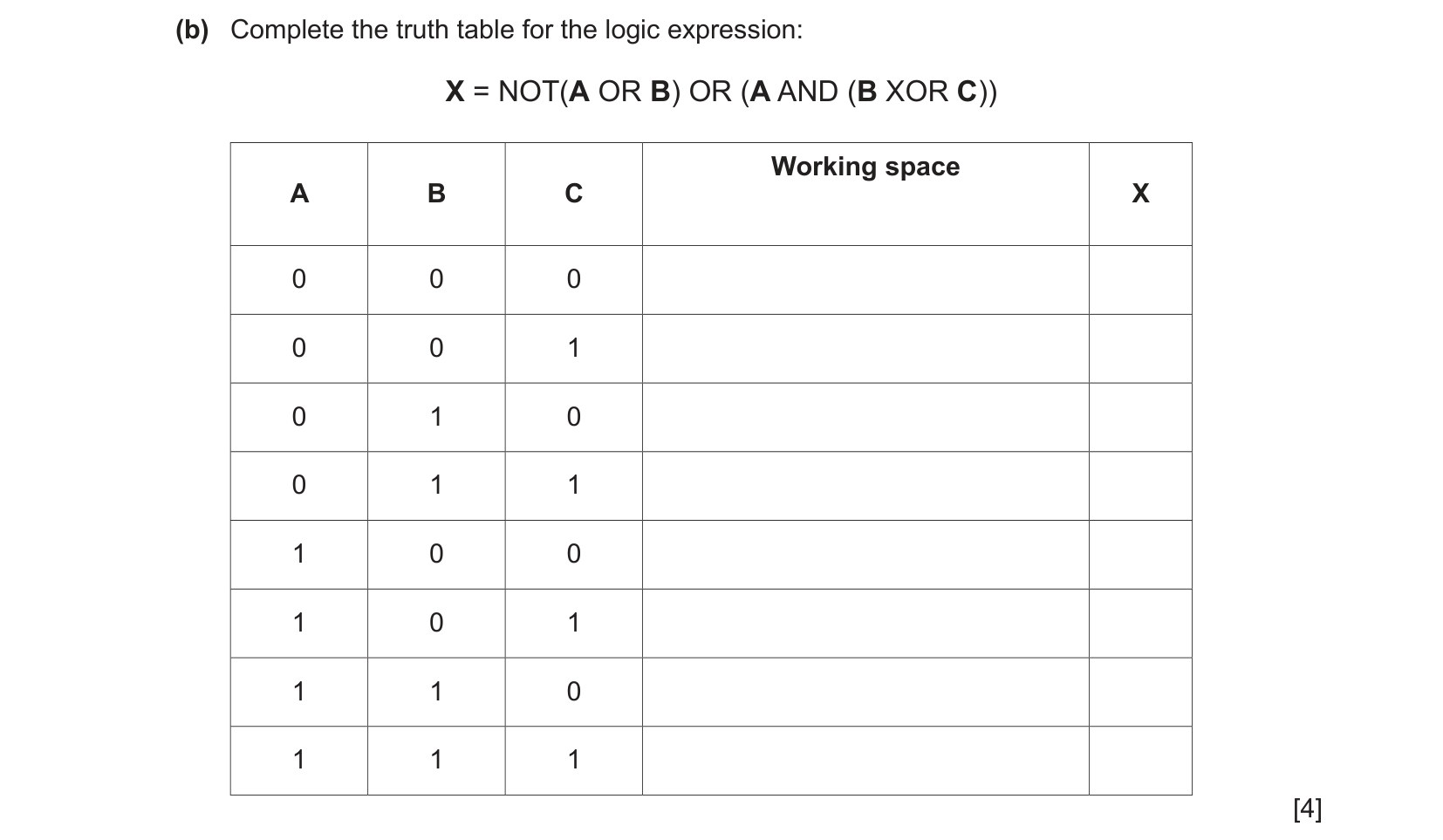

9608_s20_qp_13_sc_3.b Question Image

Answer

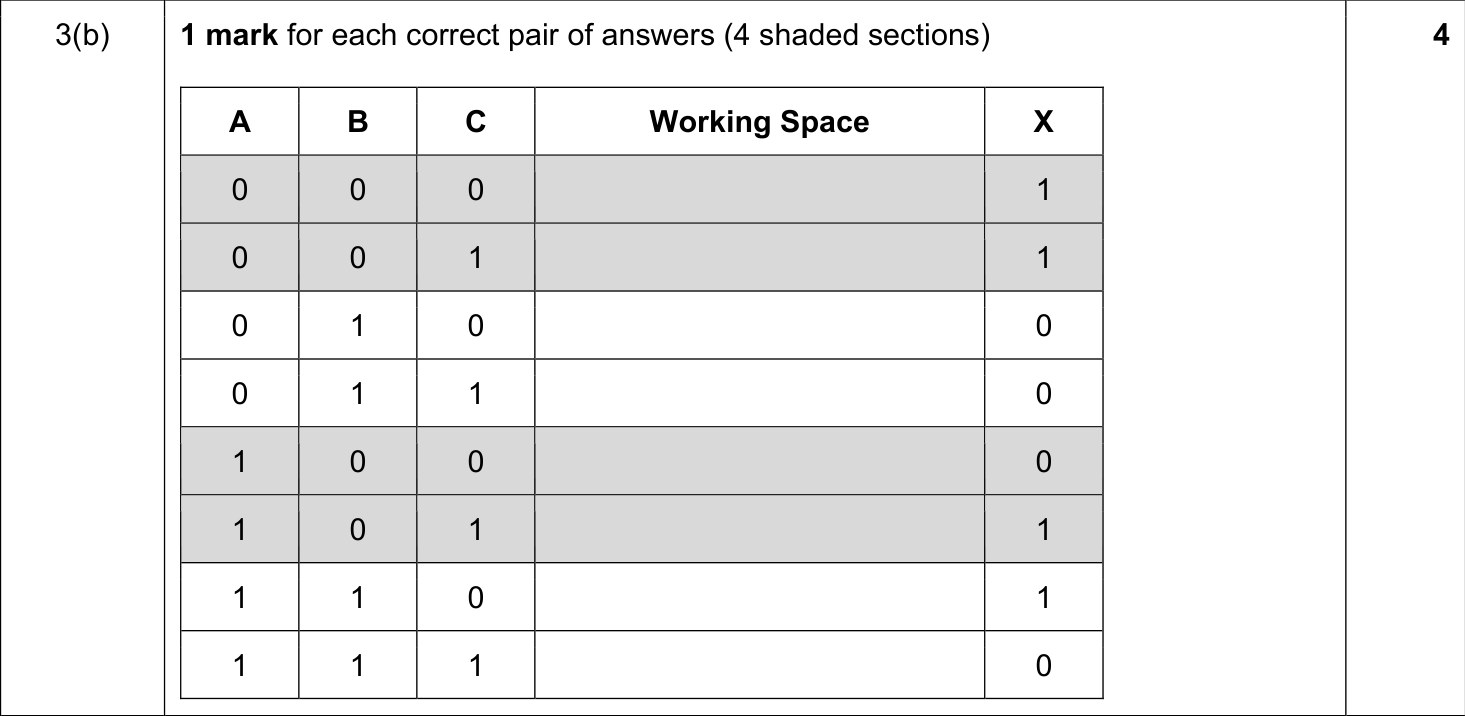

9608_s20_qp_13_sc_3.b Mark Scheme Image

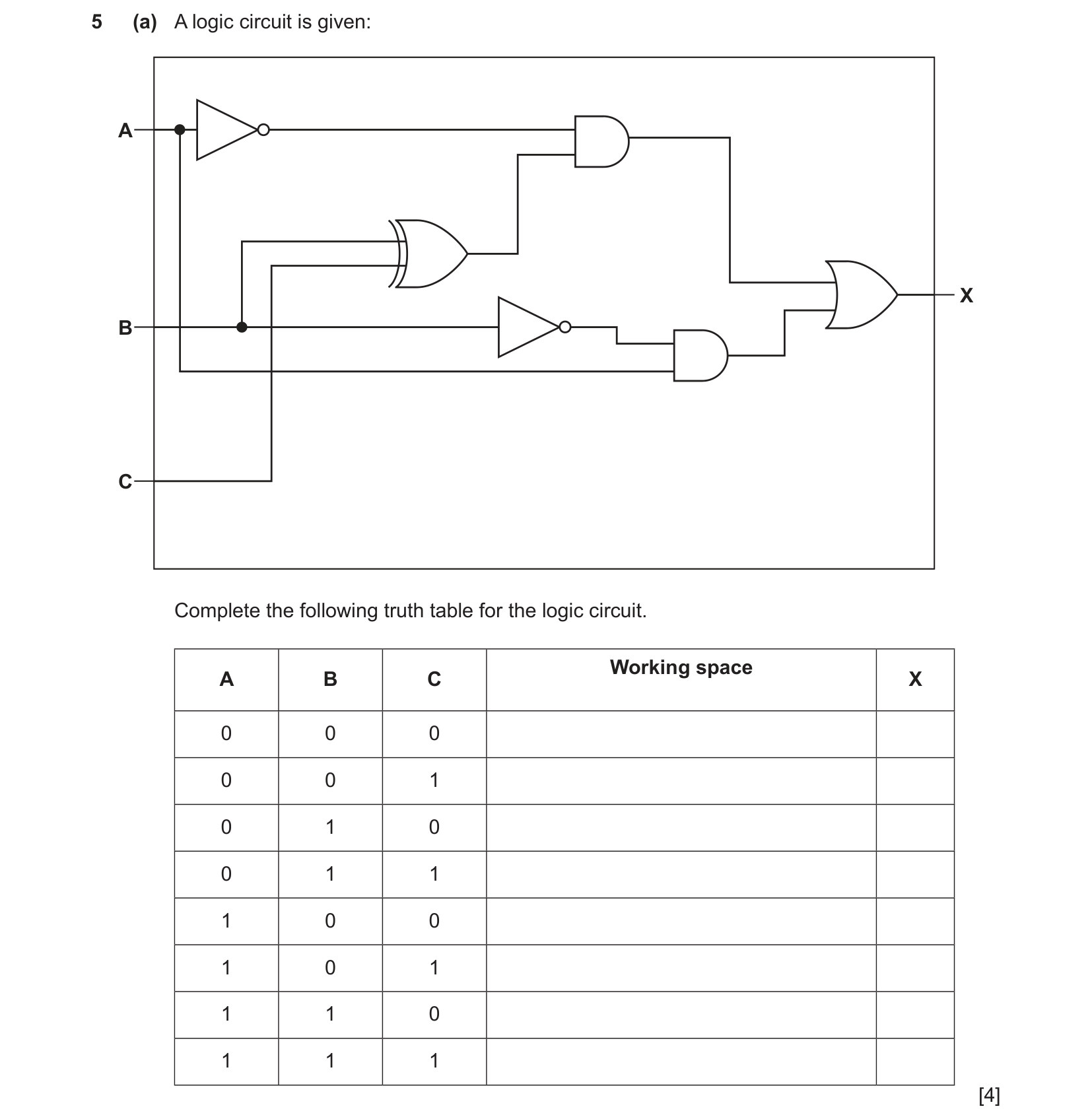

9608_s20_qp_11_sc_5.a

9608_s20_qp_11_sc_5.a Question Image

Answer

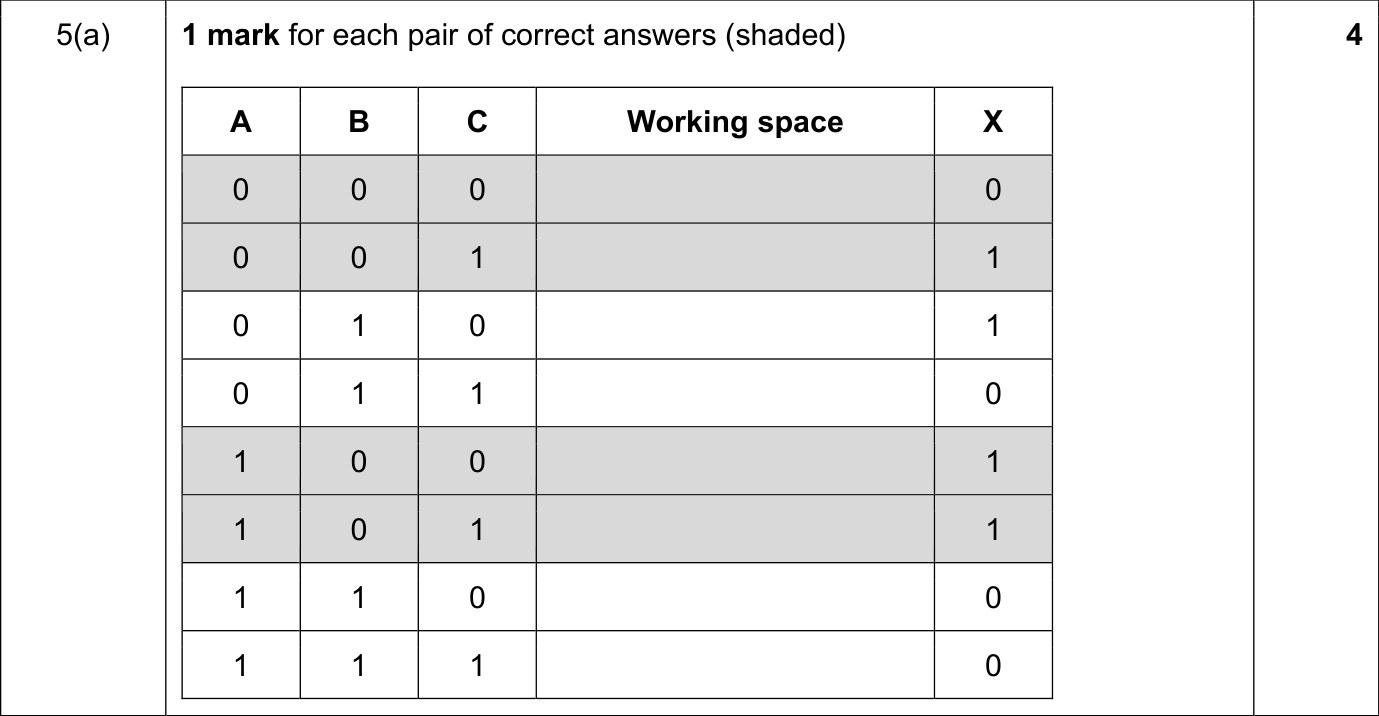

9608_s20_qp_11_sc_5.a Mark Scheme Image

9608_w19_qp_13_sc_5.b

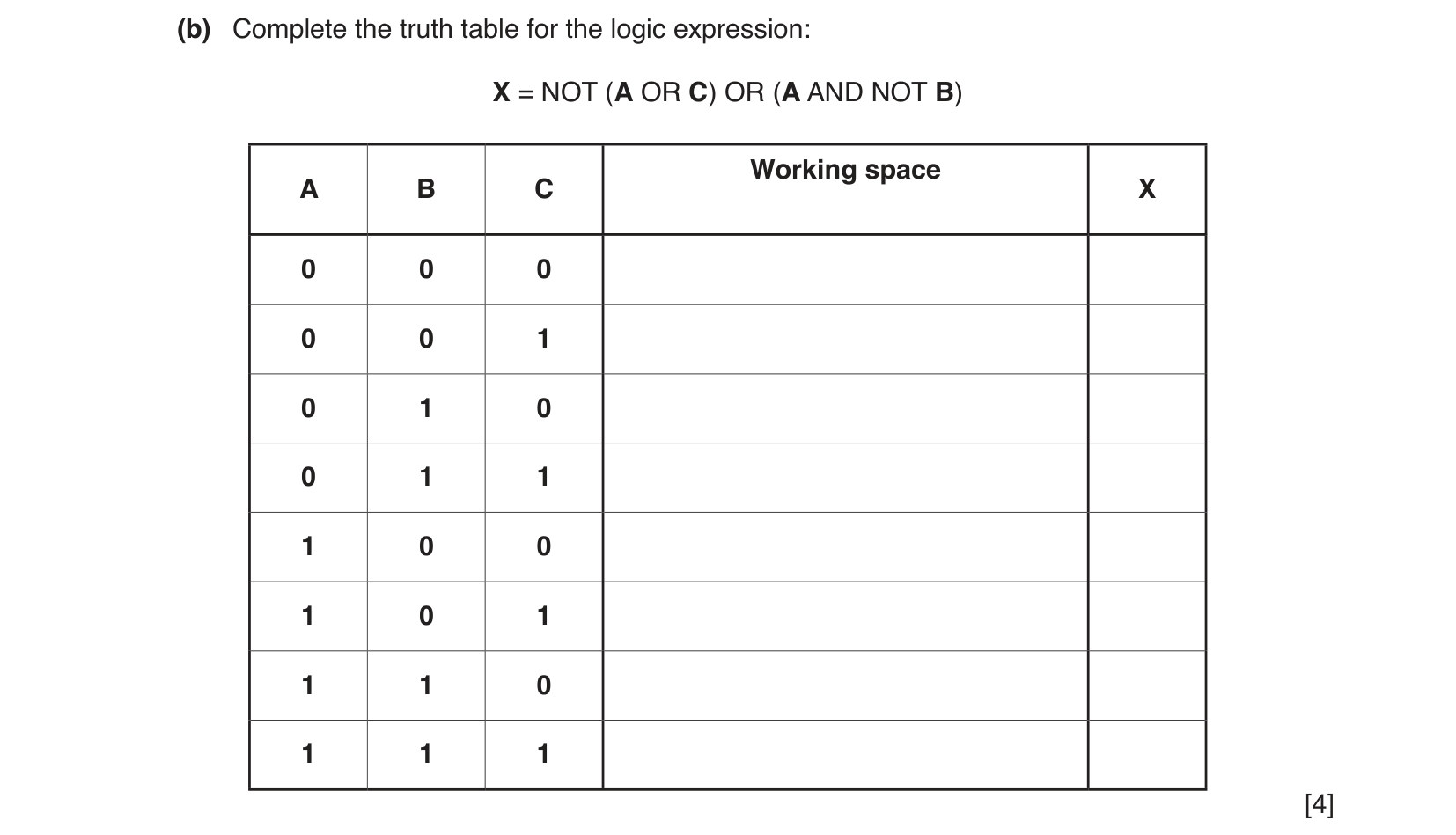

9608_w19_qp_13_sc_5.b Question Image

Answer

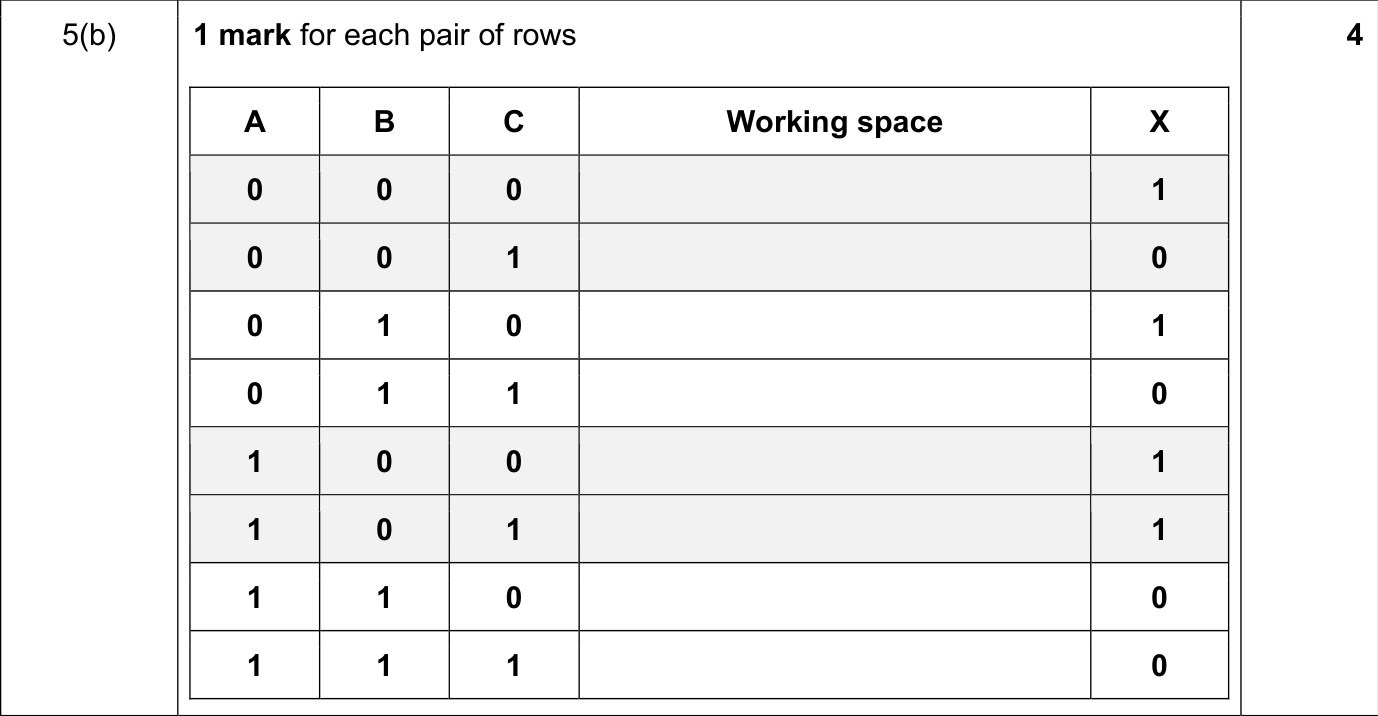

9608_w19_qp_13_sc_5.b Mark Scheme Image

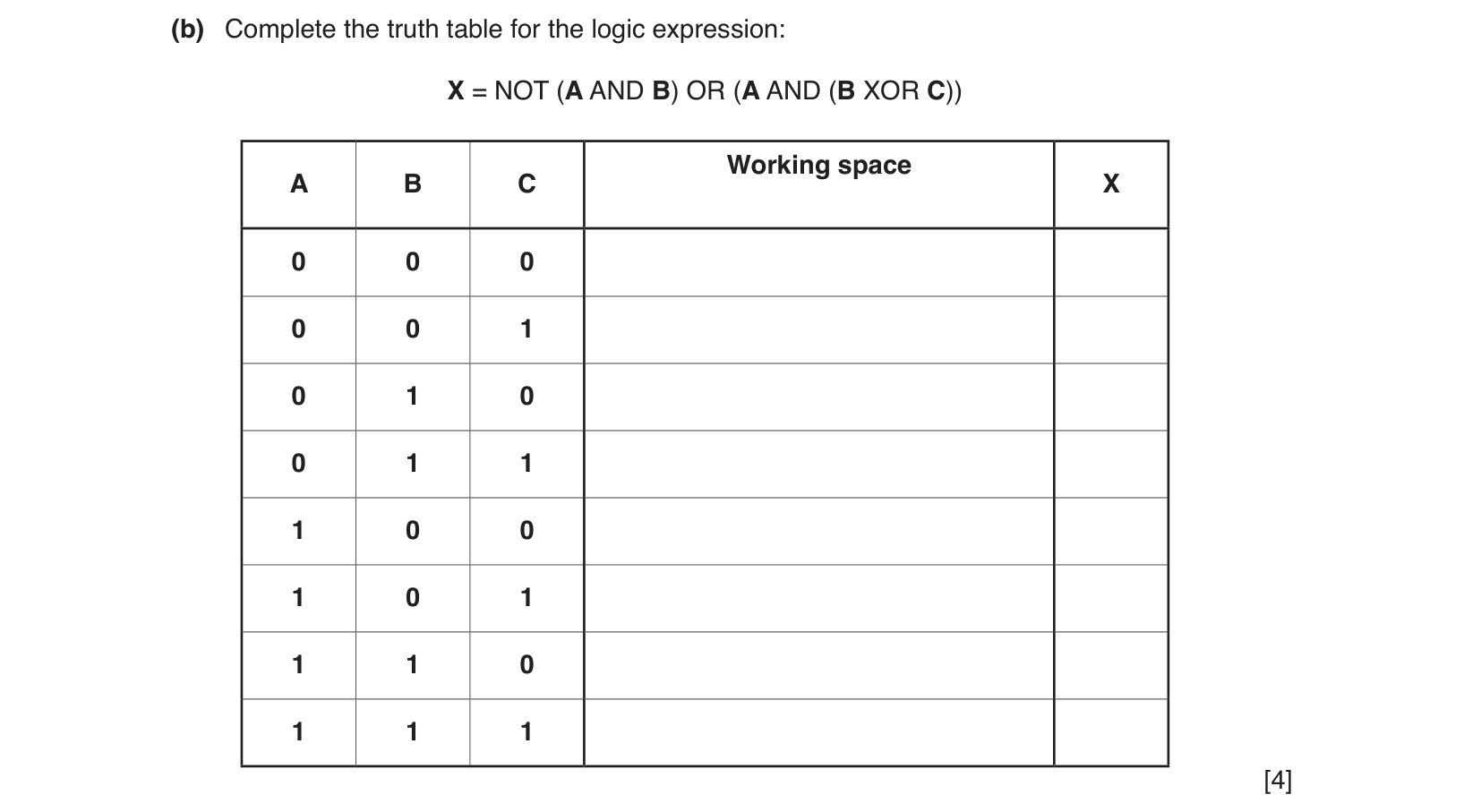

9608_w19_qp_12_sc_2.b

9608_w19_qp_12_sc_2.b Question Image

Answer

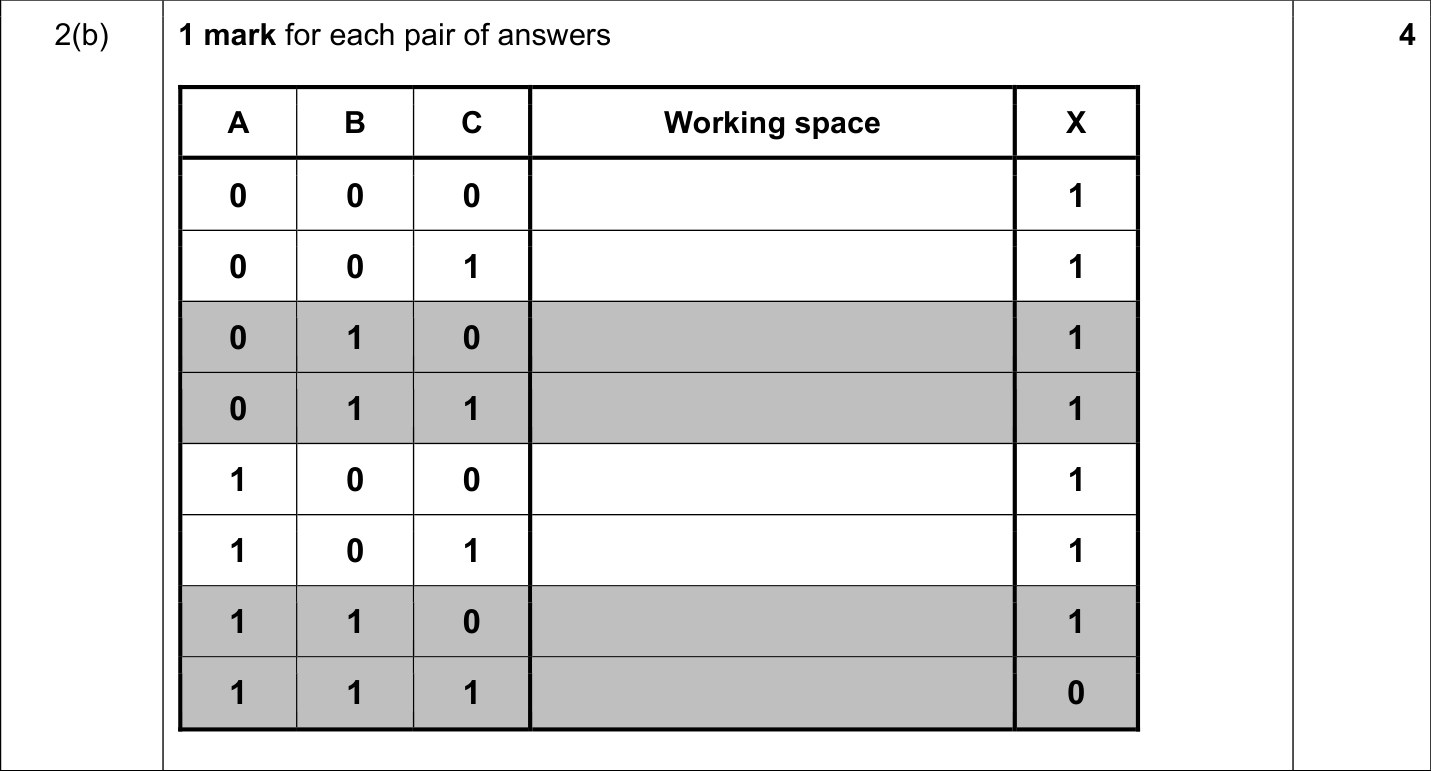

9608_w19_qp_12_sc_2.b Mark Scheme Image

9608_w19_qp_11_sc_3.b

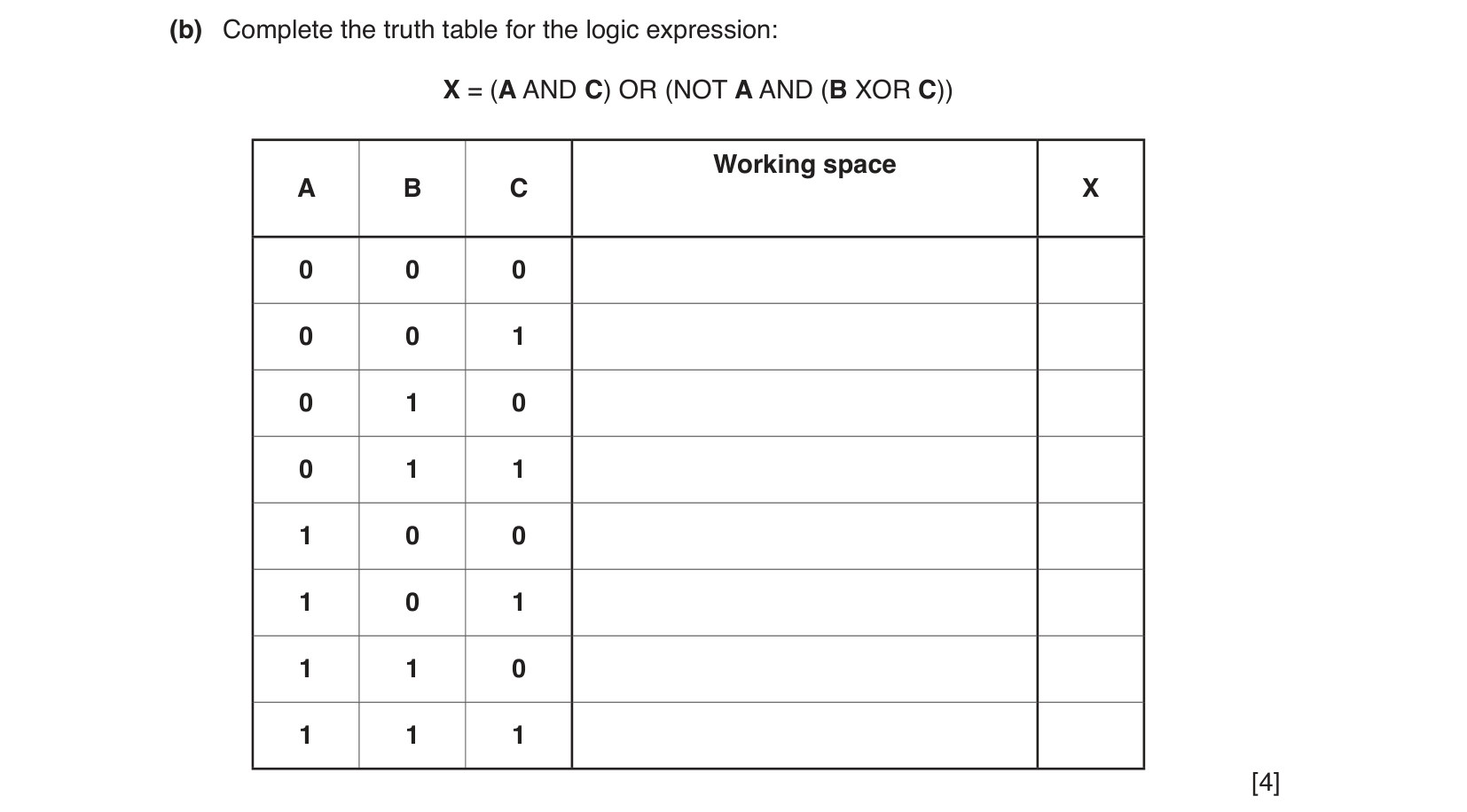

9608_w19_qp_11_sc_3.b Question Image

Answer

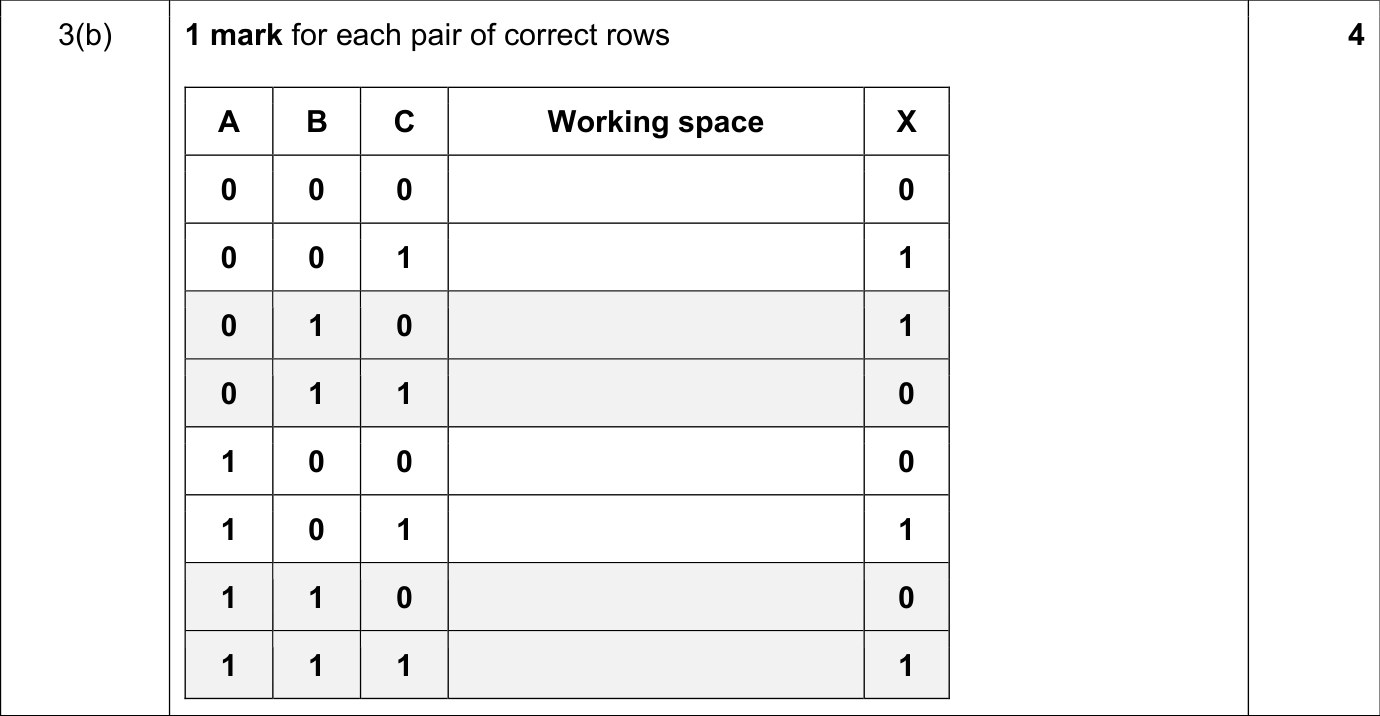

9608_w19_qp_11_sc_3.b Mark Scheme Image

9608_s19_qp_12_sc_6.b

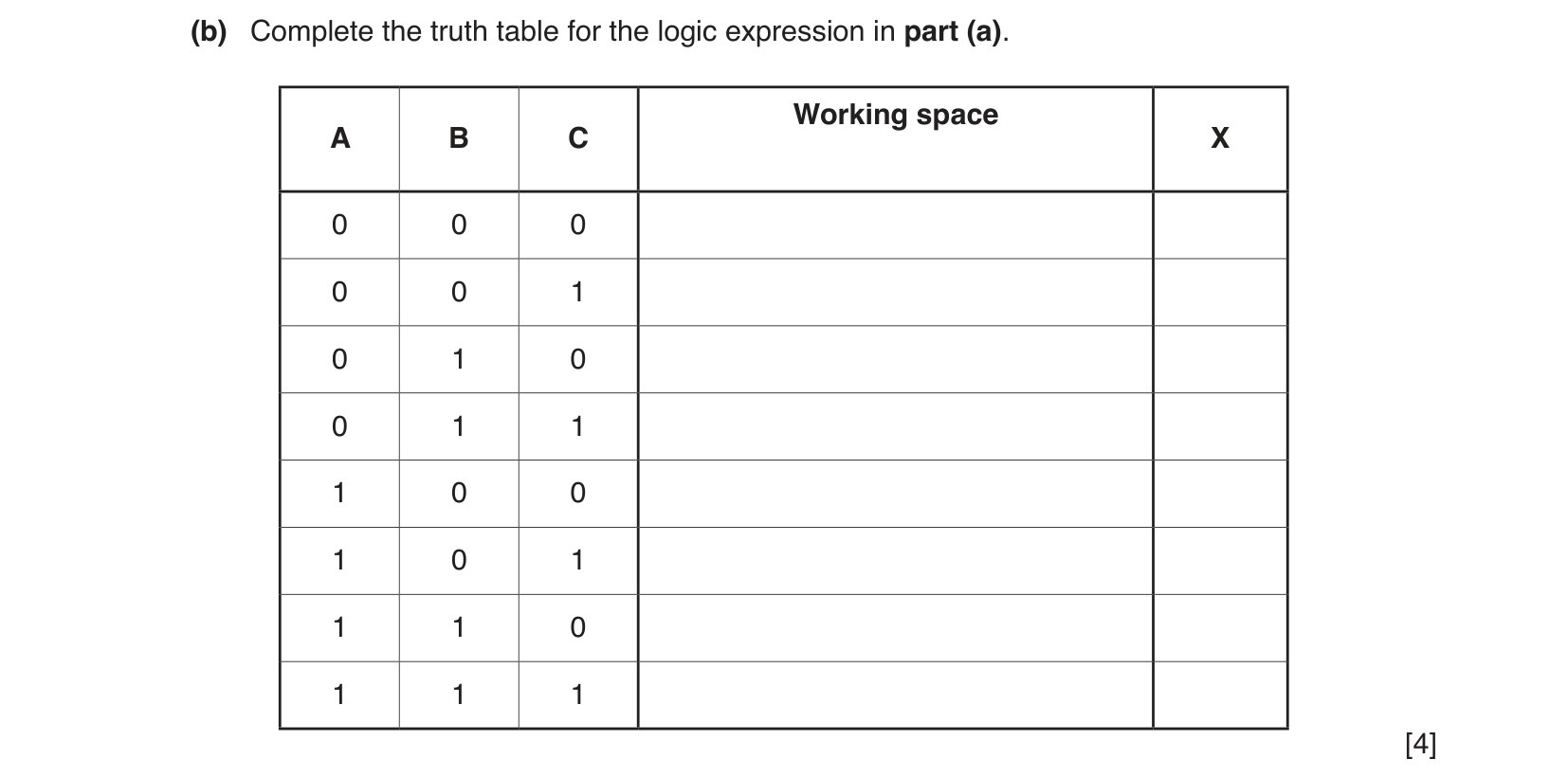

9608_s19_qp_12_sc_6.b Question Image

Answer

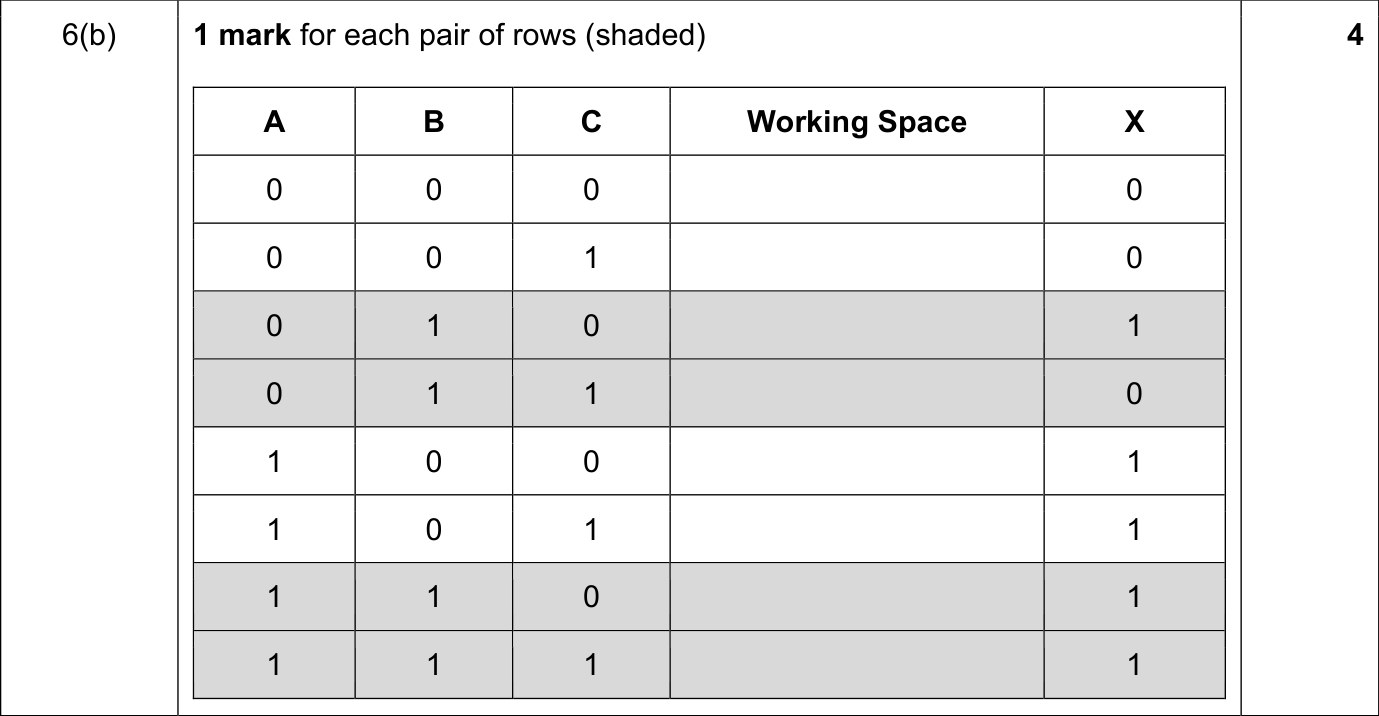

9608_s19_qp_12_sc_6.b Mark Scheme Image

9608_w18_qp_13_sc_8.b

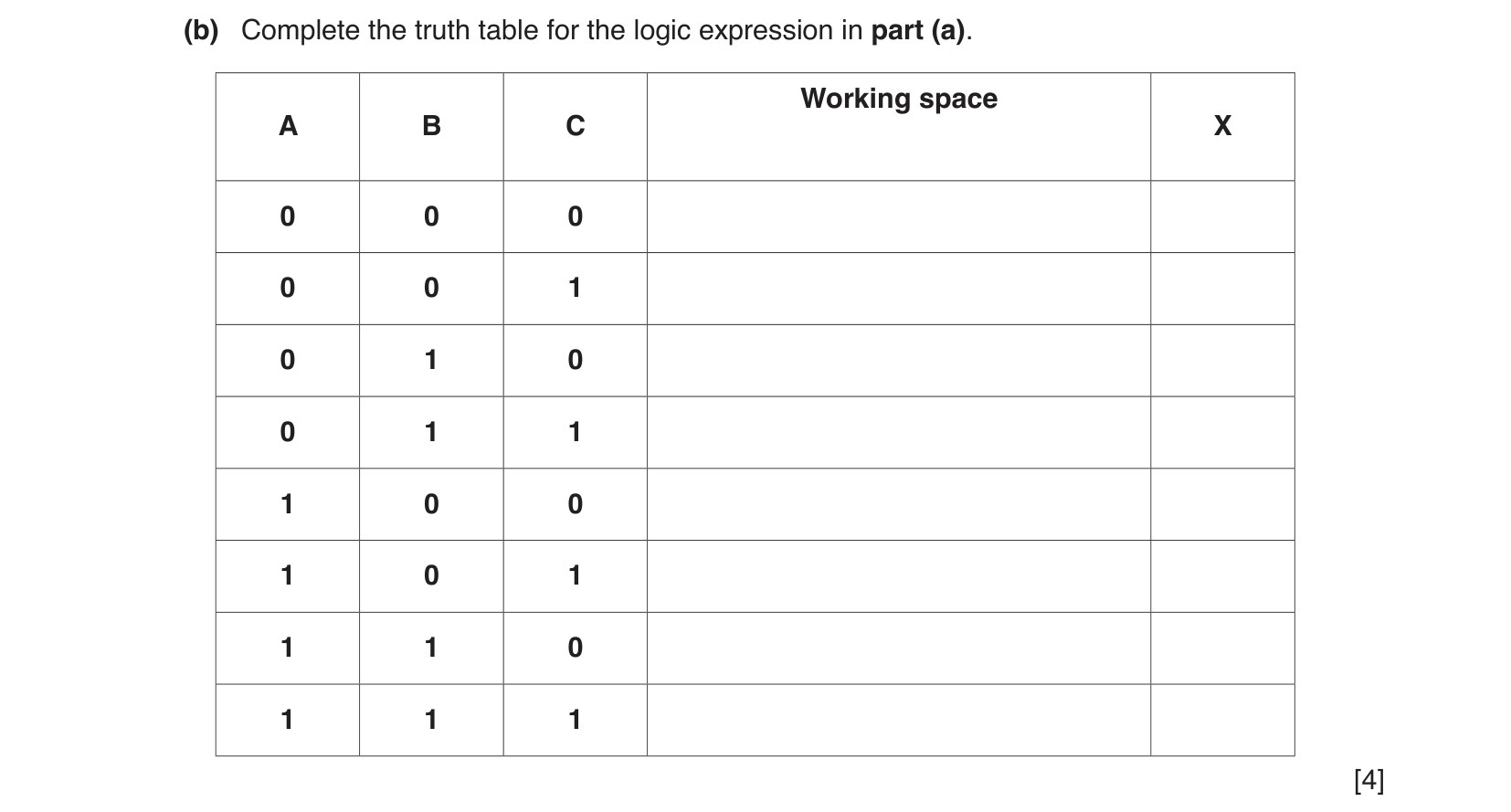

9608_w18_qp_13_sc_8.b Question Image

Answer

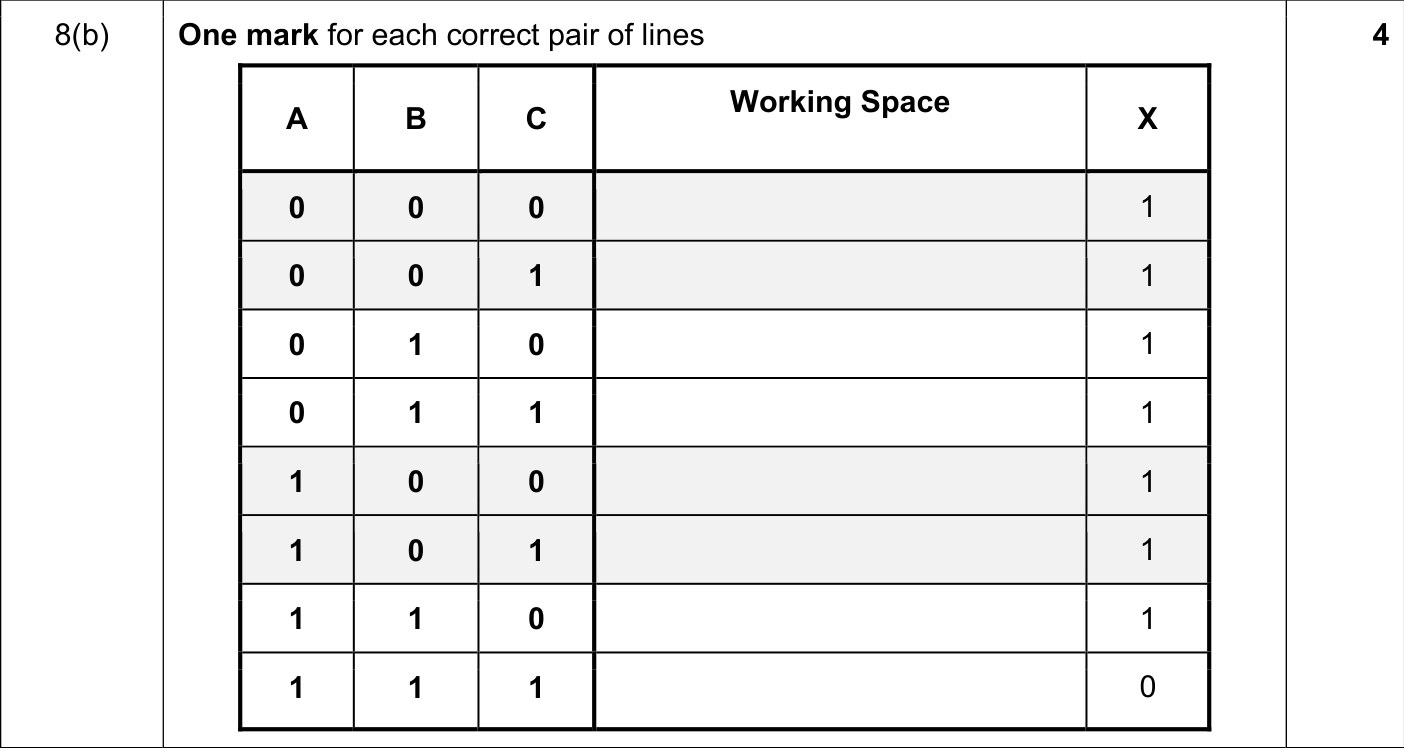

9608_w18_qp_13_sc_8.b Mark Scheme Image

9608_s18_qp_13_sc_5.b

9608_s18_qp_13_sc_5.b Question Image

Answer

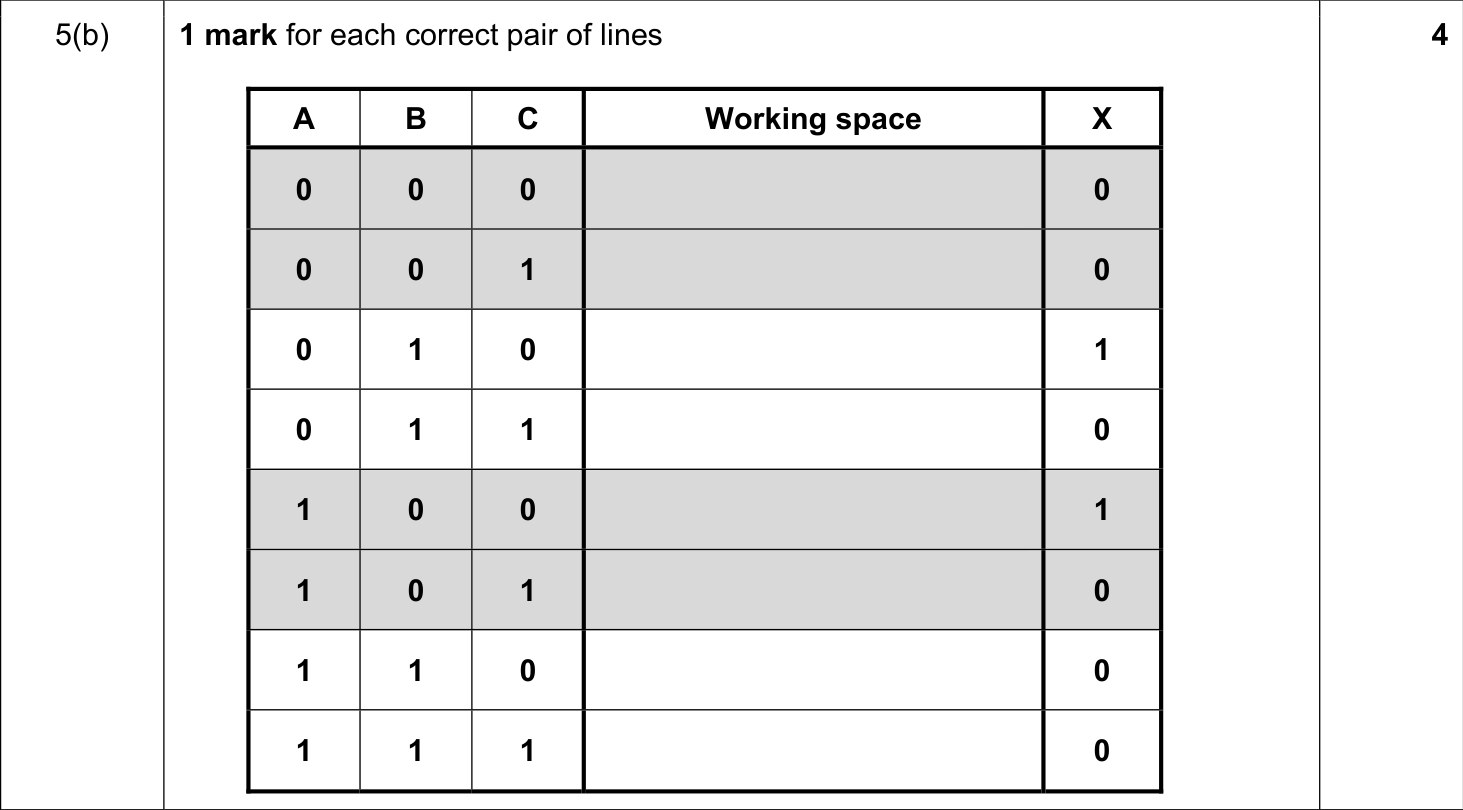

9608_s18_qp_13_sc_5.b Mark Scheme Image

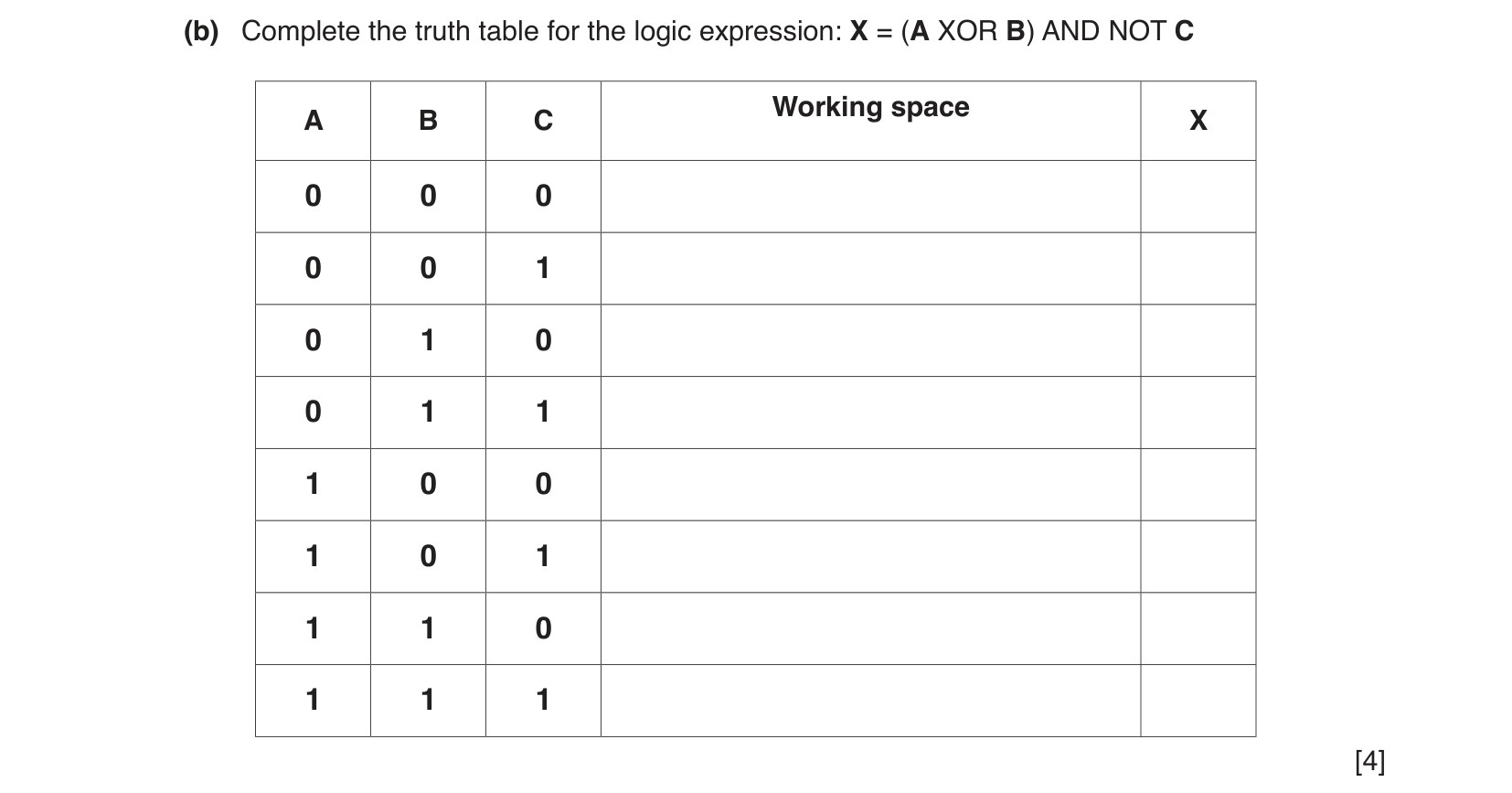

9608_s18_qp_12_sc_2.b

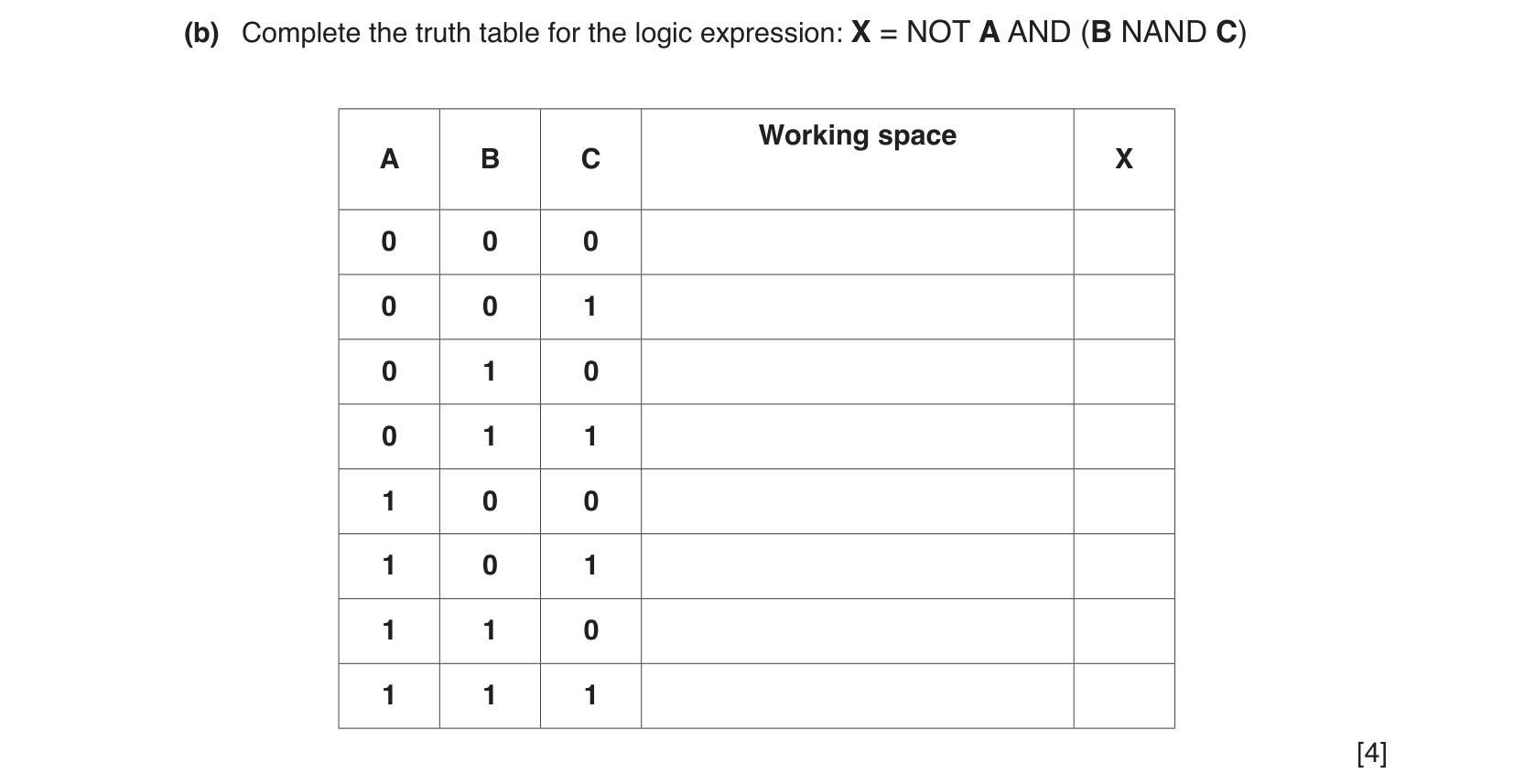

9608_s18_qp_12_sc_2.b Question Image

Answer

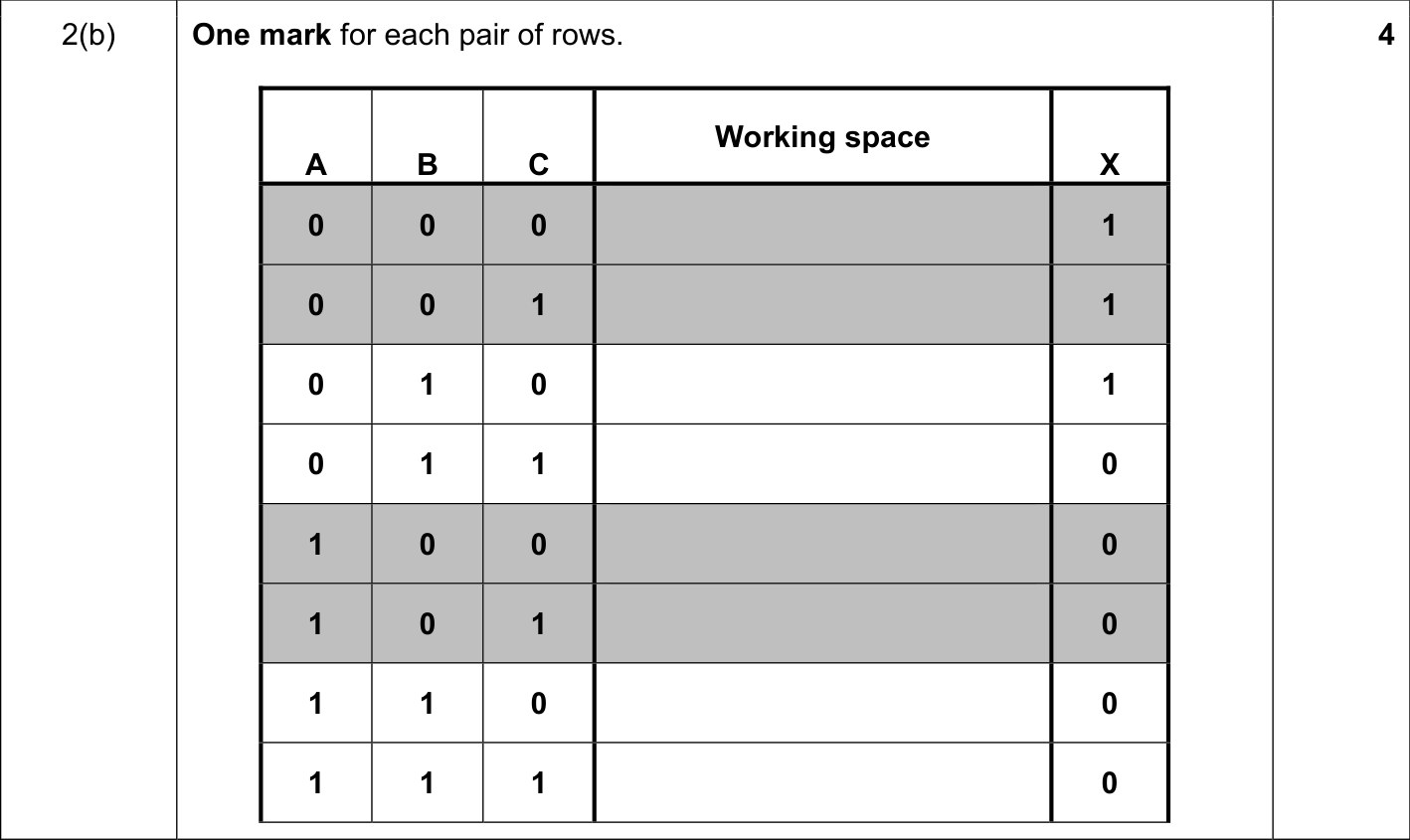

9608_s18_qp_12_sc_2.b Mark Scheme Image

9608_s18_qp_11_sc_4.b

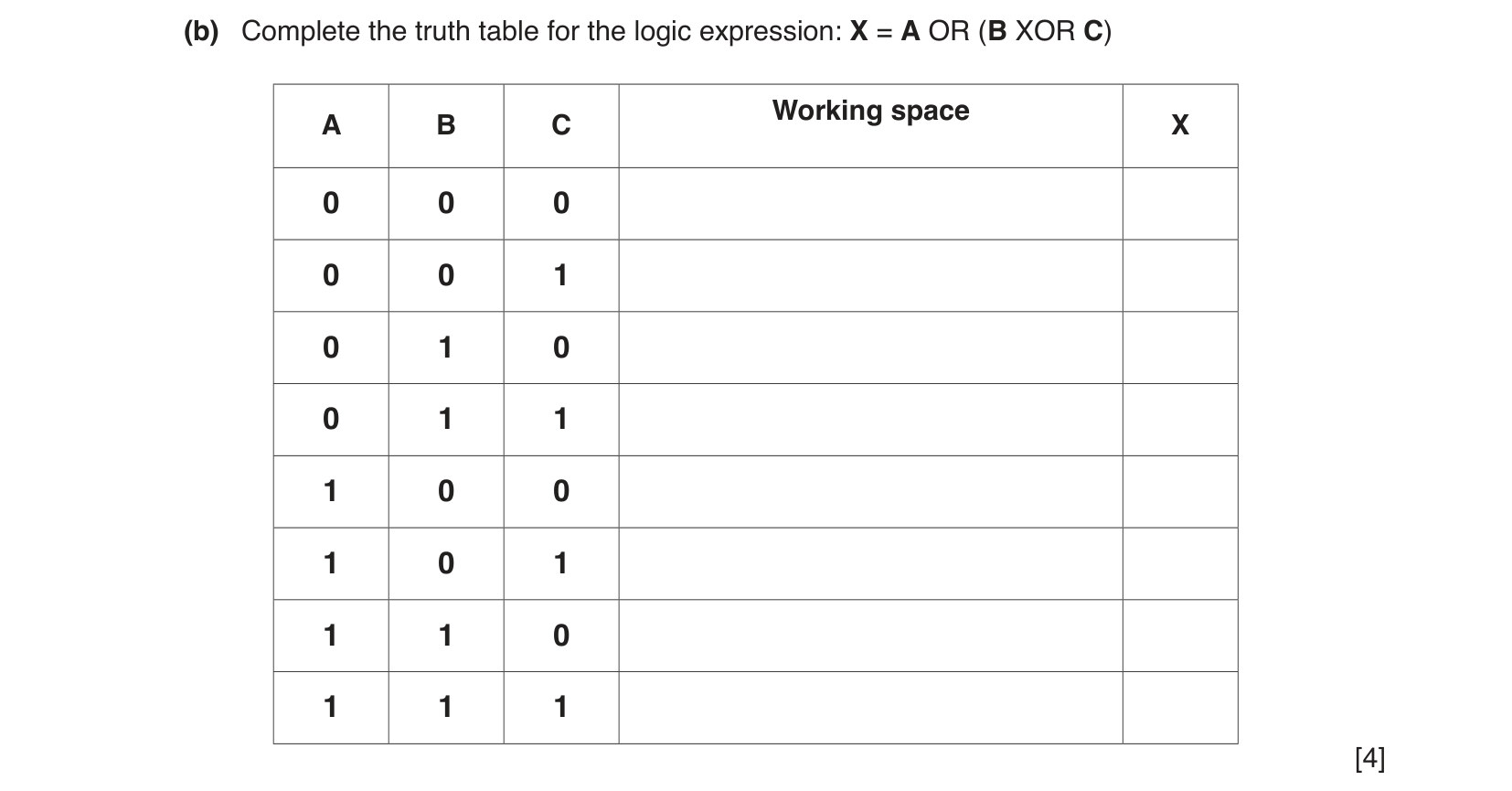

9608_s18_qp_11_sc_4.b Question Image

Answer

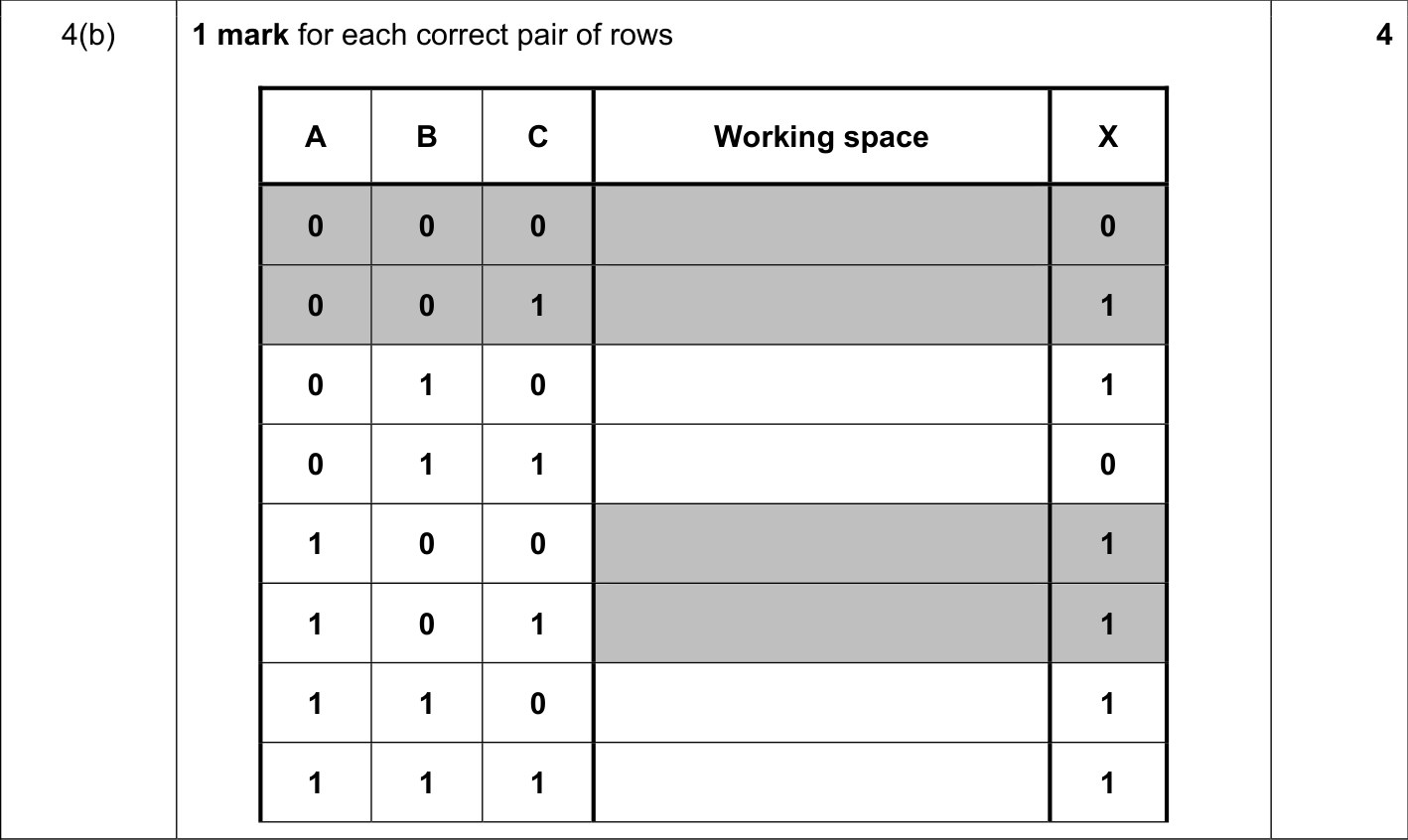

9608_s18_qp_11_sc_4.b Mark Scheme Image

9608_w16_qp_13_sc_5.iii

9608_w16_qp_13_sc_5.iii Question Image

Answer

9608_w16_qp_13_sc_5.iii Mark Scheme Image

9608_w16_qp_12_sc_1.b

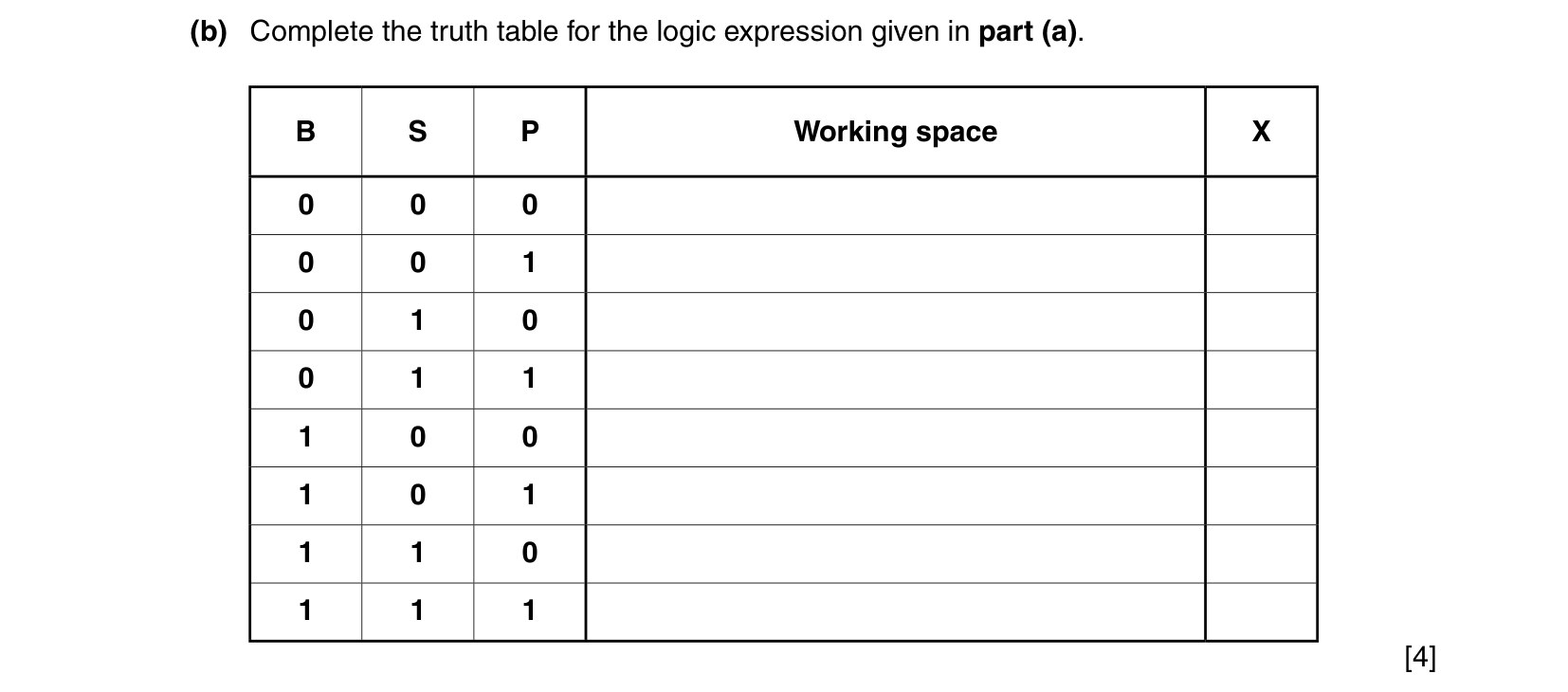

9608_w16_qp_12_sc_1.b Question Image

Answer

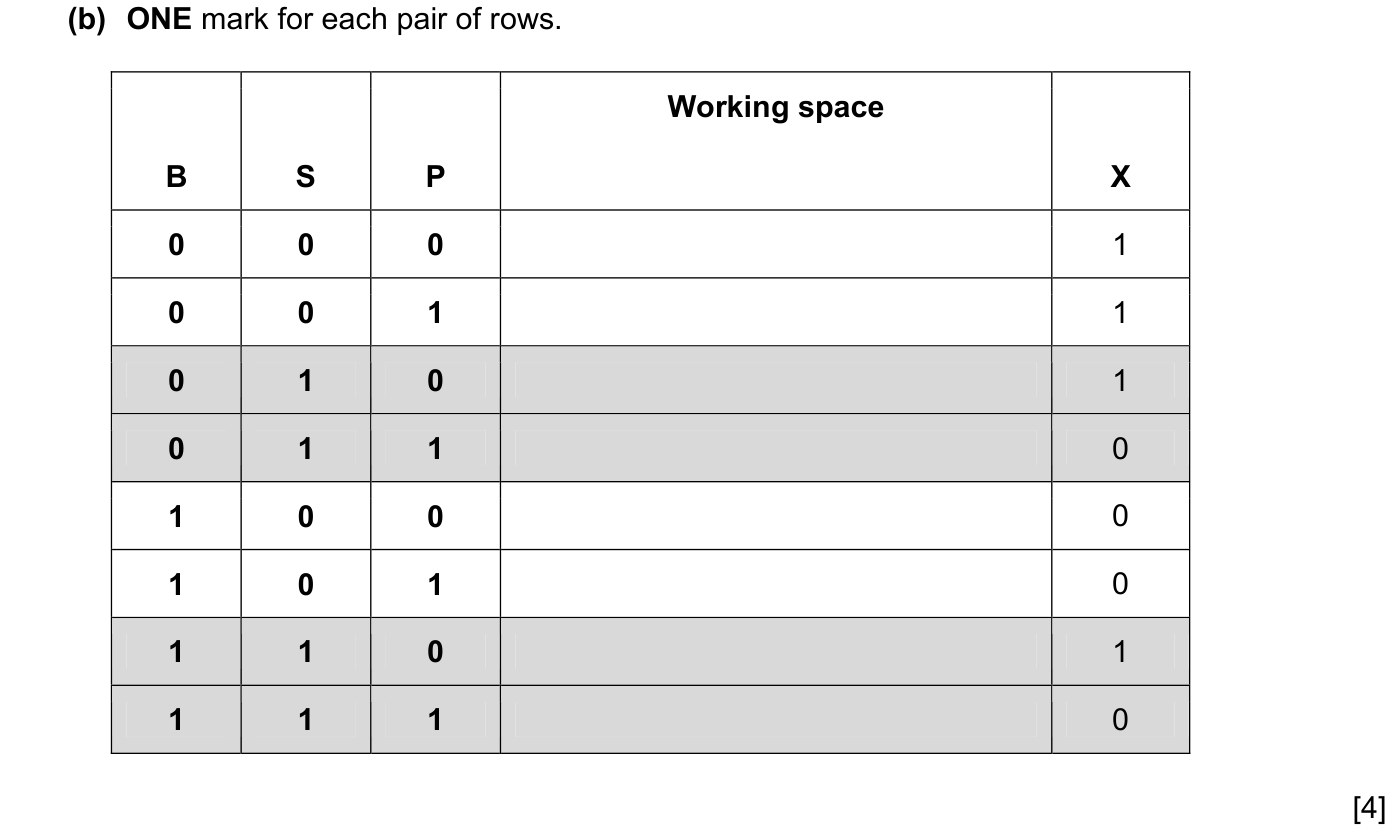

9608_w16_qp_12_sc_1.b Mark Scheme Image

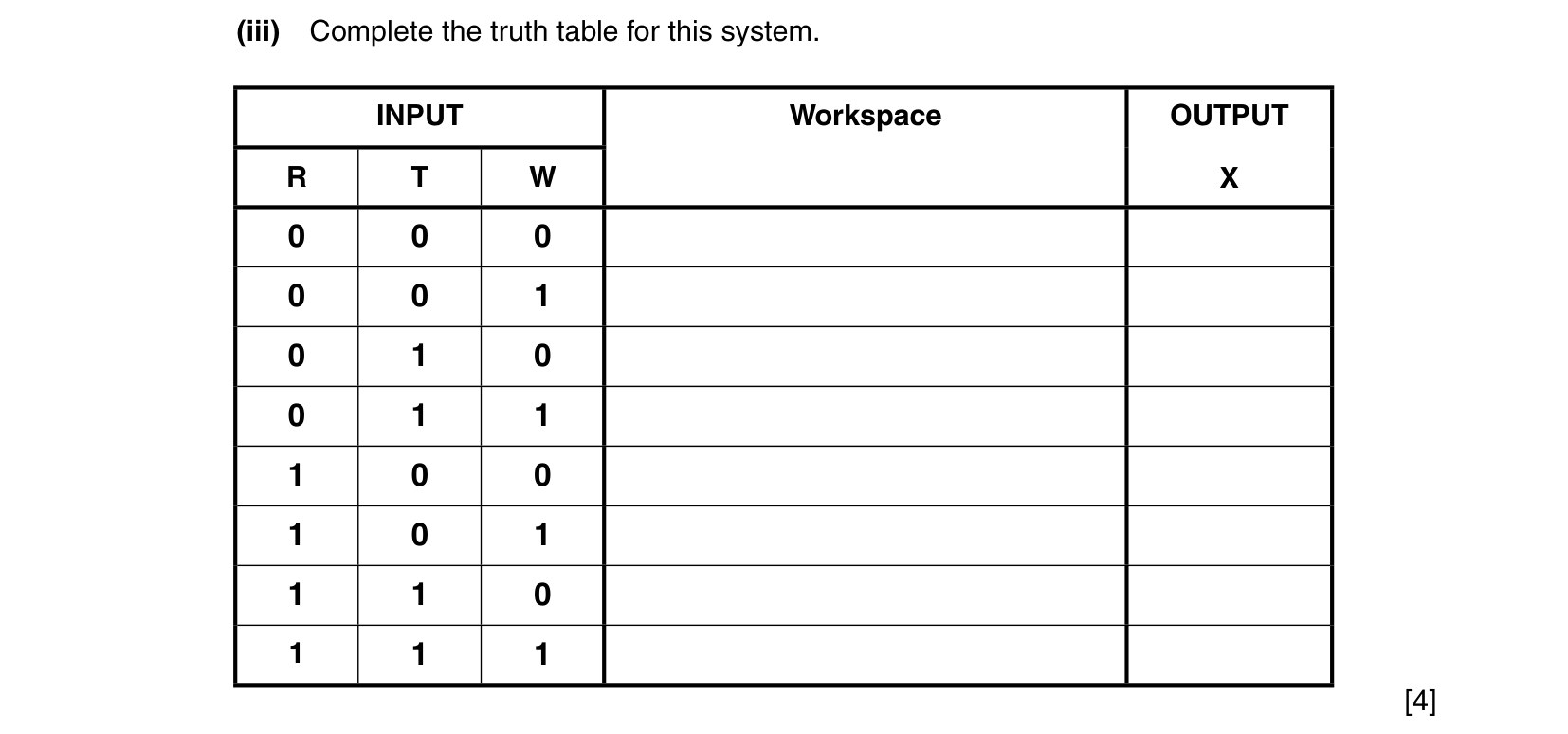

9608_w16_qp_11_sc_5.iii

9608_w16_qp_11_sc_5.iii Question Image

Answer

9608_w16_qp_11_sc_5.iii Mark Scheme Image

9608_s15_qp_13_sc_6.b

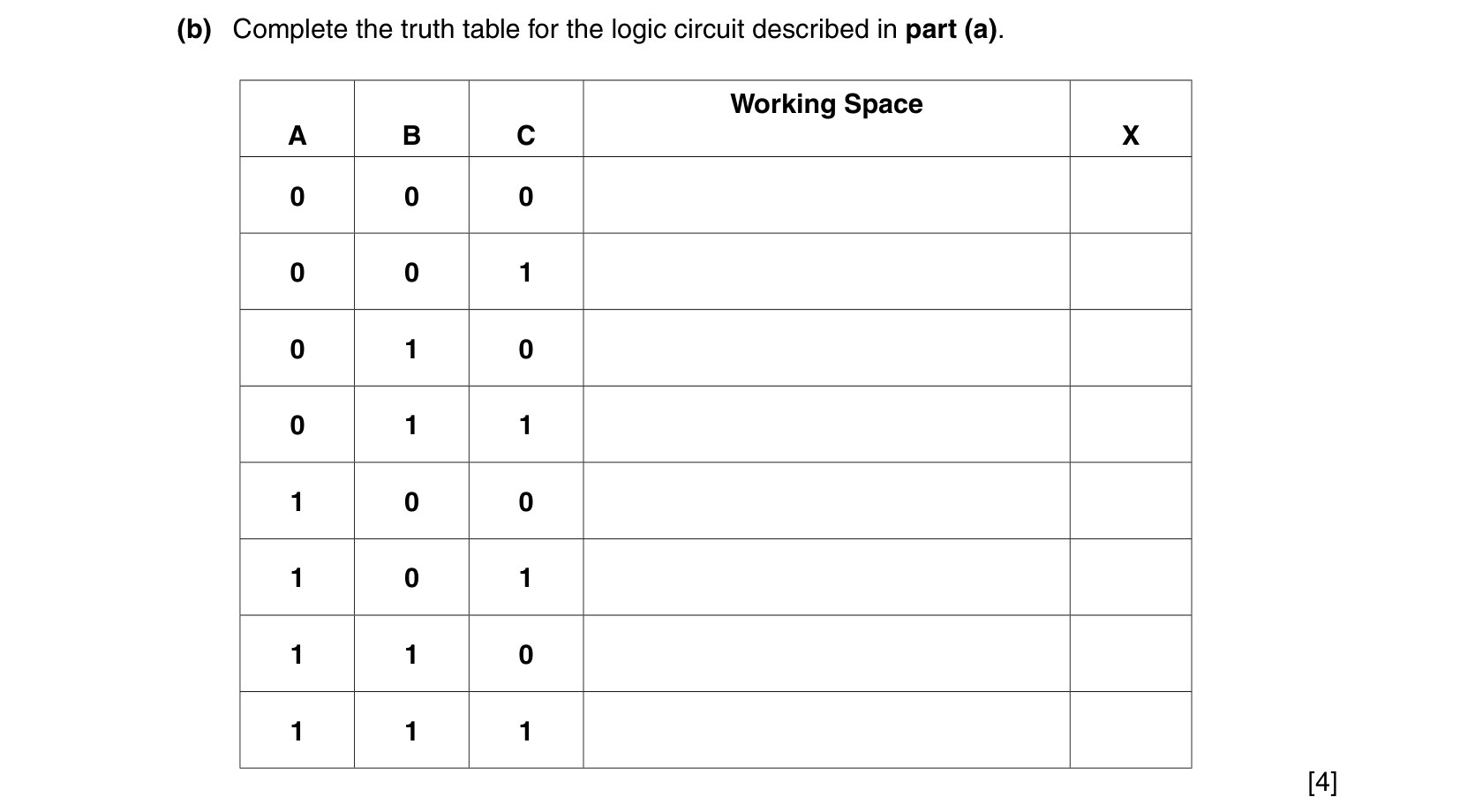

9608_s15_qp_13_sc_6.b Question Image

Answer

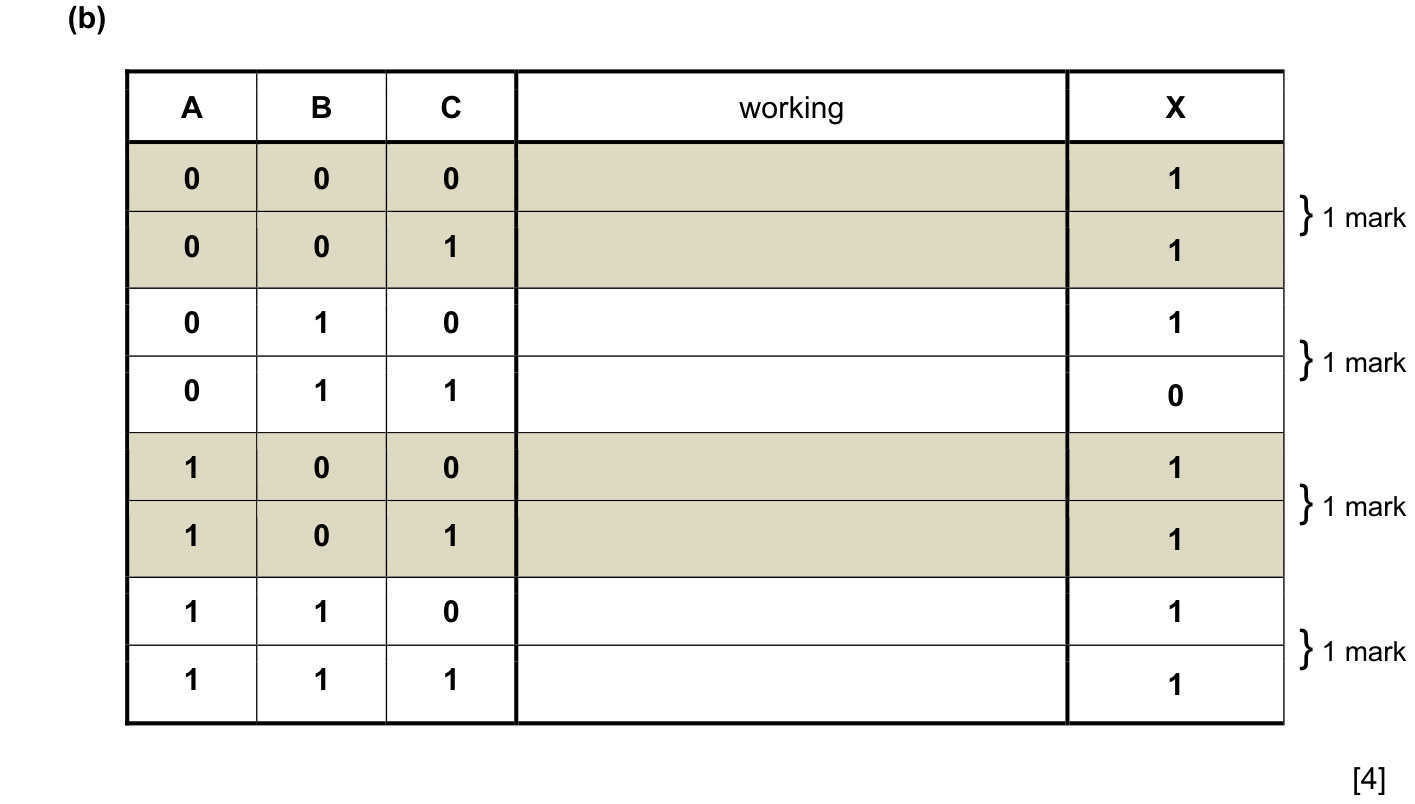

9608_s15_qp_13_sc_6.b Mark Scheme Image

9608_s15_qp_12_sc_7.b

9608_s15_qp_12_sc_7.b Question Image

Answer

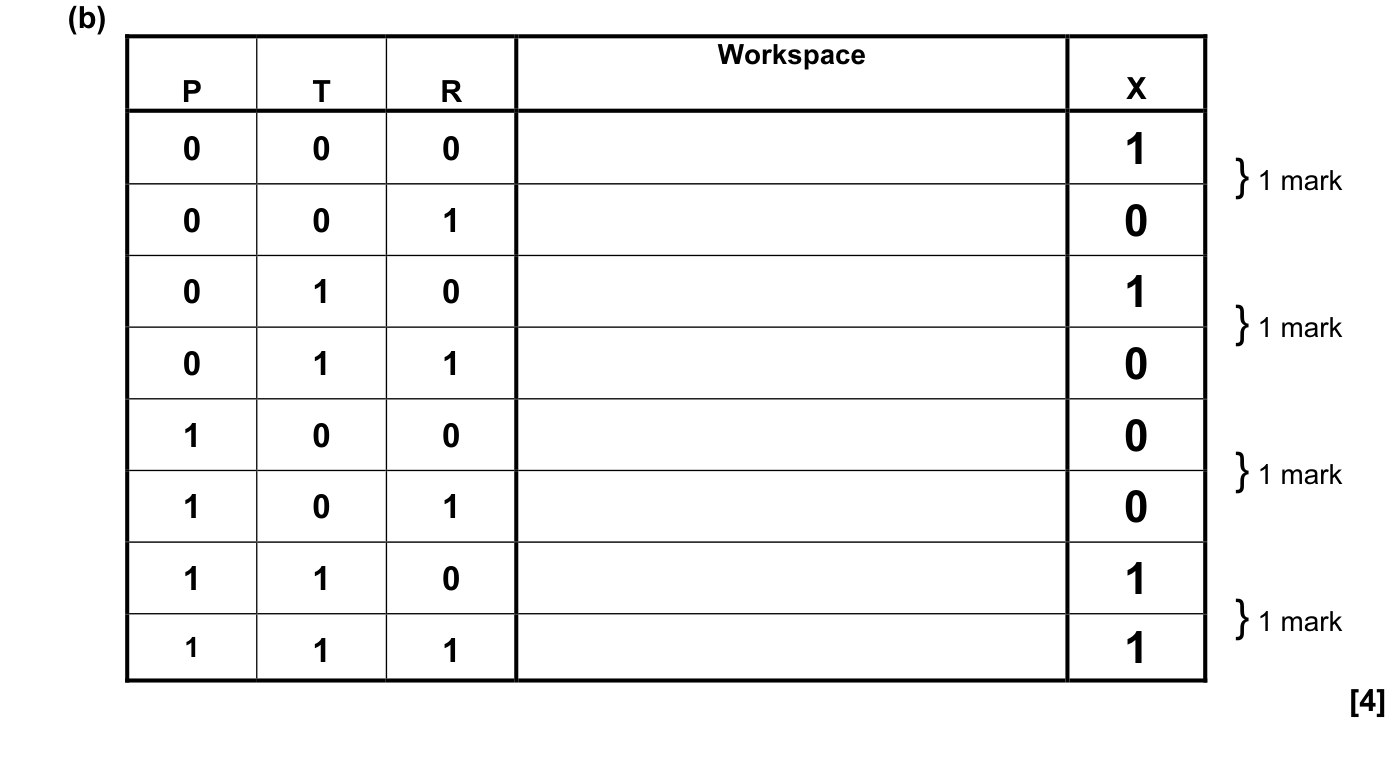

9608_s15_qp_12_sc_7.b Mark Scheme Image

9608_s15_qp_11_sc_7.b

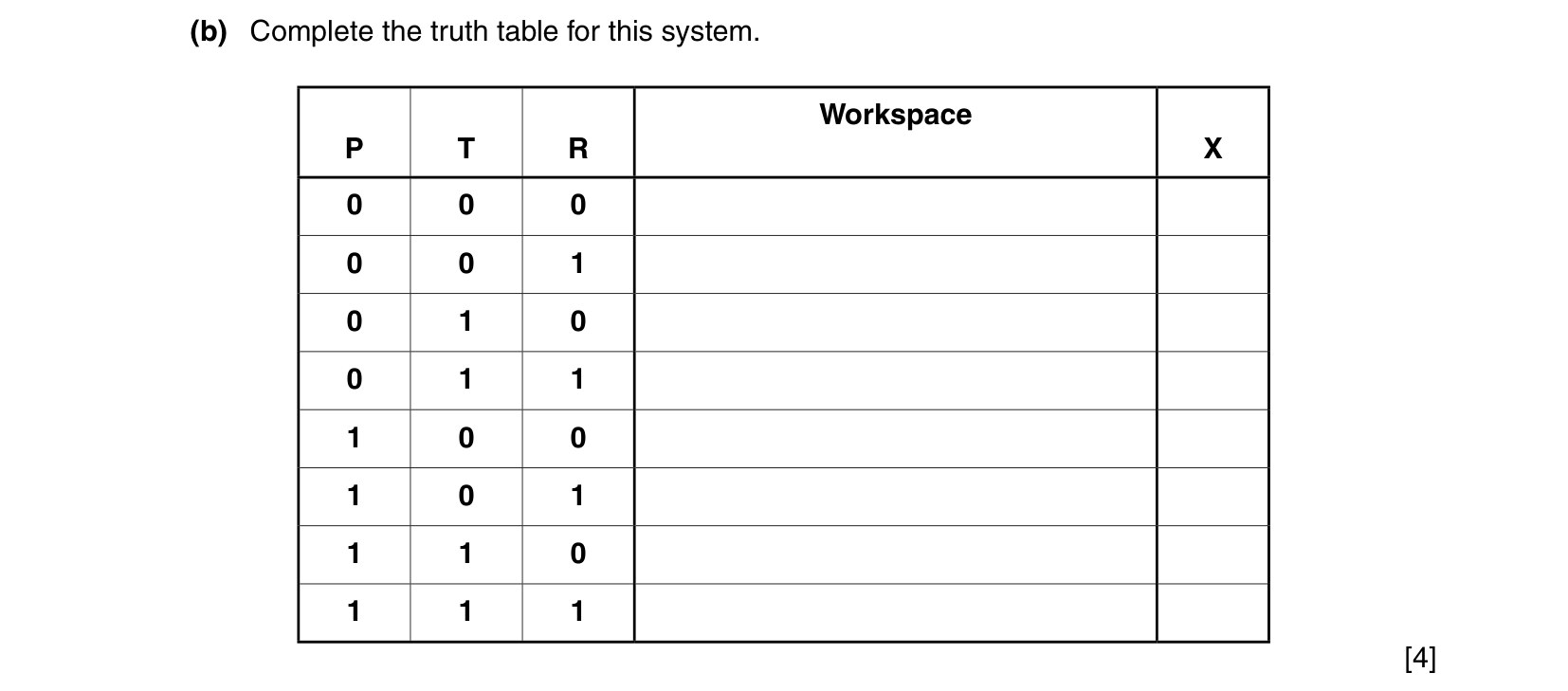

9608_s15_qp_11_sc_7.b Question Image

Answer

9608_s15_qp_11_sc_7.b Mark Scheme Image

Construct a logic expression

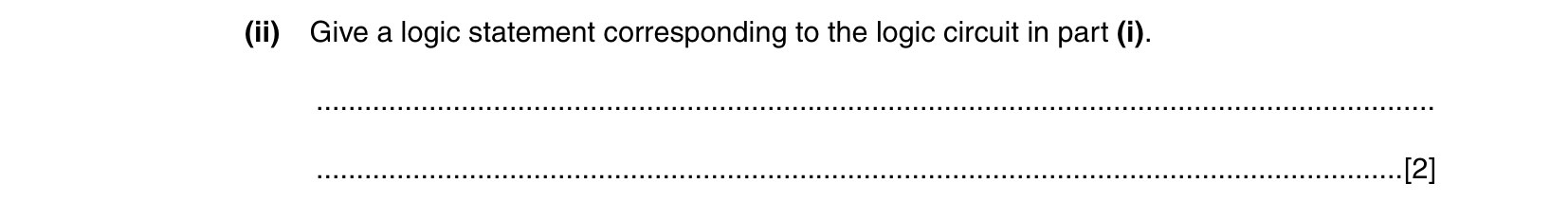

9608_w16_qp_13_sc_5.ii

9608_w16_qp_13_sc_5.ii Question Image

Answer

9608_w16_qp_13_sc_5.ii Mark Scheme Image

9608_w16_qp_11_sc_5.ii

9608_w16_qp_11_sc_5.ii Question Image

Answer

9608_w16_qp_11_sc_5.ii Mark Scheme Image

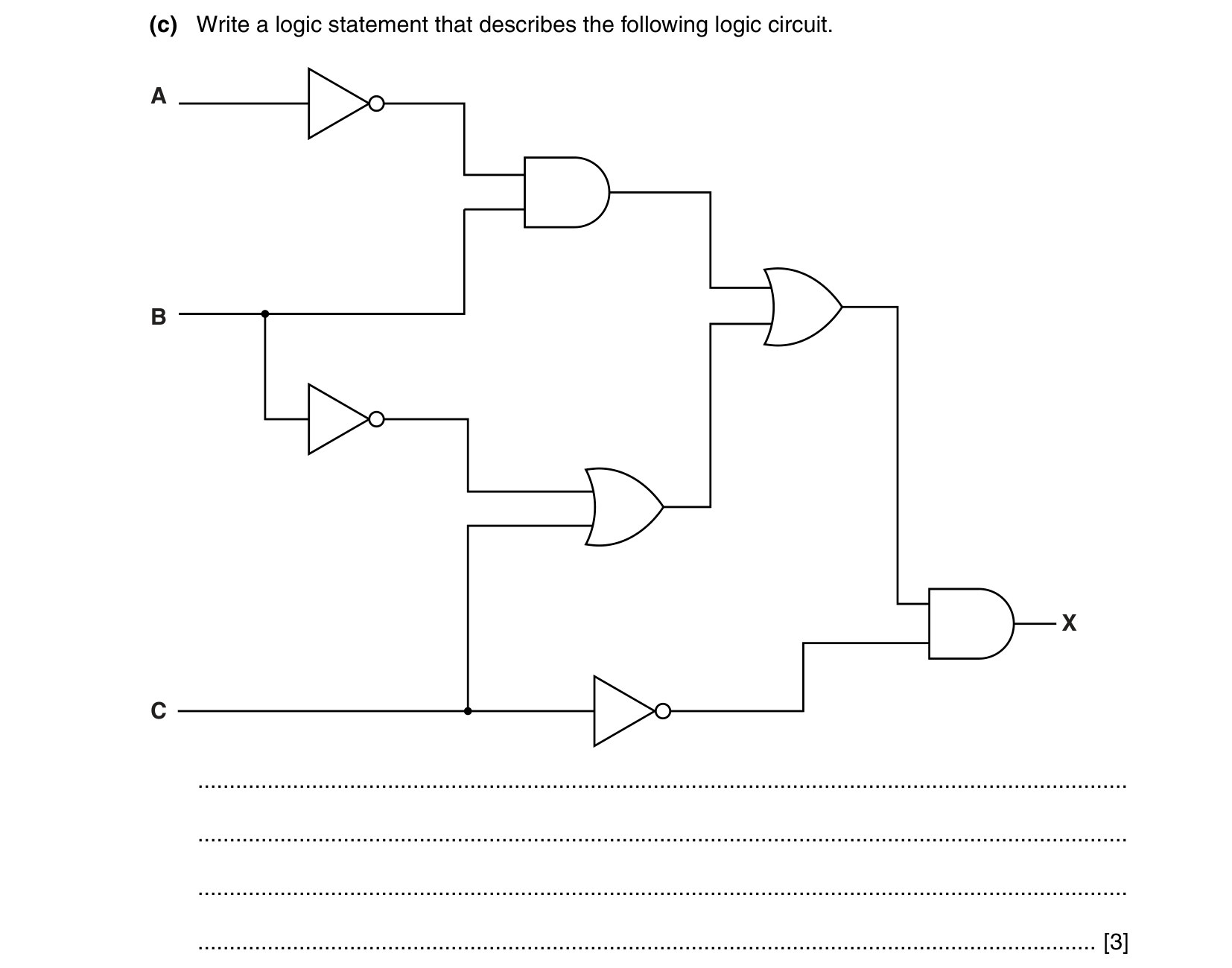

9608_s15_qp_13_sc_6.c

9608_s15_qp_13_sc_6.c Question Image

Answer

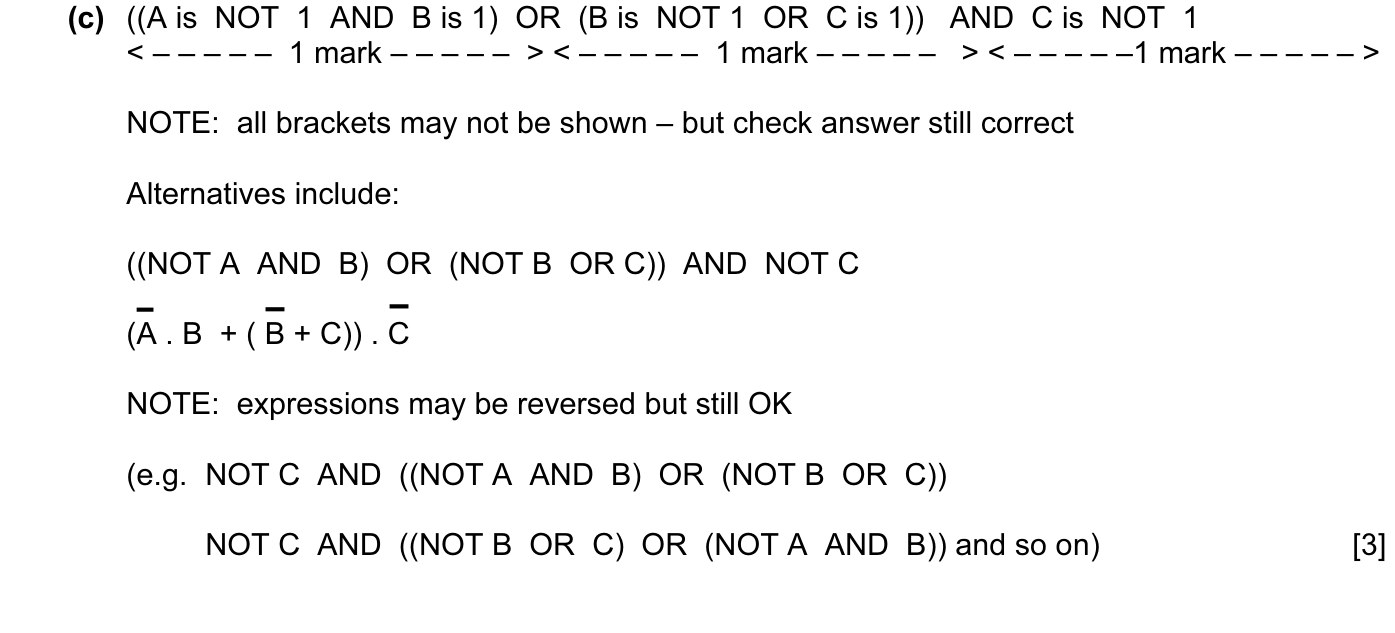

9608_s15_qp_13_sc_6.c Mark Scheme Image
